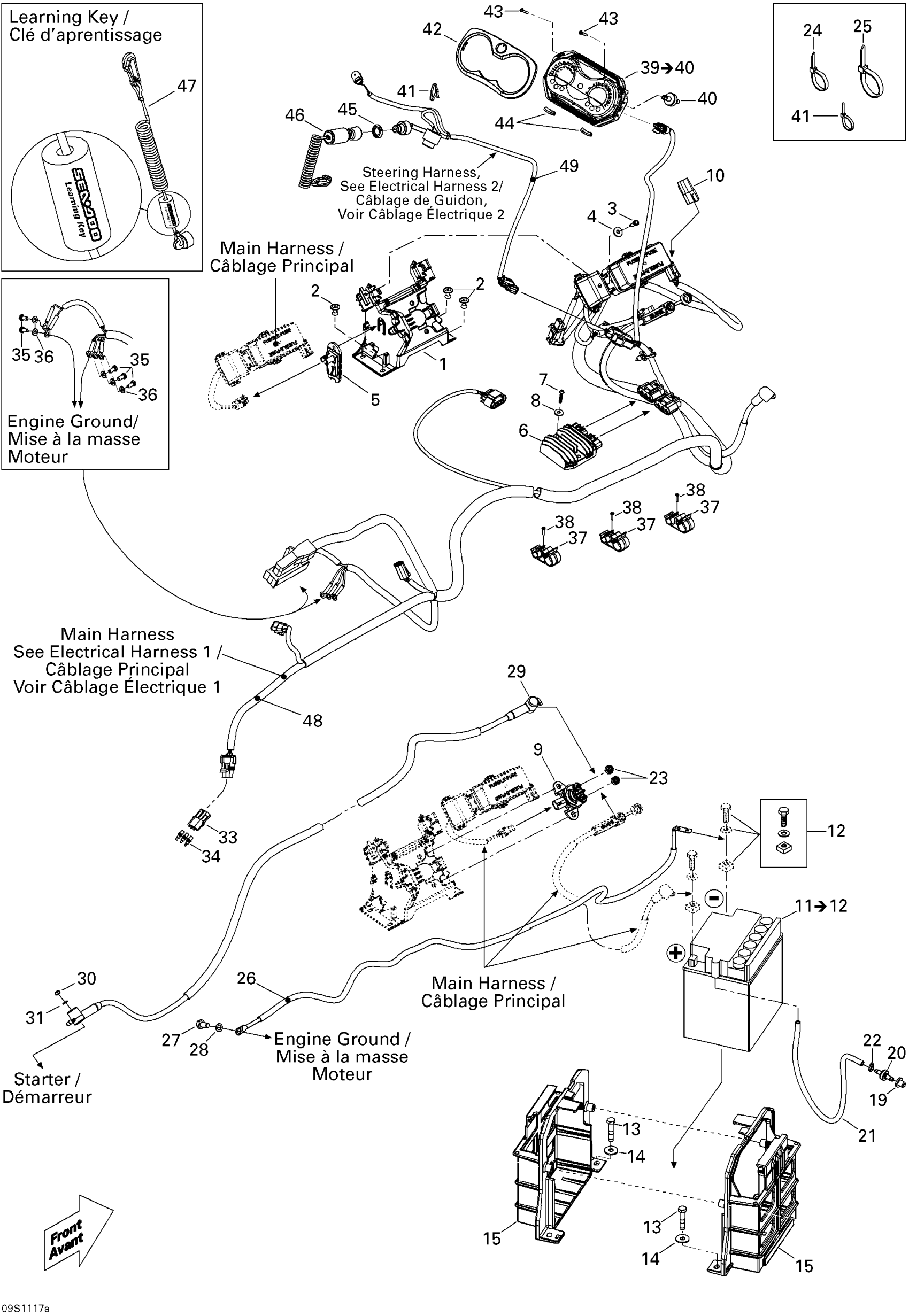

Sea-doo GTS Pro 130, 2011 Electrical System Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

Pop Rivet 3/16"

293150123

$3.43

3

Hex. Screw 10-14 X 7/8”

211000023

$2.91

4

Flat Washer M6, Stainless

234062600

$0.64

5

Interrupter T.O.P.S.

278001992

$66.27

6

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

7

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.64

9

Starter Relay

278003012

$35.07

10

Diagnostic Connector

278002704

$15.57

11

Battery, 30 Amperes

278001882

$152.72

12

Battery Bolt Kit

250000282

$2.95

13

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

14

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Battery Support

278003306

$14.92

19

Grommet

293720029

$1.13

20

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

21

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

22

Tie Wrap 94 mm | 4X4

293750001

$0.83

23

Elastic Stop Nut M6, Brass

232561200

$3.51

24

Tie-Rap 180 mm

414115200

$0.09

25

Tie Wrap 368 mm

293750008

$0.85

26

GROUND CABLE ASS'Y - Call your local BRP dealership

278002177

Unavailable

27

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

28

Flat Washer 10 mm, Stainless

234000600

$1.07

29

STARTER CABLE - Call your local BRP dealership

278002267

Unavailable

30

Elastic Stop Nut M6, Brass

232561200

$3.51

31

Stainless Flat Washer M6

234061600

$0.25

33

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

34

Wire Seal

278000216

$2.55

35

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

36

Stainless Flat Washer M6

234061600

$0.25

37

RETAINER - Call your local BRP dealership

275500553

Unavailable

38

Hex. Flange Screw K40 X 16

241141660

$1.25

39

Digital Multifunction Gauge | Includes 39 to 40

278002273

$978.22

40

Check Valve

275500398

$8.57

41

Tie Wrap 142 mm

293750002

$0.88

42

Gauge Bezel, Black

278002135

$22.07

43

Hex. Flange Screw K40 X 25

241142560

$2.17

44

TRIM - Call your local BRP dealership

293830113

Unavailable

45

Safety Nut (DESS Switch)

278002963

$2.72

46

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

47

SAFETY LANYARD, LEARNING KEY - Call your local BRP dealership

278002406

Unavailable

48

Main Harness | Includes 1 to 2025

278002272

$703.27

49

Steering Harness Ass’y | SERV

278002383

Unavailable
