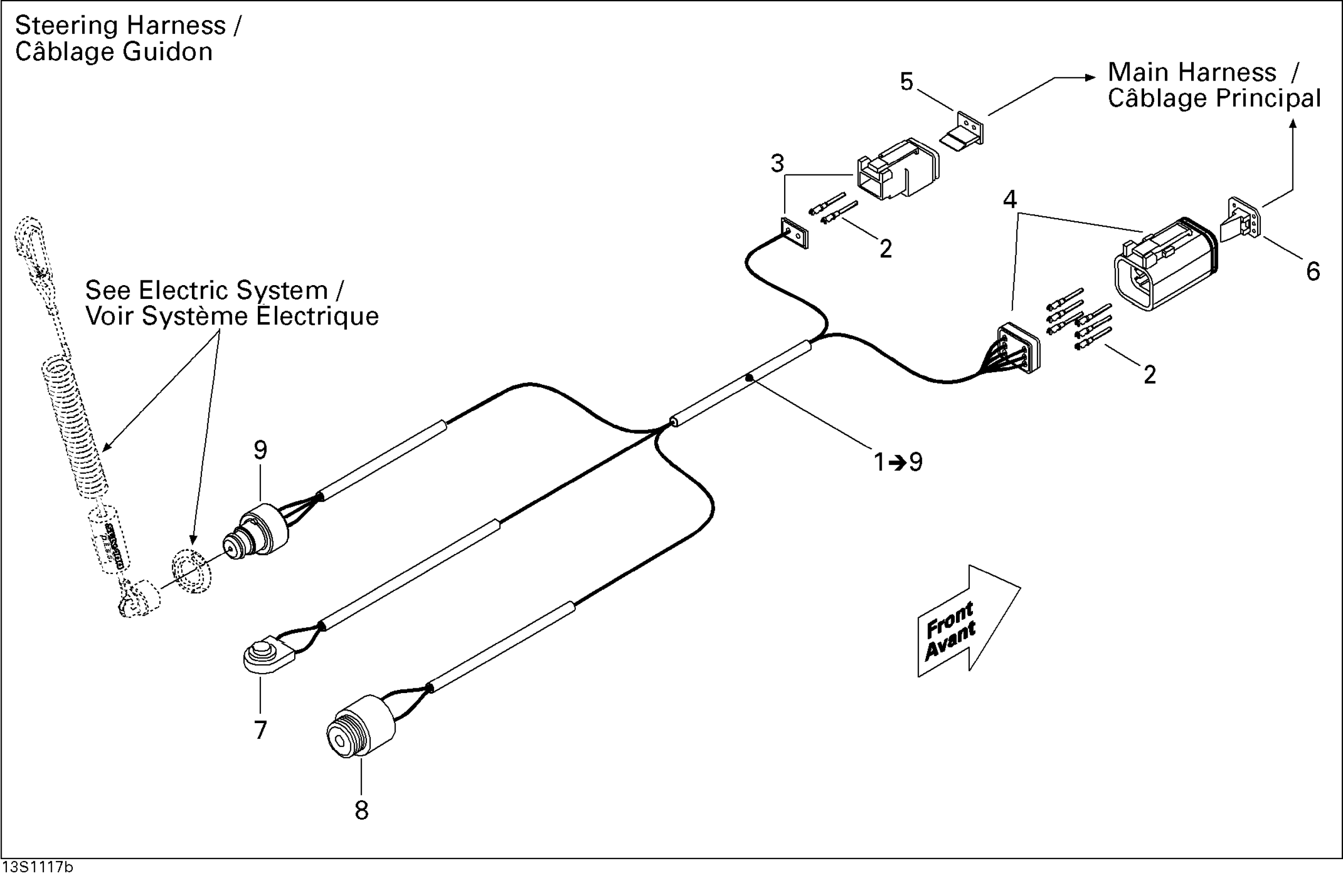

Sea-doo GTS Pro 130, 2011 Electrical Harness 2 Diagram

#

Description

Price

1

Steering Harness Ass’y | SERV

278002383

Unavailable

2

Female Terminal

278000632

$1.69

3

Female Connector, 2 Circuits

409207300

$9.31

4

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

7

Start/Stop Switch Kit

295501137

$48.07

8

Buzzer | SERV

278002290

$28.57

9

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

$89.67
