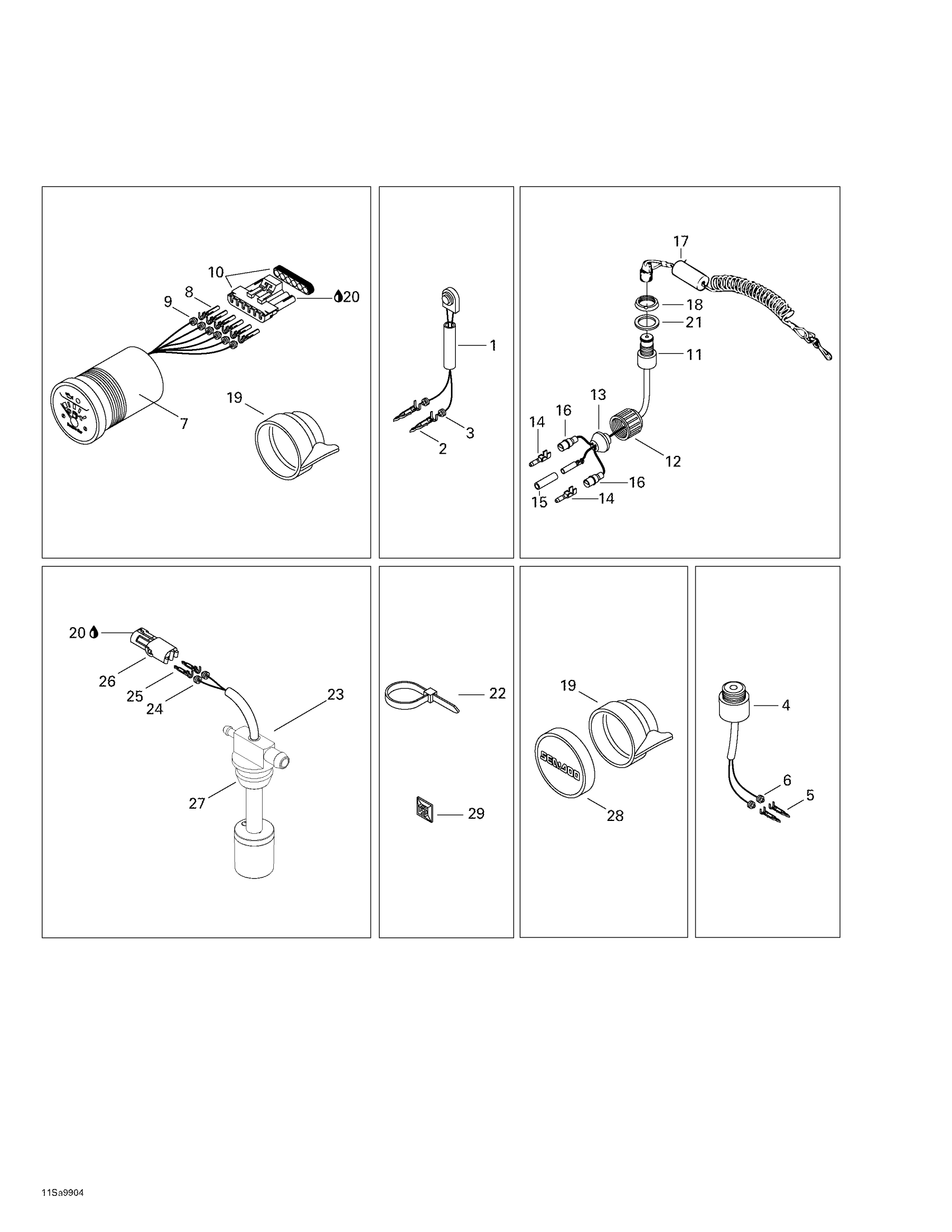

Sea-doo GTS, 5883, 1999 Electrical Accessories Diagram

#

Description
Price

1

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

2

Male Terminal | XT Models

278000222

$2.55

3

Wire Seal

278000218

$3.48

4

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

5

Male Terminal | XT Models

278000222

$2.55

6

Wire Seal

278000218

$3.48

7

Oil/Fuel Level Gauge | Includes 7 - 10.

278001338

Unavailable

8

Female Terminal

278000223

$2.55

9

Wire Seal

278000218

$3.48

10

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

11

SAFETY SWITCH - Call your local BRP dealership | Includes 11 - 16.

278000638

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

14

Male Terminal

278000230

$3.48

15

Insulated Sheath

278001007

$3.12

16

Insulated Sheath

278001008

$3.10

17

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

18

Safety Nut (DESS Switch)

278002963

$2.72

19

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

WASHER - Call your local BRP dealership

211200027

Unavailable

22

Tie-Rap 180 mm

414115200

$0.09

23

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

24

Wire Seal

278000218

$3.48

25

Male Terminal | XT Models

278000222

$2.55

26

Female Housing, 2 Circuits

278000217

$7.59

27

Grommet

293720008

$10.91

28

Gauge Cap

269700062

Unavailable

29

Tie-rap Mount

293750010

Unavailable
