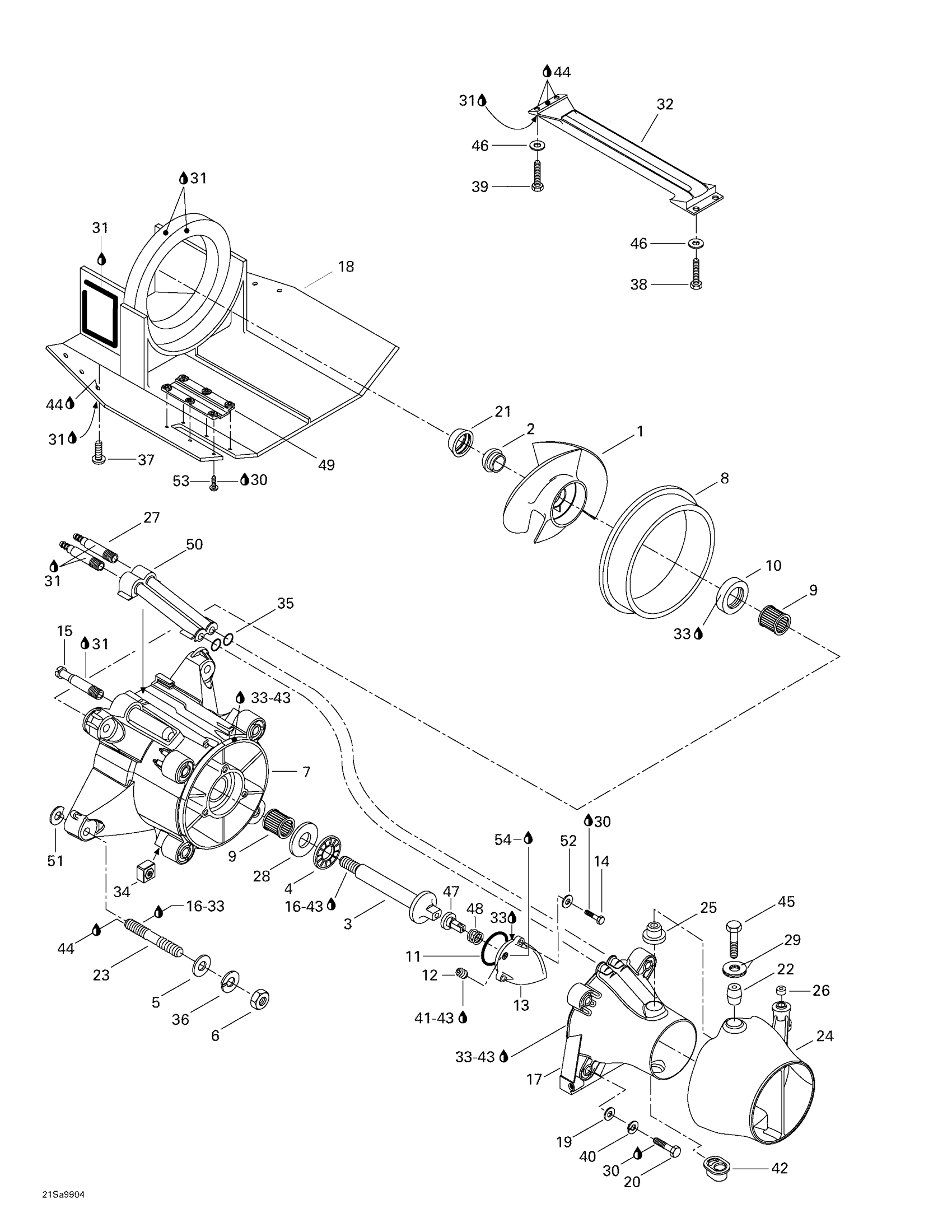

Sea-doo GTS, 5883, 1999 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000826

Unavailable

2

Impeller Boot

271000516

$6.86

3

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

4

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

5

Flat Washer 10 mm, Stainless

234001600

$0.91

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

$47.42

9

Needle Bearing

293350017

$21.42

10

Oil Seal

267000094

$17.52

11

O-Ring

293300011

$6.46

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.22

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$20.77

17

VENTURI ASS'Y - Call your local BRP dealership

271000510

Unavailable

18

Shoe (Black)

271000186190

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$1.98

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

21

Impeller Ring

271000517

$6.86

22

Sleeve

271001816

$11.58

23

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

24

STEERING NOZZLE ASS'Y - Call your local BRP dealership | Includes 23 - 24.

271000418

Unavailable

25

Venturi Bushing

293900001

$6.14

26

Not Available As Spare Part - Friction Washer

Unavailable

27

BAILER FITTING - Call your local BRP dealership

293700017

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

Thrust Washer

211200002

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

$50.02

32

INLET GRATE - Call your local BRP dealership

271000466

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

34

Square Nut M8

211100033

$14.27

35

O-Ring

293300013

$5.69

36

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

37

Phillips Screw M6 X 25

208562560

$1.92

38

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

39

Hex. Forming Screw M6 X 20

207162060

$1.03

40

Lock Washer 8 mm, Stainless

234181601

$0.46

41

Was 293800013 Loctite 56765

219704454

$63.40

42

Plastic Bushing

293900010

$7.15

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

Silicone Sealant 51388, 300 ml

296000309

$35.72

45

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

46

Stainless Flat Washer M6

234061600

$0.25

47

PUSHER - Call your local BRP dealership

271000978

Unavailable

48

SPRING - Call your local BRP dealership

271000973

Unavailable

49

Ride Shoe Cap

291000446

Unavailable

50

Water Outlet

271000972

Unavailable

51

Shim 0.3 mm

272000053

$8.02

52

Flat Washer M5, Stainless

234051600

$0.64

53

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

54

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62
