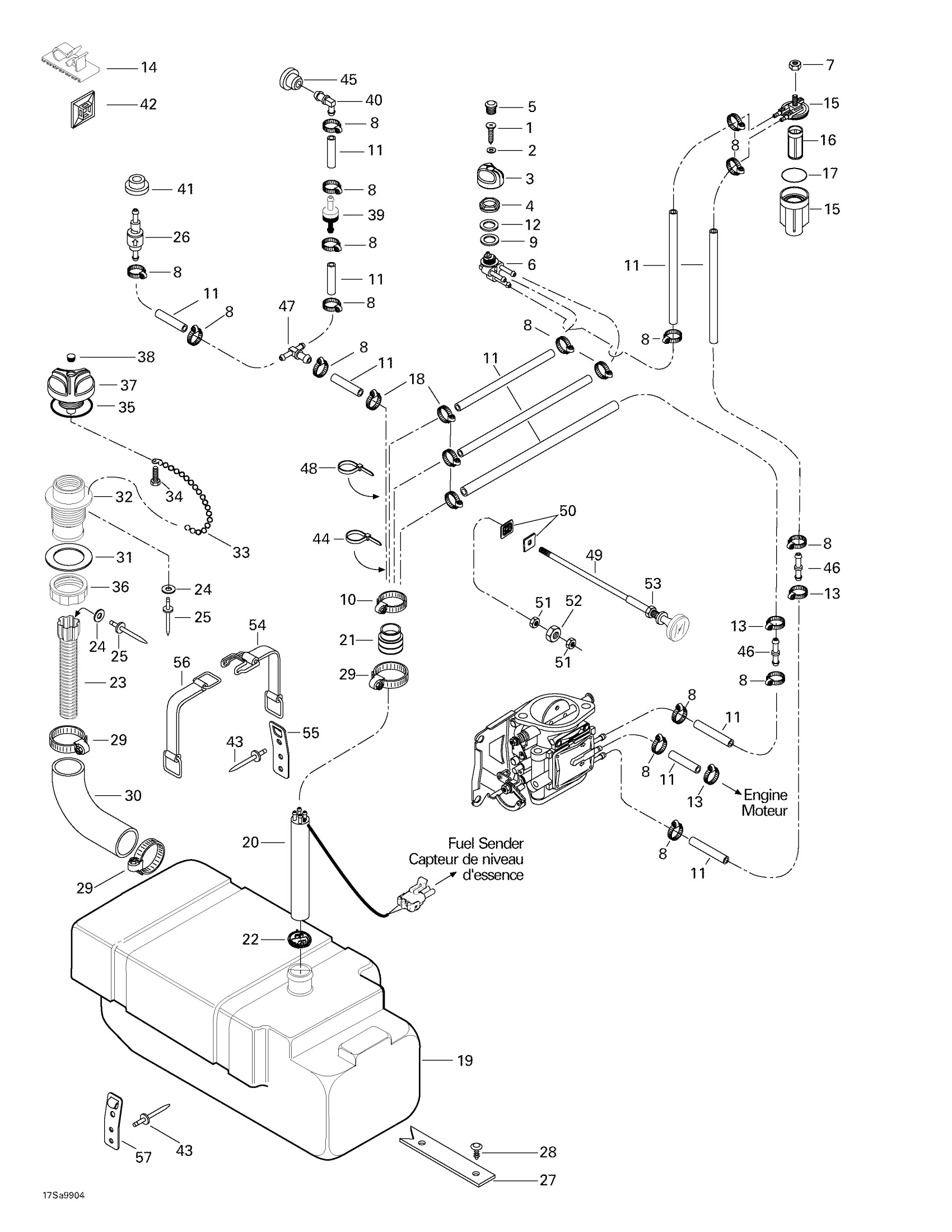

Sea-doo GTS, 5883, 1999 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.46

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Black, Cap

275500241

$2.76

6

Fuel Valve

275500098

$34.42

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Oetiker Clamp

293650042

$1.40

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650035

$5.80

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Gasket

293250005

Unavailable

13

Tridon Gear Clamp

293650170

$1.74

14

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$6.84

18

Tridon Gear Clamp

293650170

$1.74

19

FUEL TANK - Call your local BRP dealership

275500183

Unavailable

20

BAFFLE PICK UP - Call your local BRP dealership | Includes 20 - 22.

275500420

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Filler neck (Inner)

275500316

Unavailable

24

Flat Washer M3, Stainless

234032600

$0.52

25

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

26

Check Valve

275500424

Unavailable

27

Pad Rubber

293830033

Unavailable

28

Black, Dart

293730006

$0.81

29

Tridon Clamp

293650023

$11.37

30

Filler Neck Hose

275500211

Unavailable

31

Gasket

293250029

$12.06

32

Filler Neck

275500247

Unavailable

33

Oil Cap Chain

275500015

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$10.02

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

38

Black, Snap Cap

293000034

$7.48

39

Check Valve

275500398

$8.57

40

Male Connector

414580700

$3.38

41

Grommet

293720029

$1.13

42

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Tie Wrap 368 mm

293750008

$0.85

45

Grommet

709200285

$7.09

46

Straight Fitting

293710039

$6.75

47

T-Fitting | Europe

293710024

$12.82

48

Tie-Rap 180 mm

414115200

$0.09

49

Choke Cable | Includes 49 - 53.

270000324

Unavailable

50

Choke Plate

291000457

Unavailable

51

Hex. Nut M6

232160600

$1.04

52

Hex. Nut

211100007

Unavailable

53

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

54

Strap | Includes 69 - 70.

293850025

Unavailable

55

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

56

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

57

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable
