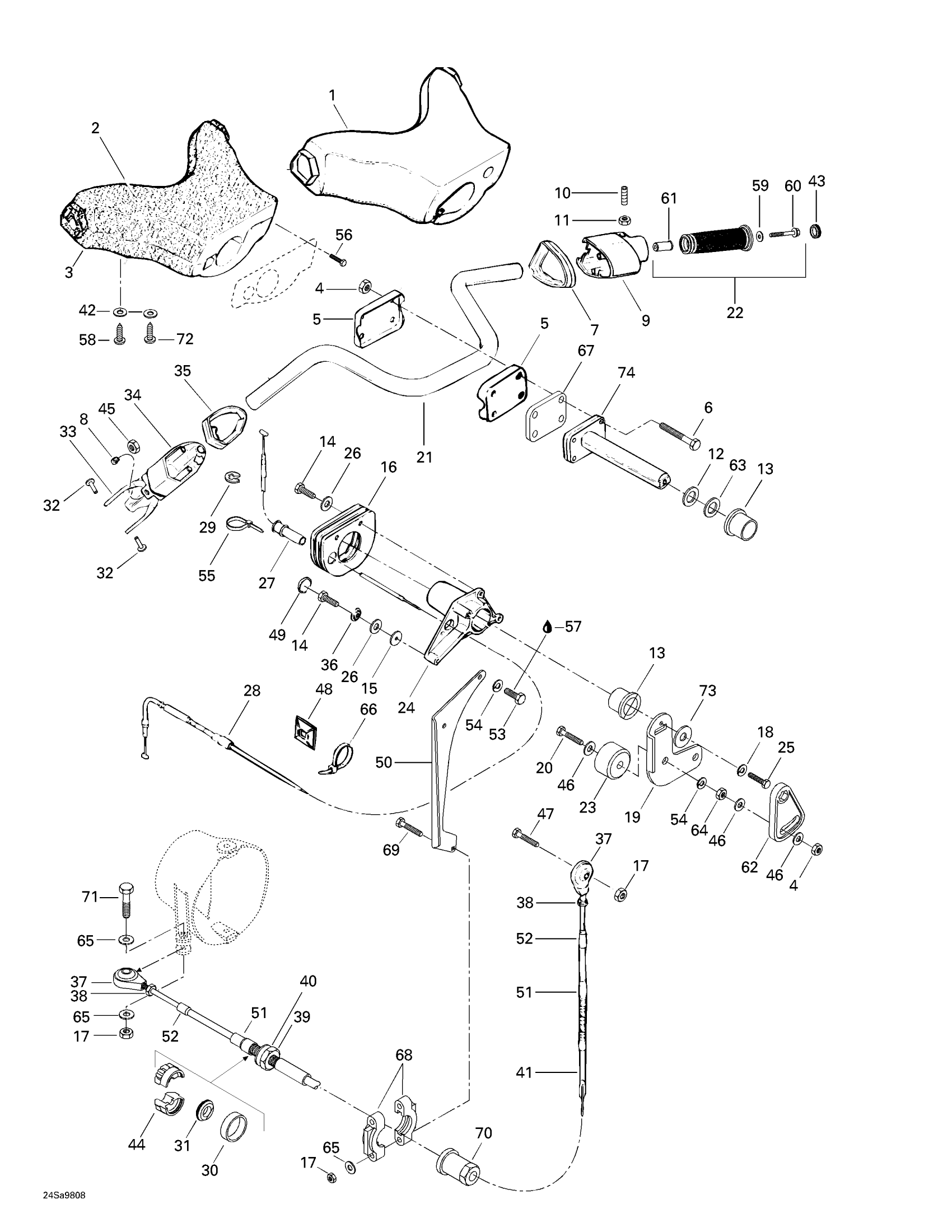

Sea-doo GTS, 5819, 1998 Steering System Diagram

#

Description
Price

1

Steering Cover (Violet)

277000711

Unavailable

2

TOP FOAM - Call your local BRP dealership

277000145

Unavailable

3

Bottom Foam

277000146

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

6

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085560

Unavailable

7

LH Adapter

277000341

Unavailable

8

Set Screw M6 x 10

216561060

Unavailable

9

LH HOUSING ASS'Y - Call your local BRP dealership

277000221

Unavailable

10

Set Screw M6 x 10

216561060

Unavailable

11

Hex. Nut M6

232160600

$1.15

12

Spring Washer

211200008

Unavailable

13

Bushing

293900002

Unavailable

14

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

15

Plastic Washer

277000100

Unavailable

16

Collar (Black)

277000091

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Lock Washer 8 mm, Stainless

234181601

$0.55

19

Steering Stem Arm

277000493

Unavailable

20

Hex. Screw M8 X 45

207084560

$3.38

21

Handle bar

277000305

Unavailable

22

Handle Grip Kit (Black) This part replaces 295500112.

295500110

$41.49

23

Stopper Bushing

277000097

Unavailable

24

Steering Support

277000115400

Unavailable

25

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Grommet

293720014

Unavailable

28

Throttle Cable

277000710

Unavailable

29

Circlip 5 mm

293370002

$5.50

30

Retaining Ring

211100010

Unavailable

31

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Throttle Handle

277000472

Unavailable

34

THROTTLE HANDLE HOUSING - Call your local BRP dealership

277000222

Unavailable

35

Throttle Adapter

277000084

Unavailable

36

Retaining Washer

277000096

Unavailable

37

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

38

Hex. Nut

212100005

$1.35

39

Hex. Jam Nut 1/2-20

211100011

Unavailable

40

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

41

Steering Cable

271000436

Unavailable

42

Flat Washer M5, Stainless

234051600

$0.77

43

Black, Cap

277000203

$9.39

44

Half-Ring

277000168

Unavailable

45

Hex. Nut M6

232160600

$1.15

46

Stainless, Flat Washer 8 mm

234081600

$0.55

47

Hex. Screw M6 X 30

207063060

$1.89

48

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

49

Snap Cap

210000019

Unavailable

50

Cable Support

277000457

Unavailable

51

Boot, Large

277000473

Unavailable

52

Boot, Small

277000466

Unavailable

53

Hex. Screw M8 x 16

215681660

Unavailable

54

Lock Washer 8 mm, Stainless

234181601

$0.55

55

Tie Wrap 142 mm

293750002

$1.25

56

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

57

Loctite 243, 10 ml

293800060

$21.49

58

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

59

Flat Washer M6, Stainless

234062600

$0.77

60

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Lock Plate

277000201

Unavailable

63

SHIM - Call your local BRP dealership

293350006

Unavailable

64

Hex. Nut M8

232081600

$1.47

65

Stainless Flat Washer M6

234061600

$0.33

66

Tie-Rap 180 mm

414115200

$0.11

67

Spacer

277000436

Unavailable

68

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

69

Bolt-Carriage M6 x 60

215266060

Unavailable

70

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

71

Hex. Screw M6 X 40

207064060

$1.69

72

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

73

Washer

211200001

Unavailable

74

Steering Stem

277000223

Unavailable
