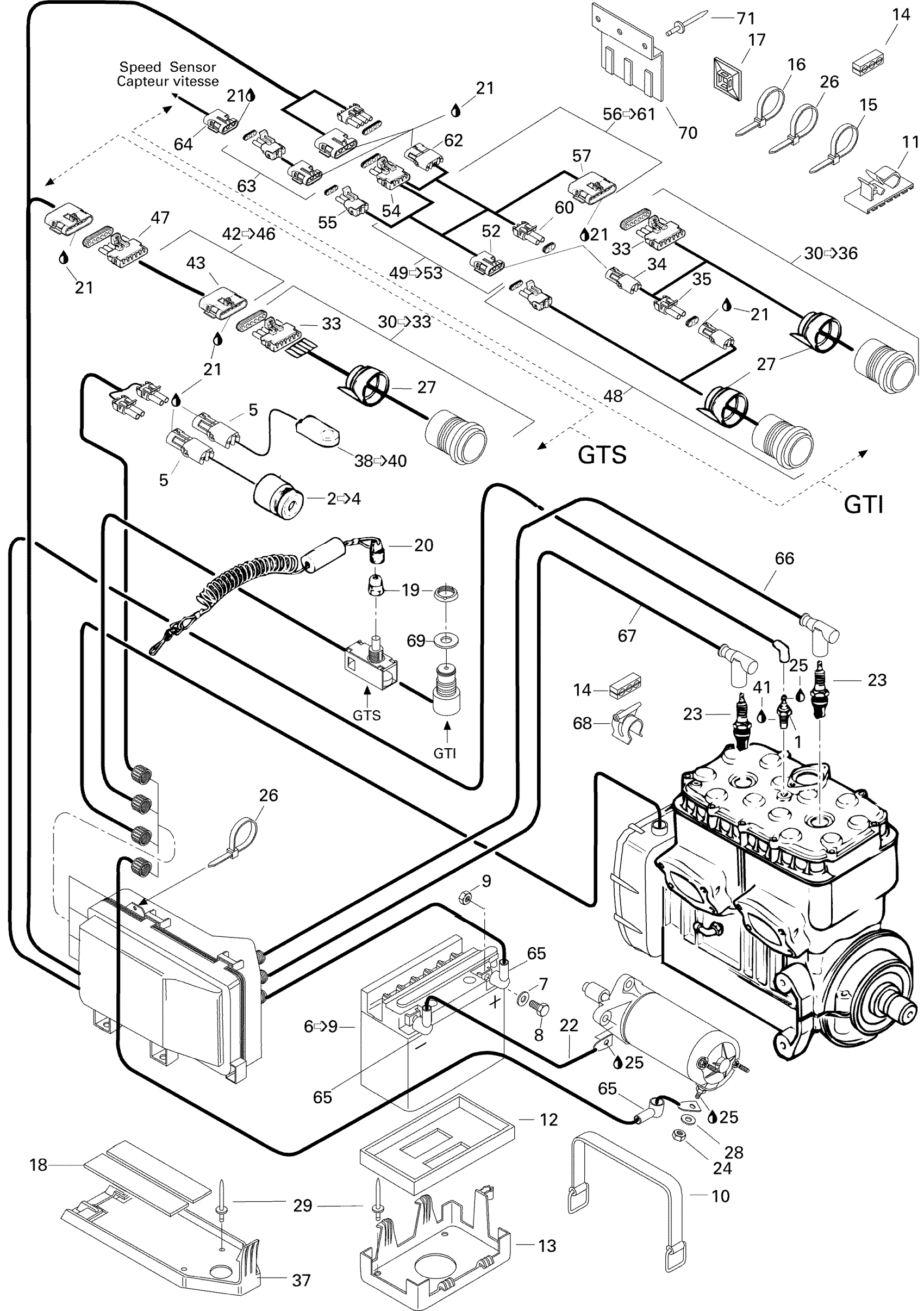

Sea-doo GTS, 5817, 1996 Electrical System 587 Diagram

#

Description
Price

1

Temperature Sensor

278000194

Unavailable

2

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

3

Male Terminal | XT Models

278000222

$3.19

4

Wire Seal

278000218

$4.39

5

Female Housing, 2 Circuits

278000217

$9.59

6

Battery 19A | Includes 5 to 8

278001756

$153.36

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Screw M6 X 16

207161644

$0.74

9

Hex. Nut M6

232061414

$0.53

10

Retainer Strap

293850097

$11.64

11

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

12

Battery Lower Pad

278000776

Unavailable

13

Battery Support

278000476

Unavailable

14

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

15

Tie Wrap 142 mm

293750002

$1.25

16

Tie-Rap 180 mm

414115200

$0.11

17

Tie-rap Mount

293750010

Unavailable

18

Rubber Strip

293830012

Unavailable

19

Safety Switch Nut

278000099

Unavailable

20

Safety Lanyard

278001431

$47.49

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Battery Ground Cable

278000681

Unavailable

23

Spark Plug NGK BR7ES | SP 5879.

219703118

Unavailable

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

26

Tie-Rap 173 mm

293750009

$1.04

27

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Avdel Rivet 3/16"

293150037

$0.56

30

Oil / Fuel Level Gauge | Includes 35 - 38.

278000496

Unavailable

31

Female Terminal

278000223

$3.19

32

Wire Seal

278000218

$4.39

33

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Box Support

278000780

Unavailable

38

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

39

Male Terminal | XT Models

278000222

$3.19

40

Wire Seal

278000218

$4.39

41

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

42

6 Circuits Harness | Includes 31 - 35.

278000495

Unavailable

43

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

44

Male Terminal | XT Models

278000222

$3.19

45

Wire Seal

278000218

$4.39

46

Female Terminal

278000223

$3.19

47

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable

63

Not Available As Spare Parts

XXX

Unavailable

64

Not Available As Spare Parts

XXX

Unavailable

65

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

66

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

67

Spark Plug Wire 530 (MAG)

278000322

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

Not Available As Spare Parts

XXX

Unavailable

70

Housing Index

278000318

Unavailable

71

Pop RIvet 1/8 X ,375

293150285

$0.33
