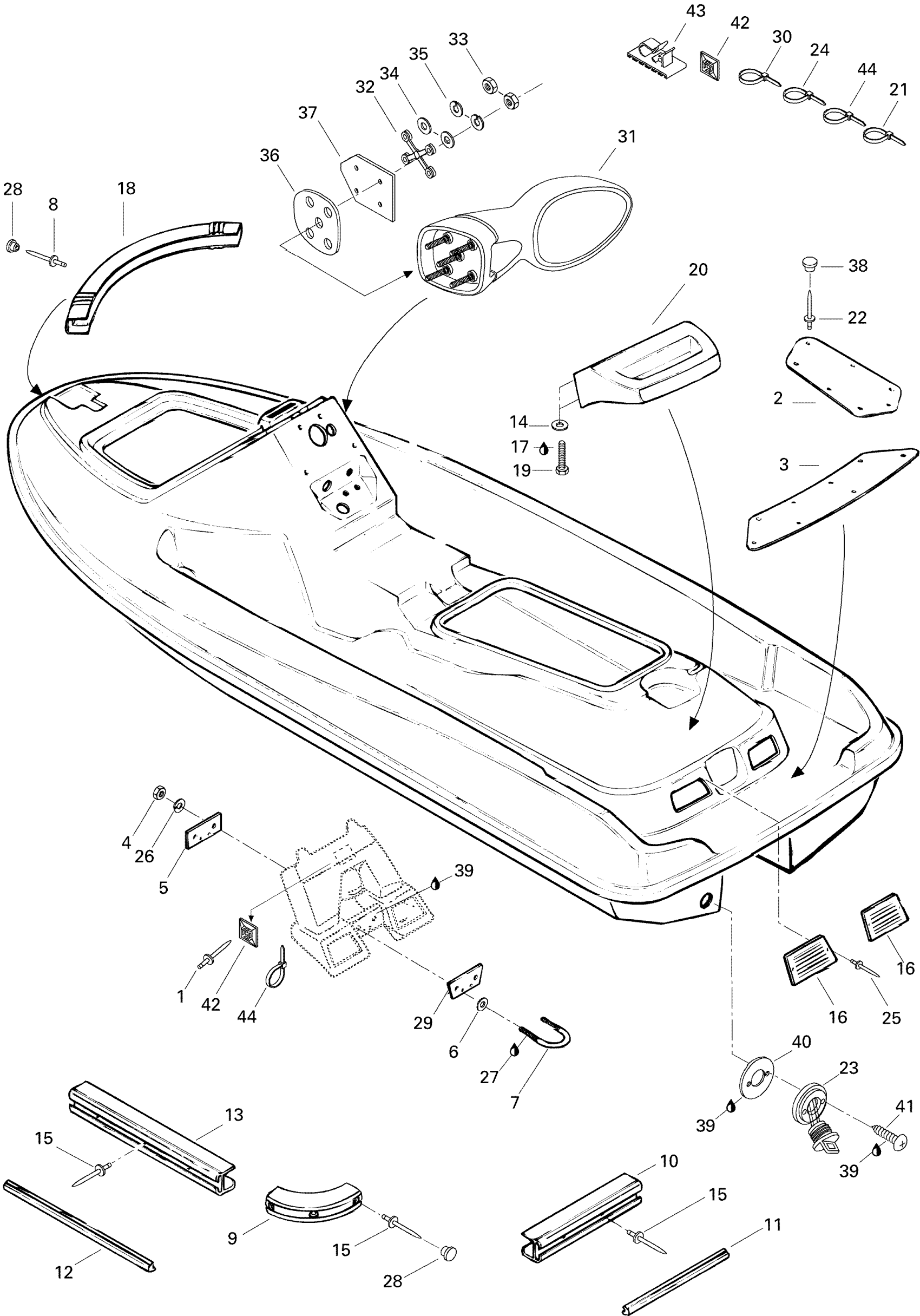

Sea-doo GTS, 5817, 1996 Body, Rear View GTS Diagram

#

Description
Price

1

RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership

293150034

Unavailable

2

RH Carpet (Violet)

291000523

Unavailable

2

LH Carpet (Violet)

291000524

Unavailable

3

Rear Carpet (Violet)

291000525

Unavailable

4

Hex. Nut M8

232081600

$1.47

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Flat Washer M8.5 x 18

293050001

$3.07

7

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

8

Pop Rivet 3/16"

293150013

$1.37

9

BUMPER CORNER (VIOLET) - Call your local BRP dealership

291000394

Unavailable

10

Rear Bumper (Violet)

291000508

Unavailable

11

REAR BUMPER TRIM (VIOLET) - Call your local BRP dealership

291000625

Unavailable

12

SIDE BUMPER TRIM (VIOLET) - Call your local BRP dealership

291000623

Unavailable

13

Side Bumper (Violet)

291000507

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

Pop Rivet 3/16"

293150014

$1.09

16

Rear Intake Grill (Violet)

291000528

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Nose Bumper (Violet)

291000506

Unavailable

19

Hex. Forming Screw M6 X 20

207162060

$1.29

20

Grab Handle (Violet)

295500162

Unavailable

21

Tie Wrap 368 mm

293750008

$1.04

22

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

23

Drain Plug

292000187

$14.49

24

Tie Wrap 142 mm

293750002

$1.25

25

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

26

Lock Washer 8 mm, Stainless

234181601

$0.55

27

Loctite 271, 10 ml

293800005

$26.99

28

Bumper Plug, Black

291000339

$2.99

29

Finition Plate (Violet) | SP 5879.

291000137

Unavailable

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Black, Snap Cap

293000014

$1.09

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

GASKET - Call your local BRP dealership

293250030

Unavailable

41

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

42

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

43

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

44

Tie-Rap 180 mm

414115200

$0.11
