- GTS, 5817, 1996
02- Carburetor 587

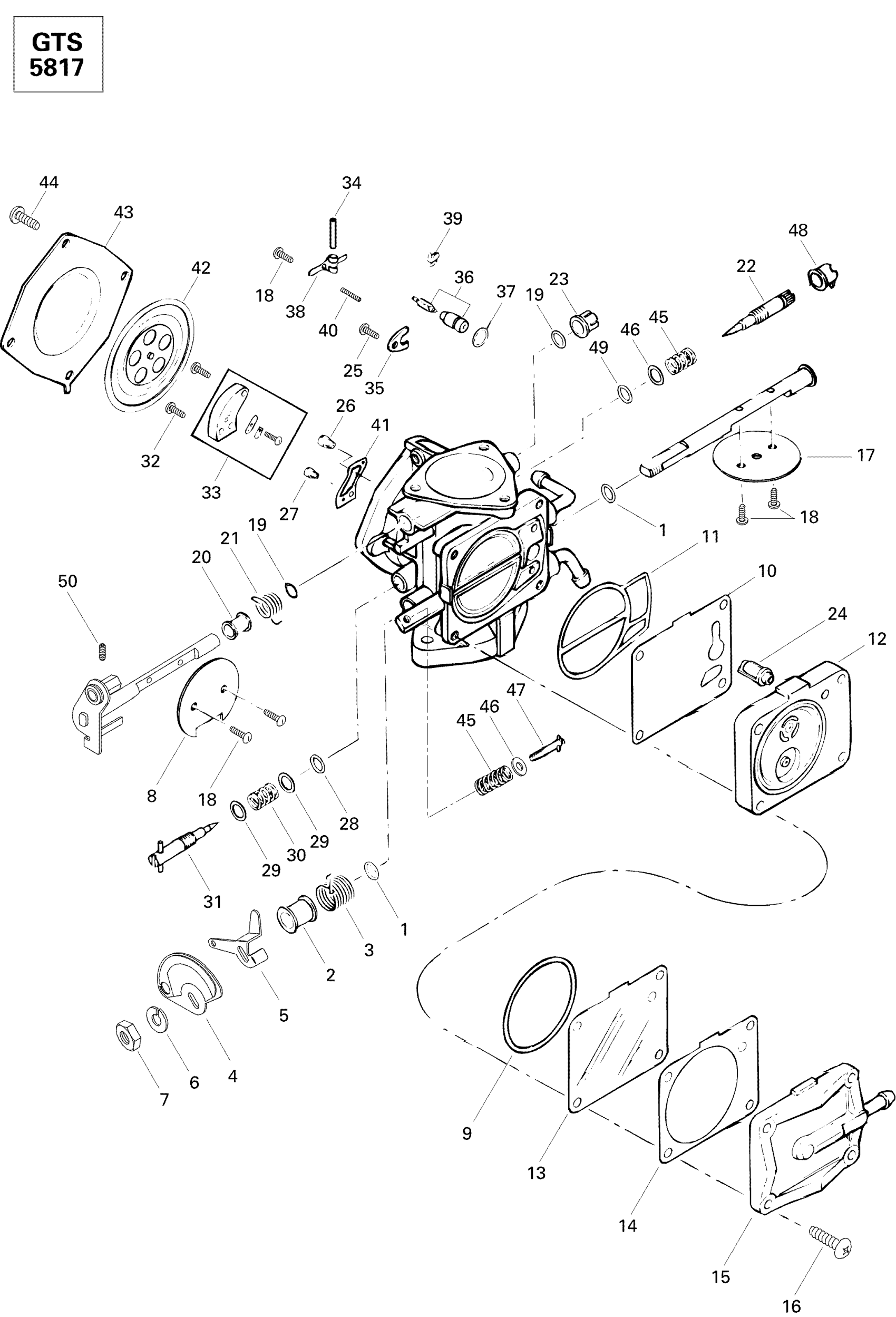

Sea-doo GTS, 5817, 1996 02- Carburetor 587 Diagram
#
1
Carbura tor Ass‘y | Includes 1 to 50
270500204
Unavailable
1
Sealing Ring
270500065
Unavailable
2
RING - Call your local BRP dealership
270500192
Unavailable
3
Spring
270500191
Unavailable
4
Throttle Lever Ass'y | SP 5879.
270500061
Unavailable
5
Throttle Lever | SP 5879.
270500172
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500012
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
O-RING - Call your local BRP dealership
270500102
Unavailable
10
GASKET - Call your local BRP dealership
270500103
Unavailable
11
O-Ring
270500104
Unavailable
12
Body Pump Ass'y
270500105
Unavailable
13
DIAPHRAGM - Call your local BRP dealership
270500106
Unavailable
14
Gasket
270500146
Unavailable
15
PUMP COVER - Call your local BRP dealership
270500108
Unavailable
16
SCREW - Call your local BRP dealership
270500143
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Sealing Ring
270500064
Unavailable
20
Ring
270500110
Unavailable
21
Spring | SP 5879.
270500147
Unavailable
22
Adjuster Screw
270500113
Unavailable
23
Ring
270500114
Unavailable
24
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
25
Screw And Spring Washer
270500155
Unavailable
26
Main Jet 147.5
270500210
Unavailable
27
Pilot Jet 65
270500117
Unavailable
28
O-RING - Call your local BRP dealership
270500119
Unavailable
29
Washer
270500018
Unavailable
30
SPRING - Call your local BRP dealership
270500019
Unavailable
31
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
32
SCREW - Call your local BRP dealership
270500123
Unavailable
33
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
34
Pin
270500038
Unavailable
35
PLATE - Call your local BRP dealership
270500125
Unavailable
36
Needle Valve 2.0
270500208
$31.99
37
O-RING - Call your local BRP dealership
270500127
Unavailable
38
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
39
CLIP - Call your local BRP dealership
270500129
Unavailable
40
Spring
270500130
Unavailable
41
GASKET - Call your local BRP dealership
270500131
Unavailable
42
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
43
COVER - Call your local BRP dealership
270500133
Unavailable
44
Screw | EXPLORER 5824 PTO.
270500190
Unavailable
45
SPRING - Call your local BRP dealership
270500091
Unavailable
46
Washer
270500136
Unavailable
47
Screw Ass'y
270500137
Unavailable
48
Cap
270500154
Unavailable
49
O-RING - Call your local BRP dealership
270500144
Unavailable
50
Allen Screw M4 x 6
210100014
Unavailable
