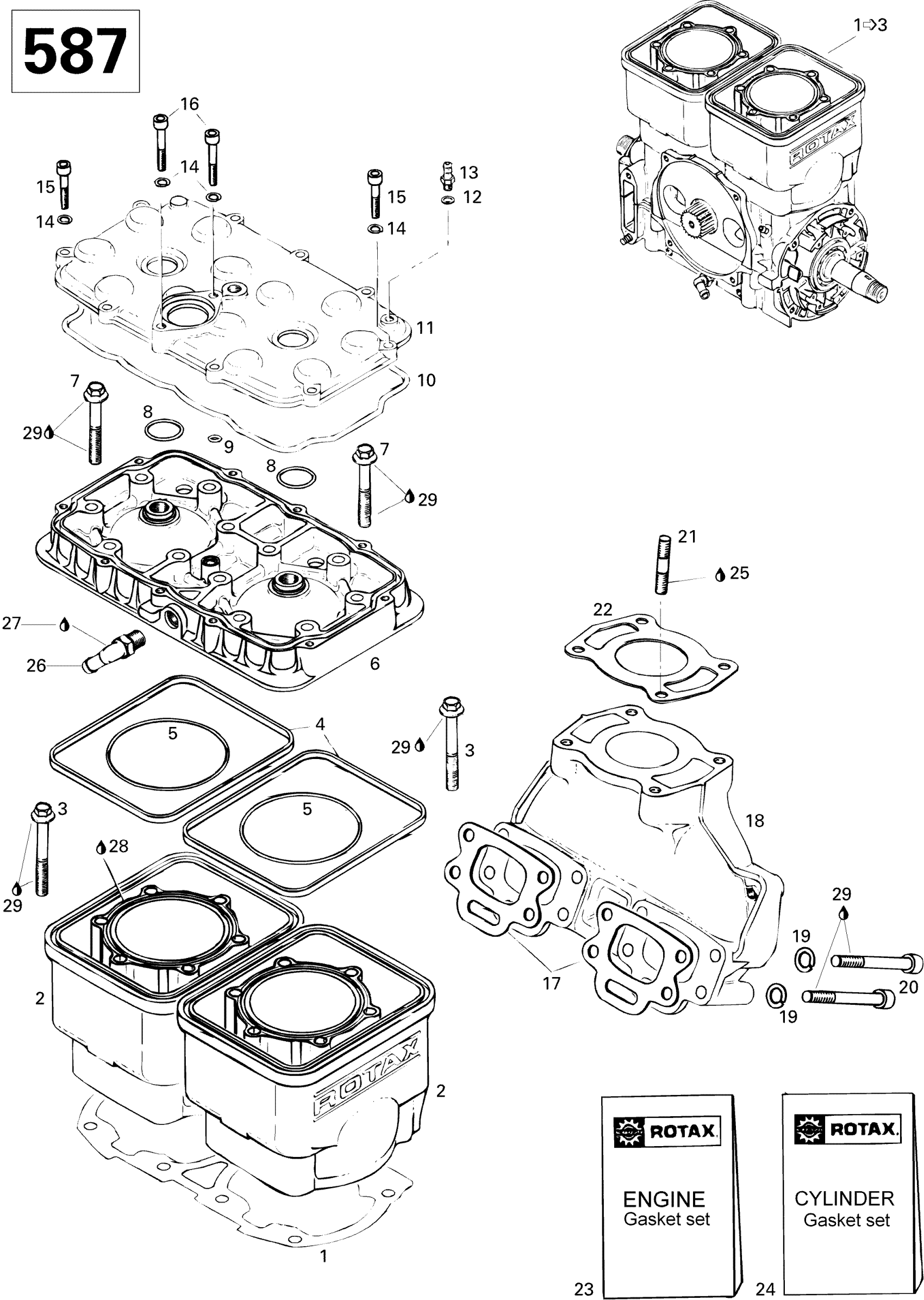

Sea-doo GTS, 5817, 1996 Cylinder And Exhaust Manifold 587 Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 20 Except 2,4,5

290881444

Unavailable

1

Cylinder Gasket 0.5 mm

290931161

Unavailable

2

Cylinder with Sleeve (White)

290913376

Unavailable

3

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

4

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

5

O-Ring This part replaces 420850540.

293300026

$3.39

6

Head Cylinder (White)

290913352

Unavailable

7

Hex. Flange Screw M8 x 55

290240328

Unavailable

8

O-Ring

420430782

$5.39

9

O-Ring

290430200

Unavailable

10

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

11

Cylinder Head Cover (White)

290913362

Unavailable

12

Sealing Ring

290830890

Unavailable

13

Hose Fitting 6 mm

290940557

Unavailable

14

Lock Washer 6 mm

290845381

Unavailable

15

Socket Head Screw M6 X 25

205062560

$1.69

16

Socket Head Screw M6 X 35

205063560

$2.22

17

Gasket

290850635

Unavailable

18

Exhaust Manifold (White)

290978348

Unavailable

19

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

20

Allen Screw M8 x 75

290841833

Unavailable

21

Stud M8 x 26

420941014

$14.22

22

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

23

Engine Gasket Set (Not Shown)

290993878

Unavailable

24

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290993877

Unavailable

25

Loctite 648, 5 gr.

293899788

Unavailable

26

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

27

Was 293800013 Loctite 56765

219704454

$65.99

28

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

29

Dow Corning 111, 150 g

413707000

$59.99

30

Gasket (Not Shown)

290830906

Unavailable
