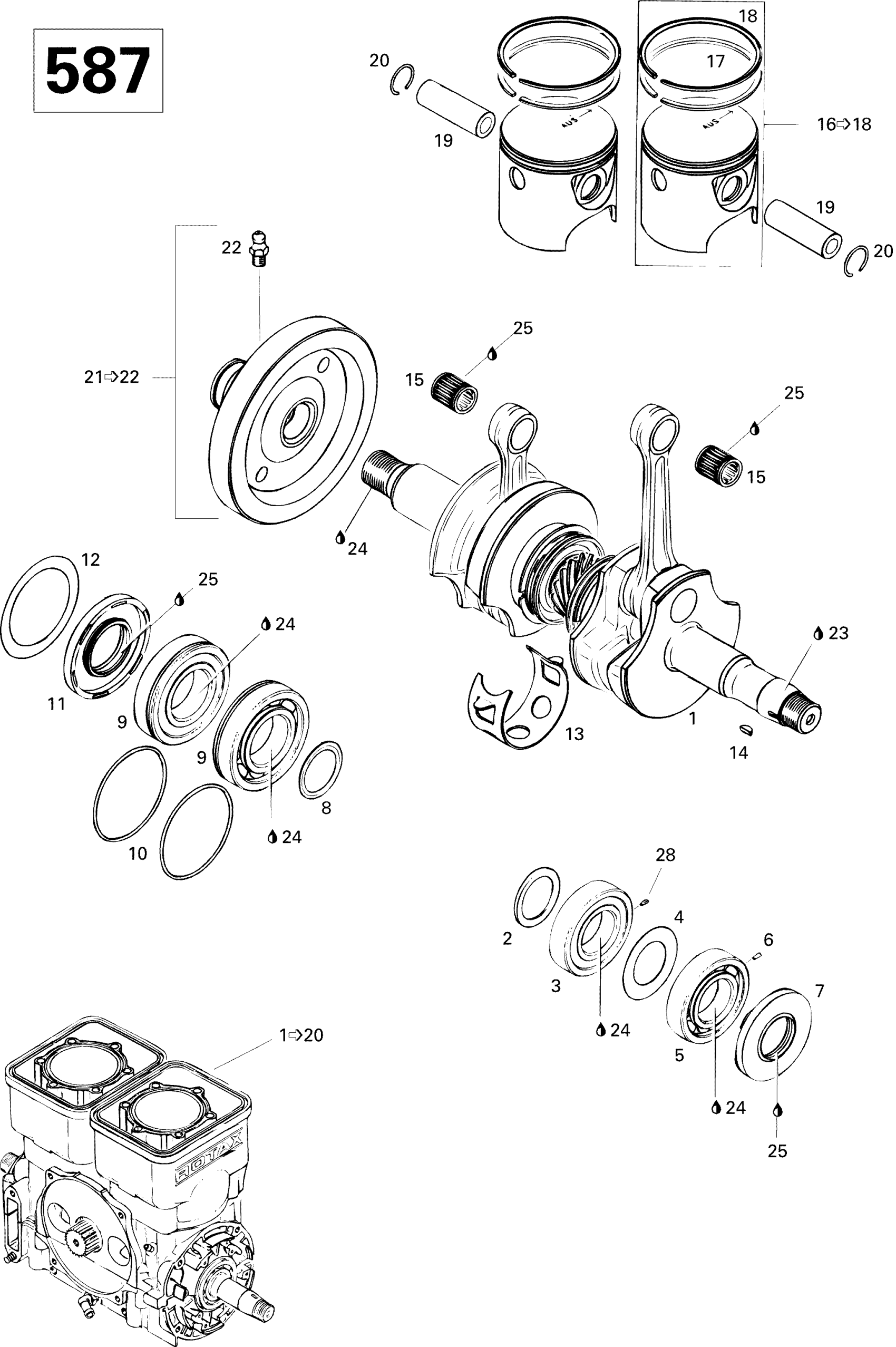

Sea-doo GTS, 5817, 1996 Crankshaft And Pistons 587 Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 20 Except 2,4,5

290881444

Unavailable

1

Crankshaft Ass‘y

290886793

Unavailable

2

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Shim 30.4 / 51 / 1

290827715

Unavailable

5

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

6

Rolled Pin

290832470

Unavailable

7

Oil Seal This part replaces 290830749.

420830749

$18.54

8

Distance Ring

290827760

Unavailable

9

Bearing_Ball This part replaces 290832231.

420832584

$41.49

10

O-Ring, 64 mm X 2 mm

293300022

$12.72

11

Oil Seal This part replaces 290831952.

420831952

$18.01

12

RETAINING SHIM - Call your local BRP dealership

290926060

Unavailable

13

Retaining Ring

290926070

Unavailable

14

Woodruff Key

420246055

$2.43

15

Needle Bearing

420932904

$15.89

16

Pis ton with 2 Rings 76.0 mm | Includes 16 to 18

290886270

Unavailable

16

Pis ton with 2 Rings 76.25 mm | Includes 16 to 18

290886271

Unavailable

16

Pis ton with 2 Rings 76.5 mm | Includes 16 to 18

290886272

Unavailable

17

Rectangular Ring 76.0 mm

290215200

Unavailable

17

Rectangular Ring 76.25 mm

290215201

Unavailable

17

Rectangular Ring 76.5 mm

290215202

Unavailable

18

SEMI-TRAPEZ RING 76.0 MM - Call your local BRP dealership

290915820

Unavailable

18

Semi-Trapez Ring 76.25 mm

290915821

Unavailable

18

Semi-Trapez Ring 76.5 mm

290915822

Unavailable

19

Gudgeon Pin

290916136

Unavailable

20

Piston Circlip

420945735

$4.46

21

Clutch–Flywheel | Includes 21 to 22

290958873

Unavailable

22

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

25

Dow Corning 111, 150 g

413707000

$59.99

26

Engine Gasket Set (Not Shown)

290993878

Unavailable

27

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290993877

Unavailable

28

Dowel Pin

420929972

Unavailable
