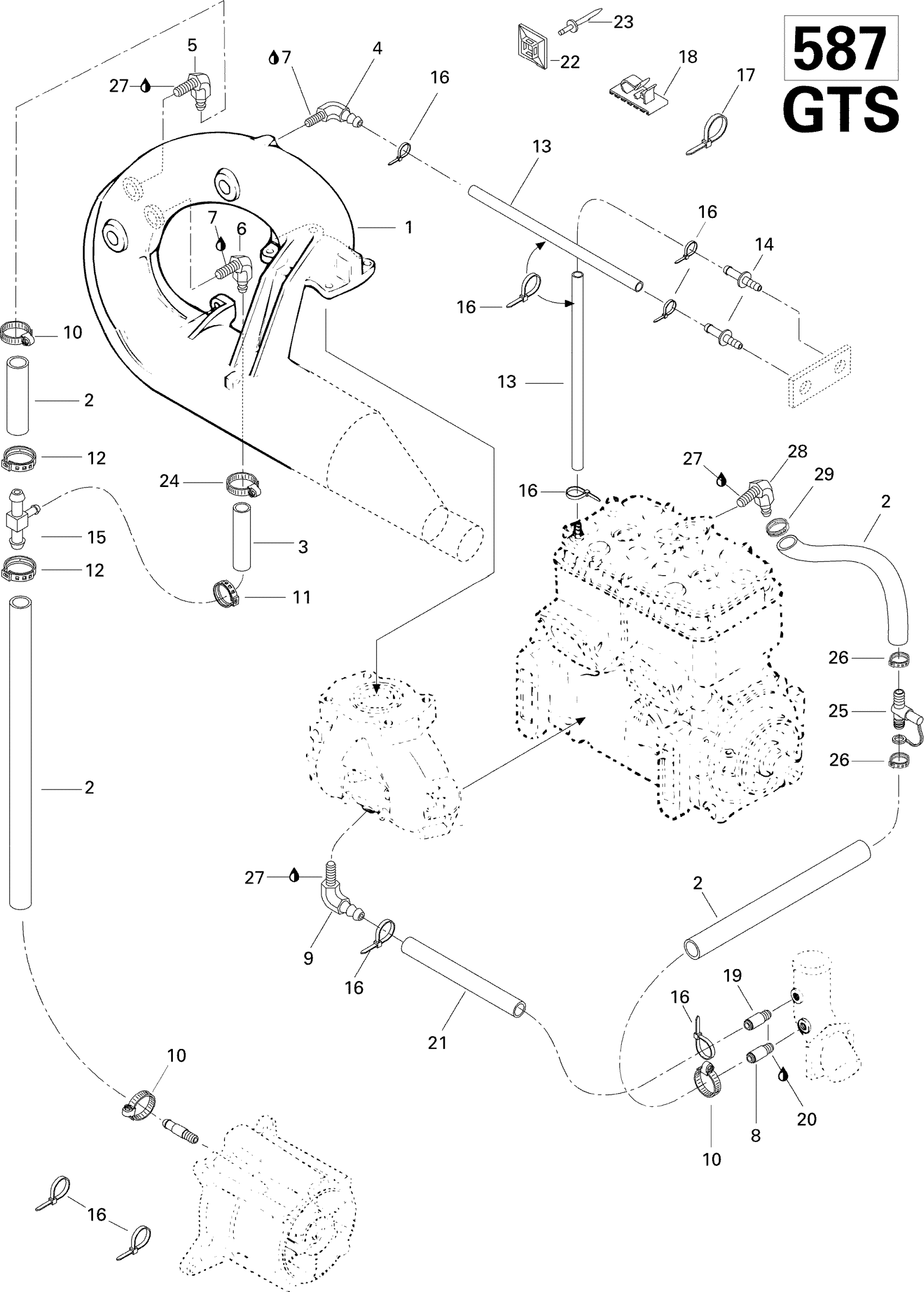

Sea-doo GTS, 5817, 1996 Cooling System (587) Diagram

#

Description
Price

1

Tuned Pipe

274000299

Unavailable

2

Was 276000001 Hose 12.5 mm

219704394

$51.99

3

Hose 8 mm

276000016

Unavailable

4

Elbow Fitting 90°

293710018

Unavailable

5

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

6

Elbow Fitting 90°

293700022

Unavailable

7

Was 293800013 Loctite 56765

219704454

$65.99

8

Male Connec tor

293710019

Unavailable

9

Elbow Fitting

293700016

Unavailable

10

Tridon Gear Clamp

293650172

$3.09

11

Oetiker Clamp | Europe

293650030

$5.19

12

Oetiker Clamp

293650012

$7.49

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

14

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

15

T-Fitting

293710116

$17.62

16

Tie Wrap 94 mm | 4X4

293750001

$1.03

17

Tie-Rap 180 mm

414115200

$0.11

18

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

19

MALE CONNECTOR - Call your local BRP dealership

293710017

Unavailable

20

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

21

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

22

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

23

Rivet 1/8"

293150016

$0.40

24

Tridon Gear Clamp

293650171

$3.09

25

T-FITTING - Call your local BRP dealership

295000103

Unavailable

26

Oetiker Clamp

293650012

$7.49

27

Was 293800013 Loctite 56765

219704454

$65.99

28

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

29

Caillau Clic Clamp

293650018

Unavailable
