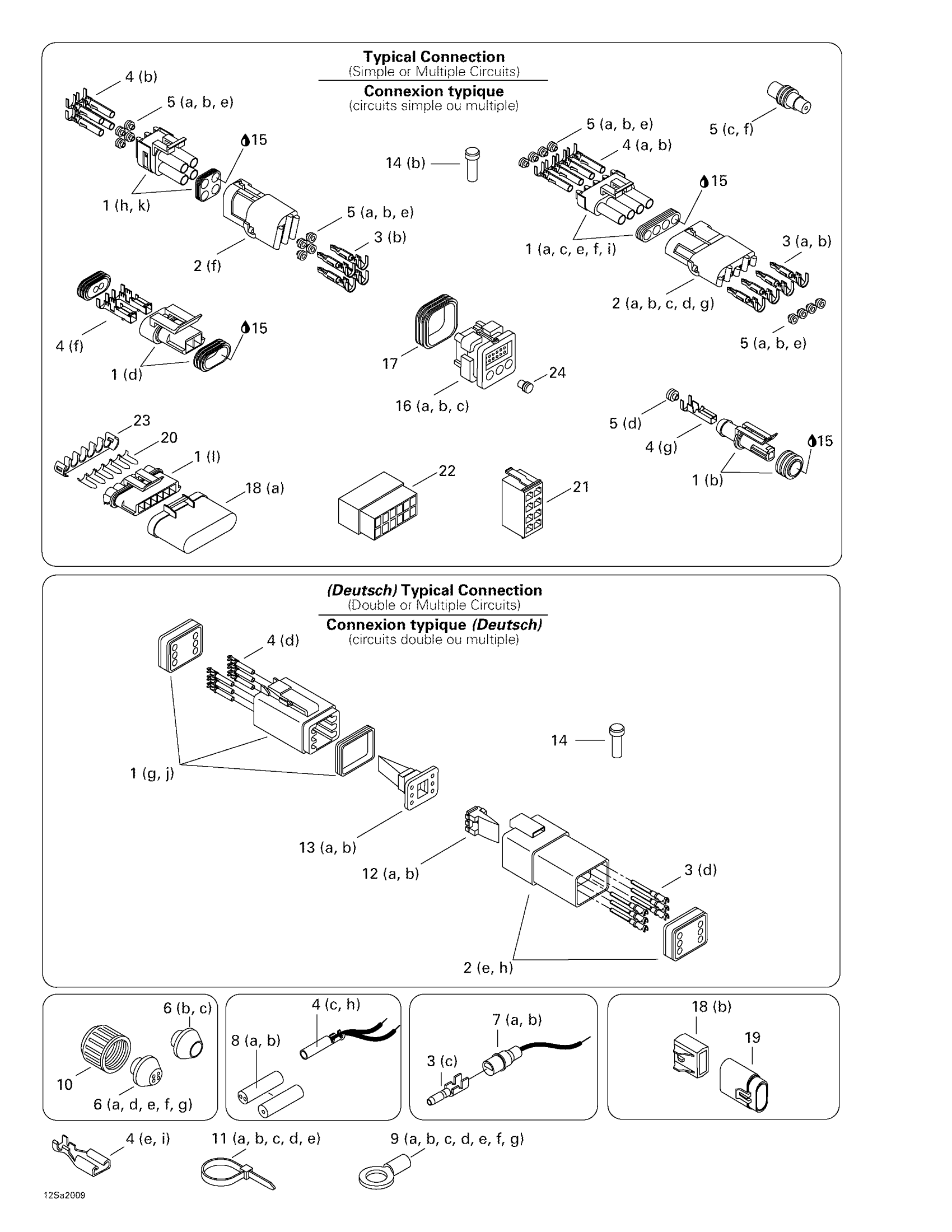

Sea-doo GTS, 5639, 2000 Typical Electrical Connections Diagram

#

Description
Price

1A

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

1B

Male Housing, 1 Circuit

278001012

$16.86

1C

Male Connector, 2 Circuits

278000220

$15.49

1D

Male Connector, 2 Circuits

278001113

$16.86

1E

Male Housing, 3 Circuits

278000273

$9.59

1F

Male Housing, 4 Circuits

278000395

$15.99

1G

Male Connector, 4 Circuits | CE

278000739

$19.49

1H

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

1I

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

1J

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

1K

Male Housing, 6 Circuits, Amp

278001318

Unavailable

1L

Male Housing, 6 Circuits, Packard

278001327

Unavailable

2A

Female Housing, 1 Circuit

278000161

$9.59

2B

Female Housing, 2 Circuits

278000217

$9.59

2C

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

2D

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

2E

Female Housing, 4 Circuits

278000635

$16.49

2F

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

2G

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

2H

Male Terminal Housing, 6 Circuits

710001539

$19.99

3A

Male Terminal

409004300

$5.61

3B

Male Terminal | XT Models

278000222

$3.19

3C

Male Terminal

278000230

$4.39

3D

Male Terminal

278000631

$4.39

4A

Female Terminal

409007300

$0.45

4B

Female Terminal

278000223

$3.19

4C

Female Terminal | DS 650 X

278001009

$3.19

4D

Female Terminal

278000632

$2.09

4E

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

4F

Female Terminal

278001114

$3.19

4G

Female Terminal

278001014

$3.28

4H

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

4I

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

5A

Wire Seal

278000218

$4.39

5B

Wire Seal

278001065

$7.69

5C

Wire Seal

278000216

$3.19

5D

Wire Seal

278001013

$3.28

5E

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

5F

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

6A

Grommet, 1 Circuit, Blue

293720030

Unavailable

6B

GROMMET - Call your local BRP dealership

278000098

Unavailable

6C

Grommet

278000682

Unavailable

6D

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

6E

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

6F

Grommet, 4 Circuit, Red

570026800

Unavailable

6G

Grommet

293720034

Unavailable

7A

Insulation Sheath

278000231

$5.08

7B

Insulated Sheath

278001008

$3.28

8A

Insulated Sheath

278001007

$3.58

8B

Insulated Sheath

278000770

$7.90

9A

Open Barrel

278000992

$2.21

9B

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

9C

Ring Terminal

278000300

Unavailable

9D

Open Barrel, 8 mm

278001138

Unavailable

9E

Open Barrel

278001165

Unavailable

9F

Open Barrel, Amp

278001323

Unavailable

9G

Open Barrel, Amp

278001324

Unavailable

10

Electric Wire Cap

278000100

Unavailable

11A

Tie Wrap 94 mm | 4X4

293750001

$1.03

11B

Tie Wrap 142 mm

293750002

$1.25

11C

Tie-Rap 173 mm

293750009

$1.04

11D

Tie-Rap 180 mm

414115200

$0.11

11E

Tie Wrap 368 mm

293750008

$1.04

12A

Male Lock, 4 Circuits | CE

278000738

$3.09

12B

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

13A

Female Wedge, 4 Circuits

278000636

$4.39

13B

Female Lock, 6 Circuits

278000735

$3.19

14

Sealing Cap

293000052

$3.19

14B

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16A

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

16B

Male Terminal Housing, 26 Circuits

278001062

Unavailable

16C

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

17

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

18A

Cap, 6 Circuits, Packard

278001330

Unavailable

18B

Fuse Holder Cap

278001326

$7.69

19

Fuse Holder

278001325

$8.79

20

Buss Bar, Packard

278001329

Unavailable

21

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001321

Unavailable

22

Male Housing, 2 Circuits, Molex

278001322

Unavailable

23

Secondary Lock, Packard

278001328

Unavailable

24

SEAL - Call your local BRP dealership

409013900

Unavailable
