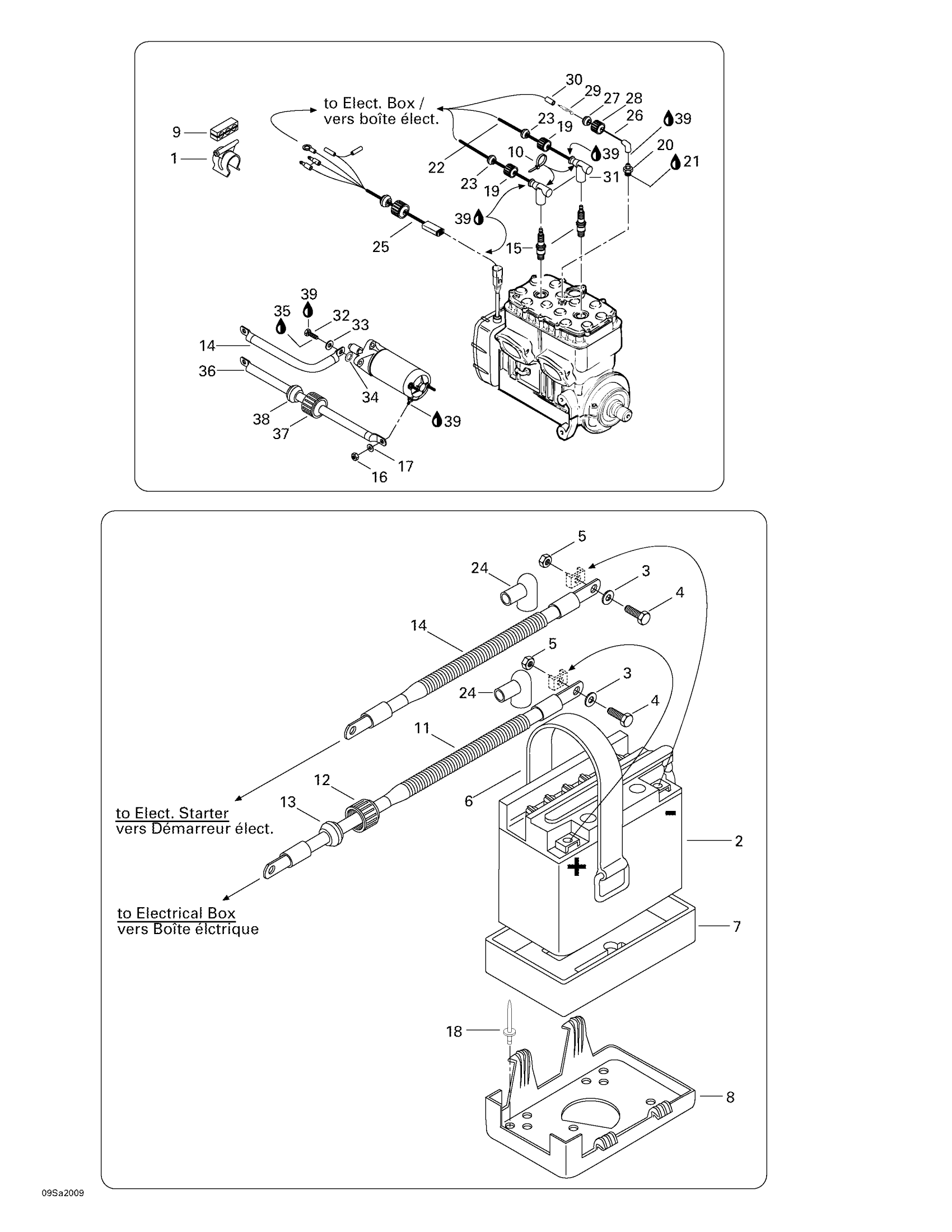

Sea-doo GTS, 5639, 2000 10- Electrical System Diagram

#

Description
Price

1

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

2

Battery 19A | Includes 5 to 8

278001756

$153.36

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Screw M6 X 16

207161644

$0.74

5

Hex. Nut M6

232061414

$0.53

6

Retainer Strap

293850097

$11.64

7

Battery Lower Pad

278001234

Unavailable

8

BATTERY SUPPORT - Call your local BRP dealership

278001580

Unavailable

9

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

10

Tie Wrap 142 mm

293750002

$1.25

11

Battery Cable (Red)

278000514

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

GROMMET - Call your local BRP dealership

278000098

Unavailable

14

Battery Ground Cable

278000681

Unavailable

15

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Stainless Flat Washer M6

234061600

$0.33

18

Avdel Rivet 3/16"

293150037

$0.56

19

Electric Wire Cap

278000100

Unavailable

20

Temperature Sensor

278000965

$73.99

21

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

22

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

23

Grommet

278000682

Unavailable

24

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

25

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

26

Temperature Harness Ass'y | Includes 26 - 30.

278001204

Unavailable

27

Grommet, 1 Circuit, Blue

293720030

Unavailable

28

Electric Wire Cap

278000100

Unavailable

29

Male Terminal

278000230

$4.39

30

Insulation Sheath

278000231

$5.08

31

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

32

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Starter Cable (Red) | Includes 51 - 53.

278000192

Unavailable

37

Electric Wire Cap

278000100

Unavailable

38

GROMMET - Call your local BRP dealership

278000098

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
