Partiron

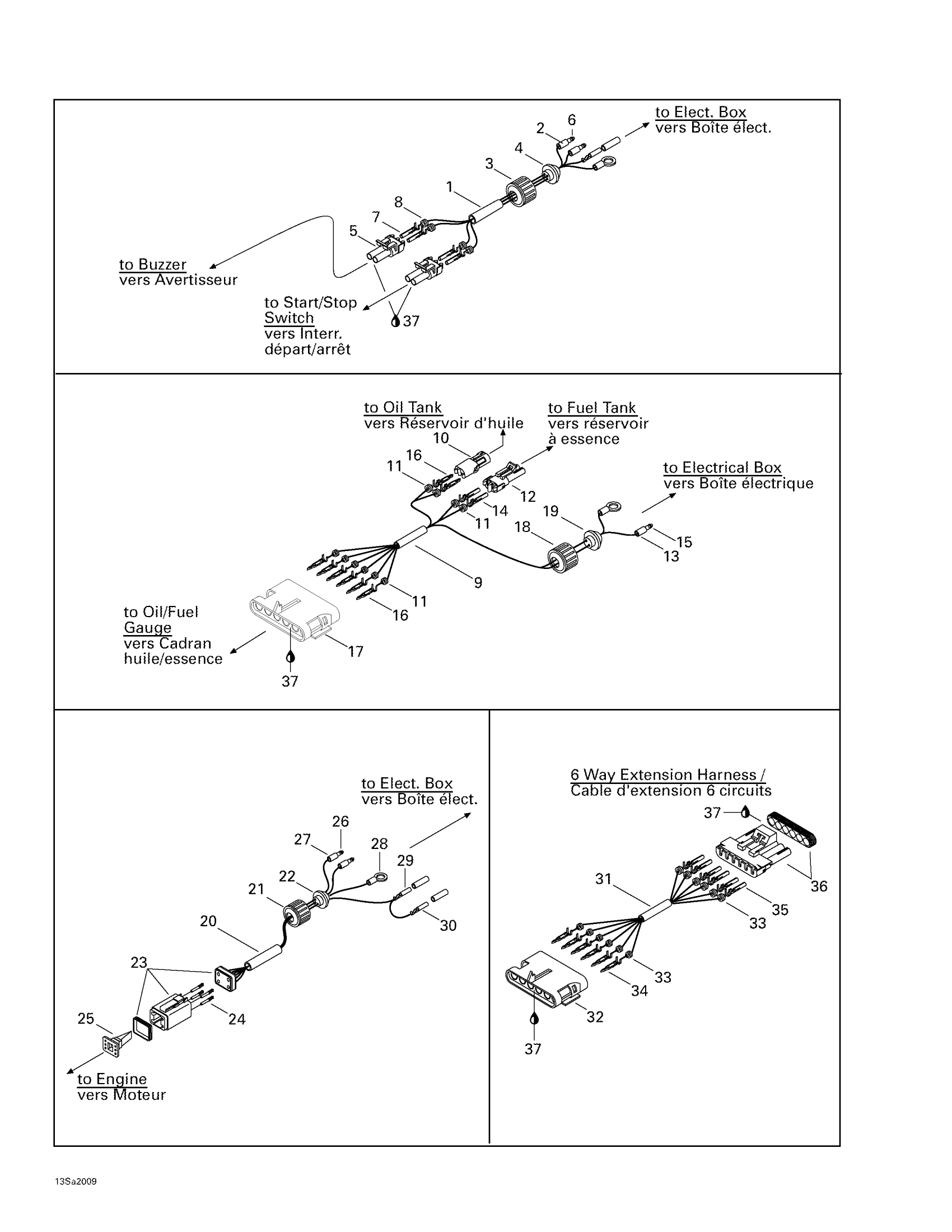

Sea-doo GTS, 5639, 2000 Electrical Harness Diagram

#

Description
Price

1

Buzzer-On/Off Switch Harness | Includes 1 - 8.

278000420

Unavailable

2

Insulation Sheath

278000231

$5.08

3

Electric Wire Cap

278000100

Unavailable

4

Grommet, 4 Circuit, Red

570026800

Unavailable

5

Male Connector, 2 Circuits

278000220

$15.49

6

Male Terminal

278000230

$4.39

7

Female Terminal

278000223

$3.19

8

Wire Seal

278000218

$4.39

9

Gauge Harness (6 Circuits) | Includes 9 - 19.

278000494

Unavailable

10

Female Housing, 2 Circuits

278000217

$9.59

11

Wire Seal

278000218

$4.39

12

Male Connector, 2 Circuits

278000220

$15.49

13

Insulation Sheath

278000231

$5.08

14

Female Terminal

278000223

$3.19

15

Male Terminal

278000230

$4.39

16

Male Terminal | XT Models

278000222

$3.19

17

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

18

Electric Wire Cap

278000100

Unavailable

19

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

20

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

21

Electric Wire Cap

278000100

Unavailable

22

Grommet, 4 Circuit, Red

570026800

Unavailable

23

Male Connector, 4 Circuits | CE

278000739

$19.49

24

Female Terminal

278000632

$2.09

25

Male Lock, 4 Circuits | CE

278000738

$3.09

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001008

$3.28

28

Ring Terminal

278000300

Unavailable

29

Female Terminal | DS 650 X

278001009

$3.19

30

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

31

6 Circuits Harness | Includes 31 - 35.

278000495

Unavailable

32

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

33

Wire Seal

278000218

$4.39

34

Male Terminal | XT Models

278000222

$3.19

35

Female Terminal

278000223

$3.19

36

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
