- Partiron
- OEM Parts
- Sea-doo
- Watercraft
- 2000
- GTS
- GTS, 5639, 2000
10- Electrical Accessories

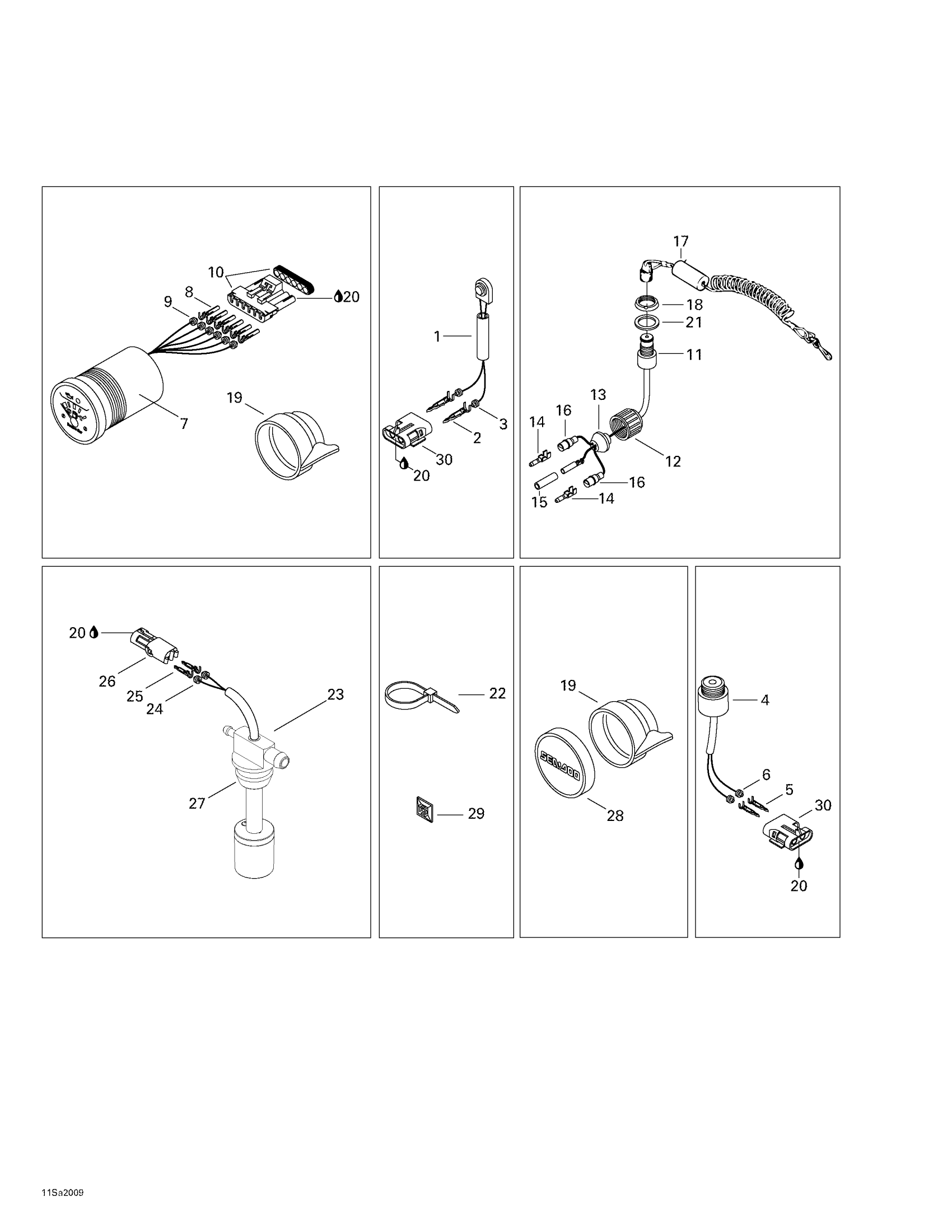

Sea-doo GTS, 5639, 2000 10- Electrical Accessories Diagram
#
Description
Price
1
SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.
278000427
Unavailable
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Buzzer Ass'y | Includes 15 - 17.
278001564
Unavailable
5
Male Terminal | XT Models
278000222
$3.19
6
Wire Seal
278000218
$4.39
7
Oil/Fuel Level Gauge | Includes 7 - 10.
278001338
Unavailable
8
Female Terminal
278000223
$3.19
9
Wire Seal
278000218
$4.39
10
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
11
SAFETY SWITCH - Call your local BRP dealership | Includes 11 - 16.
278000638
Unavailable
12
Electric Wire Cap
278000100
Unavailable
13
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership
278000193
Unavailable
14
Male Terminal
278000230
$4.39
15
Insulated Sheath
278001007
$3.58
16
Insulated Sheath
278001008
$3.28
17
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
18
Safety Nut (DESS Switch)
278002963
$3.28
19
GAUGE SUPPORT - Call your local BRP dealership
293720005
Unavailable
20
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
21
WASHER - Call your local BRP dealership
211200027
Unavailable
22
Tie-Rap 180 mm
414115200
$0.11
23
Oil Level Sensor Ass'y | Includes 21 - 25.
278001289
Unavailable
24
Wire Seal
278000218
$4.39
25
Male Terminal | XT Models
278000222
$3.19
26
Female Housing, 2 Circuits
278000217
$9.59
27
Grommet
293720008
$14.75
28
Gauge Cap
269700062
Unavailable
29
Tie-rap Mount
293750010
Unavailable
30
Female Housing, 2 Circuits
278000217
$9.59
