- GTS, 5639, 2000
09- Seat And Engine Cover

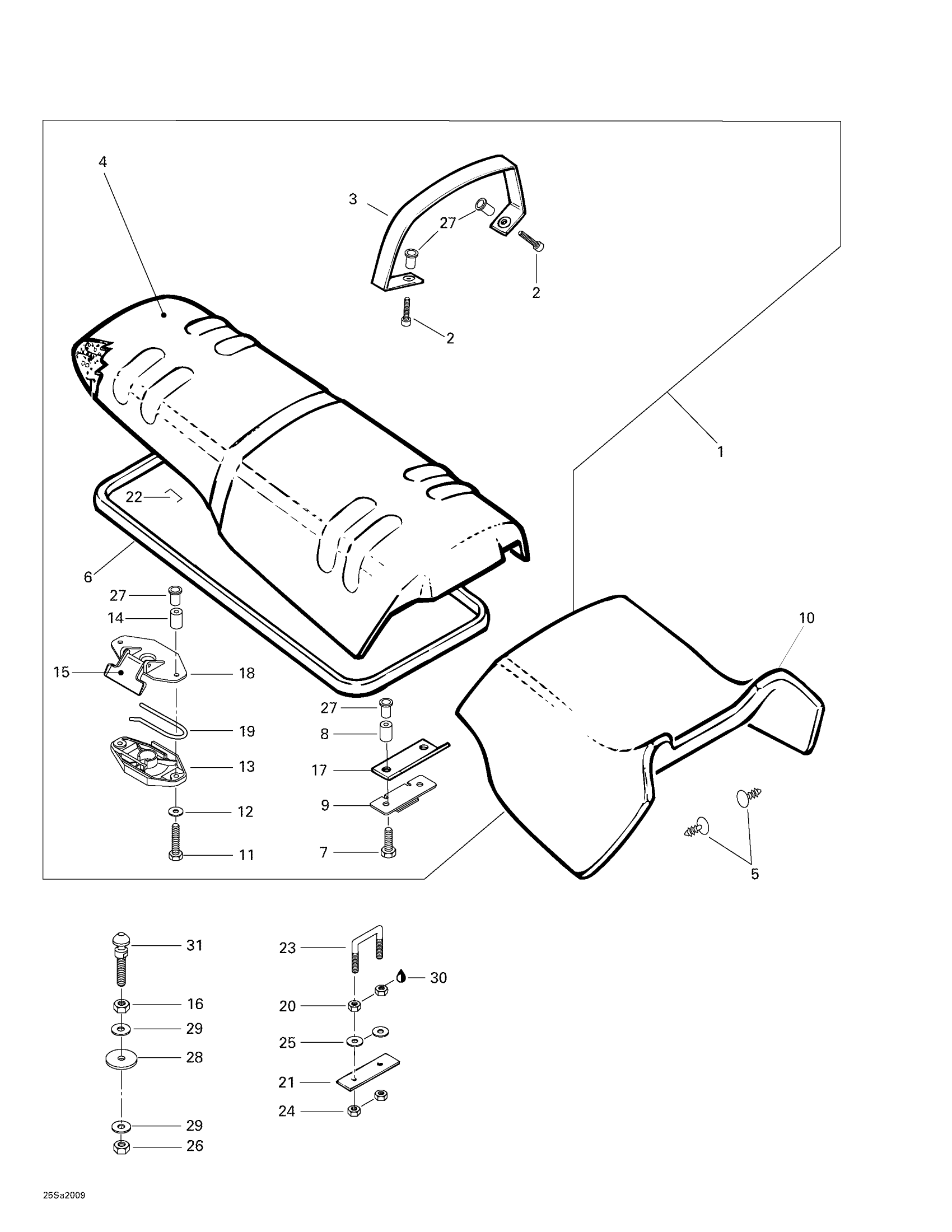

Sea-doo GTS, 5639, 2000 09- Seat And Engine Cover Diagram
#
Description
Price
1
Seat Ass'y
269000656
Unavailable
2
Socket Head Screw M6 X 10, Scotch Grip
205961060
$1.48
3
Seat Strap
269000565
Unavailable
4
Seat Cover and Foam
269000540
Unavailable
5
Black Dart
293730010
$0.99
6
Was 293200017 Neoprene Seal
219704365
$149.99
7
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
8
SPACER - Call your local BRP dealership
291000176
Unavailable
9
Base Keeper
291000174
$19.99
10
Front Seat Ass'y
269000564
Unavailable
11
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
12
Stainless Flat Washer M6
234061600
$0.33
13
Latch Ass'y
269700109
$24.99
14
SPACER - Call your local BRP dealership
291000177
Unavailable
15
Latch Ass'y
269700109
$24.99
16
Hex. Jam Nut M10
232100600
$2.22
17
PROTECTION PLATE - Call your local BRP dealership
269000043
Unavailable
18
Latch Ass'y
269700109
$24.99
19
Latch Spring
269700017
$9.19
20
Hex. Nut M6
232061600
$1.15
21
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
22
Staple
293730005
Unavailable
23
SEAT HOOK - Call your local BRP dealership
291000468
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Flat Washer M6, Stainless
234062600
$0.77
26
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
27
Nut Welded, M6
293100003
$9.12
28
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
29
Flat Washer 10 mm, Stainless
234002600
$2.22
30
Loctite 271, 10 ml
293800005
$26.99
31
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
