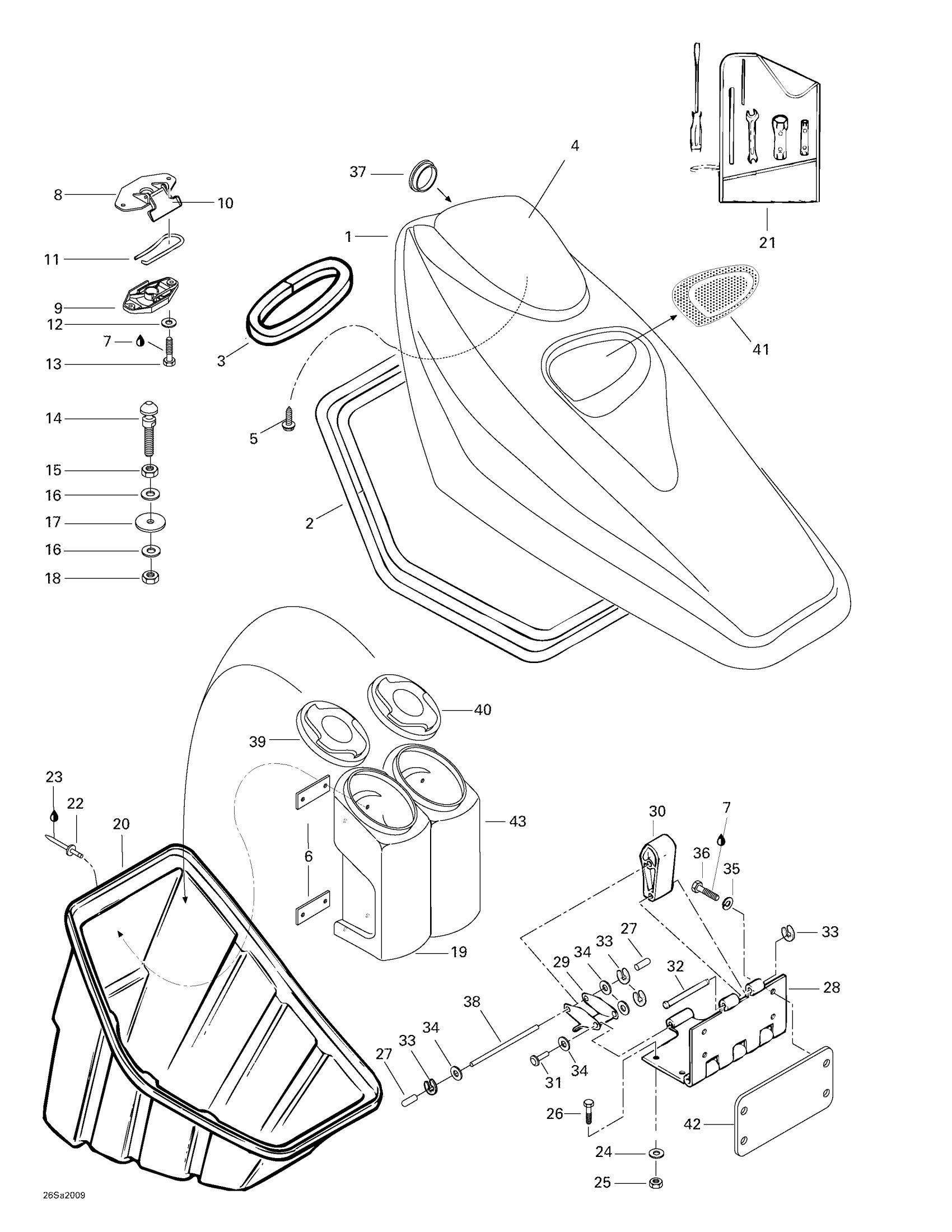

Sea-doo GTS, 5639, 2000 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover (Bright Violet)

269500353

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

Seal Tray

293200031

Unavailable

4

Deflector (Bright Violet)

269500356

Unavailable

5

SCREW-SPECIAL - Call your local BRP dealership

211000073

Unavailable

6

GASKET - Call your local BRP dealership

293250037

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Latch Ass'y

269700109

$24.99

9

Latch Ass'y

269700109

$24.99

10

Latch Ass'y

269700109

$24.99

11

Latch Spring

269700017

$9.19

12

Stainless Flat Washer M6

234061600

$0.33

13

Hex. Screw M6 X 30

207063060

$1.89

14

LATCH STUD - Call your local BRP dealership

291000690

Unavailable

15

Hex. Jam Nut M10

232100600

$2.22

16

Flat Washer 10 mm, Stainless

234002600

$2.22

17

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

18

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

19

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

20

Storage Tray

269500152

Unavailable

21

Owners Tool Kit

295500783

Unavailable

22

Rivet

293150017

Unavailable

23

Silicone Sealant 51388, 300 ml

296000309

$36.99

24

Flat Washer M6, Stainless

234062600

$0.77

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Hex. Forming Screw M6 X 20

207162060

$1.29

27

Short Cap

293000025

Unavailable

28

Hinge

269500306

Unavailable

29

Spring

269000023

Unavailable

30

Latch

269000025

Unavailable

31

Short Pin

269000026

Unavailable

32

Long Pin

269000027

Unavailable

33

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

34

Stainless Flat Washer M6

234061600

$0.33

35

Lock Washer Helical M6

234161601

$1.15

36

Hex. Screw M6 X 25

207162560

$1.47

37

Gauge Cap

269700062

Unavailable

38

Pin

269500069

Unavailable

39

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

40

Storage Cap

269500604

Unavailable

41

Intake Grille (Black)

269500165

Unavailable

42

Spacer

269500063

Unavailable

43

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable
