- GTS, 5639, 2000
09- Body, Rear View

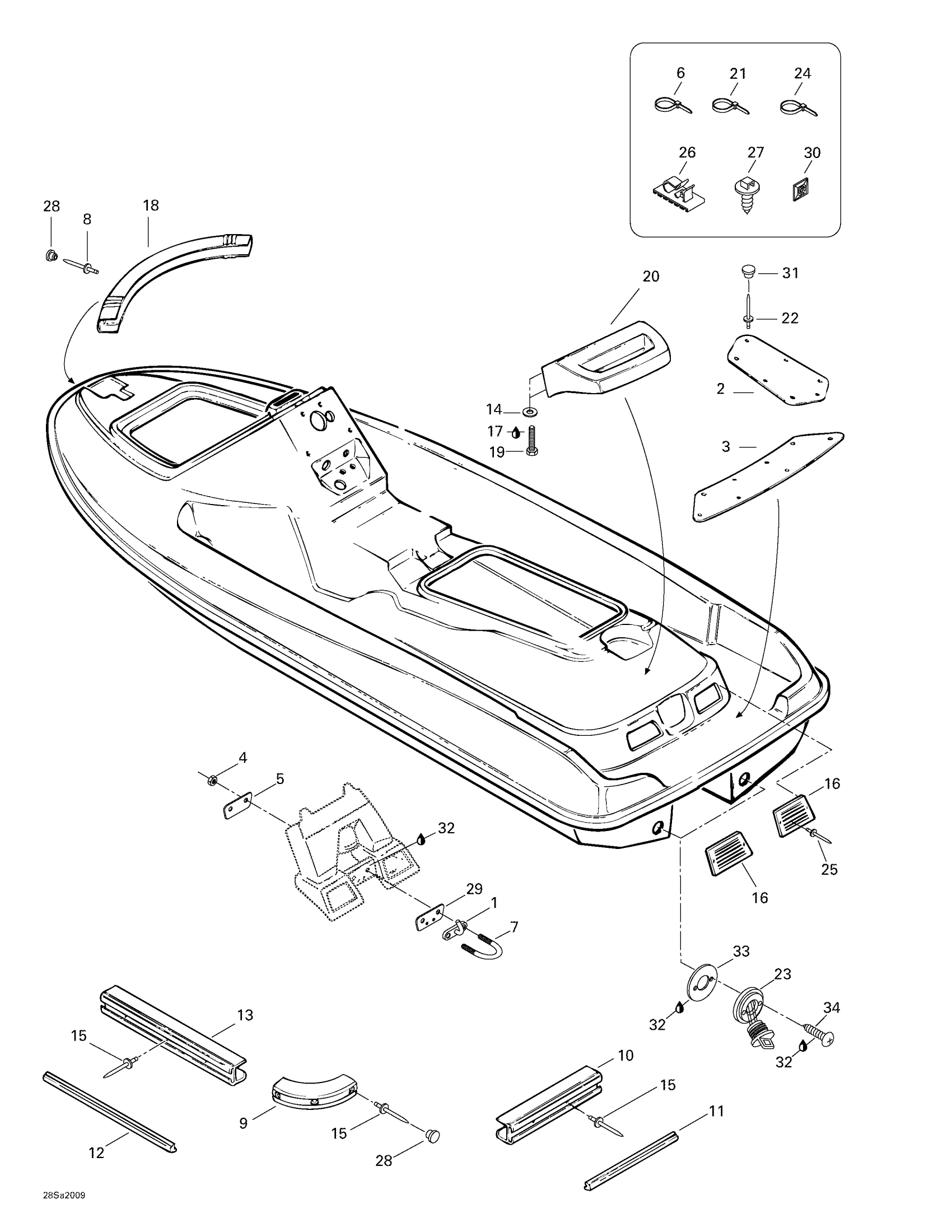

Sea-doo GTS, 5639, 2000 09- Body, Rear View Diagram
#
Description
Price
1
Hook | Package LTD
291002351
$69.99
2
RH Carpet (Violet)
291000523
Unavailable
LH Carpet (Violet)
291000524
Unavailable
3
Rear Carpet (Violet)
291000525
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
6
Tie-Rap 180 mm
414115200
$0.11
7
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
8
Pop Rivet 3/16"
293150013
$1.37
9
BUMPER CORNER (VIOLET) - Call your local BRP dealership
291000394
Unavailable
10
Rear Bumper (Violet)
291000508
Unavailable
11
REAR BUMPER TRIM (VIOLET) - Call your local BRP dealership
291000625
Unavailable
12
SIDE BUMPER TRIM (VIOLET) - Call your local BRP dealership
291000623
Unavailable
13
Side Bumper (Violet)
291000507
Unavailable
14
Flat Washer M6, Stainless
234062600
$0.77
15
Pop Rivet 3/16"
293150014
$1.09
16
Rear Intake Grill (Violet)
291000528
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
Nose Bumper (Violet)
291000506
Unavailable
19
Hex. Forming Screw M6 X 20
207162060
$1.29
20
Grab Handle (Violet)
295500162
Unavailable
21
Tie Wrap 368 mm
293750008
$1.04
22
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
23
Drain Plug
292000187
$14.49
24
Tie Wrap 142 mm
293750002
$1.25
Tie-Rap 180 mm
414115200
$0.11
25
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
26
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
27
Mount Dart
293730040
$1.04
28
Bumper Plug, Black
291000339
$2.99
29
Finition Plate
291000426
Unavailable
30
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
31
Black, Snap Cap
293000014
$1.09
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
GASKET - Call your local BRP dealership
293250030
Unavailable
34
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
