- GTS, 5639, 2000
07- Steering System

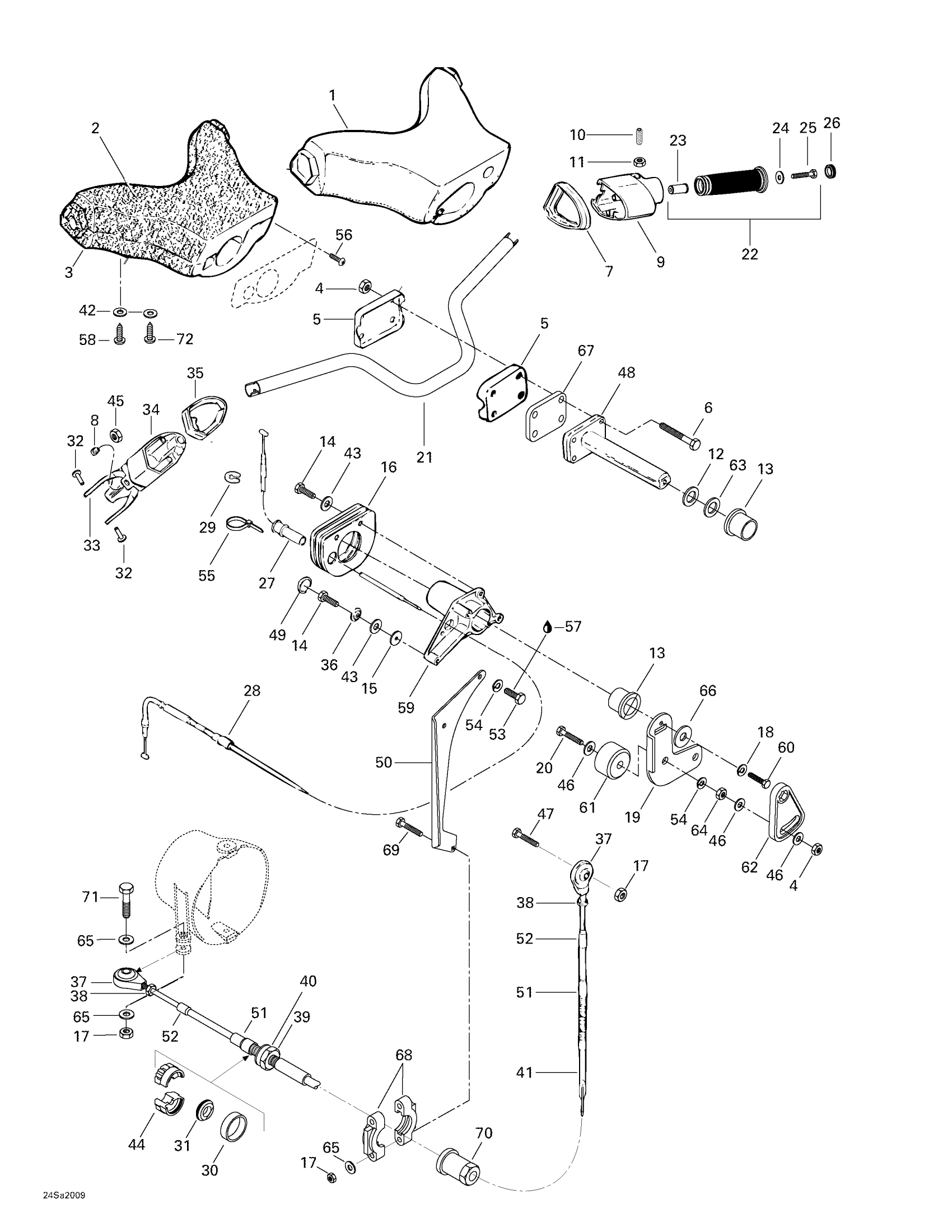

Sea-doo GTS, 5639, 2000 07- Steering System Diagram
#
1
Steering Cover
277000260
Unavailable
2
TOP FOAM - Call your local BRP dealership
277000145
Unavailable
3
Bottom Foam
277000146
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
6
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
7
LH Adapter
277000341
Unavailable
8
SCREW-SET SOCKET DIN.916A2 - Call your local BRP dealership
206561060
Unavailable
9
LH HOUSING ASS'Y - Call your local BRP dealership
277000221
Unavailable
10
Set Screw M6 x 10
216561060
Unavailable
11
Hex. Nut M6
232160600
$1.15
12
Spring Washer
211200008
Unavailable
13
Bushing
293900002
Unavailable
14
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
15
Plastic Washer
277000100
Unavailable
16
Collar (Black)
277000091
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
Lock Washer 8 mm, Stainless
234181601
$0.55
19
Steering Stem Arm
277000493
Unavailable
20
Hex. Screw M8 X 45
207084560
$3.38
21
Handlebar
277000824
Unavailable
22
Handle Grip Kit | Includes 22 - 26.
295500692
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Flat Washer M6, Stainless
234062600
$0.77
25
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
26
Black, Cap
277000203
$9.39
27
Grommet
293720014
Unavailable
28
Throttle Cable
277000710
Unavailable
29
Circlip 5 mm
293370002
$5.50
30
Retaining Ring
211100010
Unavailable
31
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
32
PIN - Call your local BRP dealership
277000381
Unavailable
33
Throttle Handle
277000472
Unavailable
34
THROTTLE HANDLE HOUSING - Call your local BRP dealership
277000222
Unavailable
35
Throttle Adapter
277000084
Unavailable
36
Retaining Washer
277000096
Unavailable
37
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
38
Hex. Nut
212100005
$1.35
39
Hex. Jam Nut 1/2-20
211100011
Unavailable
40
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
41
Steering Cable
271000436
Unavailable
42
Flat Washer M5, Stainless
234051600
$0.77
43
Flat Washer 8 mm, Stainless
234082600
$2.43
44
Half-Ring
277000168
Unavailable
45
Hex. Nut M6
232160600
$1.15
46
Stainless, Flat Washer 8 mm
234081600
$0.55
47
Hex. Screw M6 X 30
207063060
$1.89
48
Steering Stem
277000223
Unavailable
49
Snap Cap
210000019
Unavailable
50
Cable Support
277000457
Unavailable
51
Boot, Large
277000473
Unavailable
52
Boot, Small
277000466
Unavailable
53
Hex. Screw M8 X 16
207181660
Unavailable
54
Lock Washer 8 mm, Stainless
234181601
$0.55
55
Tie Wrap 142 mm
293750002
$1.25
56
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
57
Loctite 243, 10 ml
293800060
$21.49
58
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
59
Steering Support
277000115400
Unavailable
60
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
61
Stopper Bushing
277000097
Unavailable
62
Lock Plate
277000201
Unavailable
63
SHIM - Call your local BRP dealership
293350006
Unavailable
64
Hex. Nut M8
232081600
$1.47
65
Stainless Flat Washer M6
234061600
$0.33
66
Washer
211200001
Unavailable
67
Spacer
277000436
Unavailable
68
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
69
Bolt-Carriage M6 x 60
207766060
Unavailable
70
KNOB ADJUSTER - Call your local BRP dealership
277000167
Unavailable
71
Hex. Screw M6 X 40
207064060
$1.69
72
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
