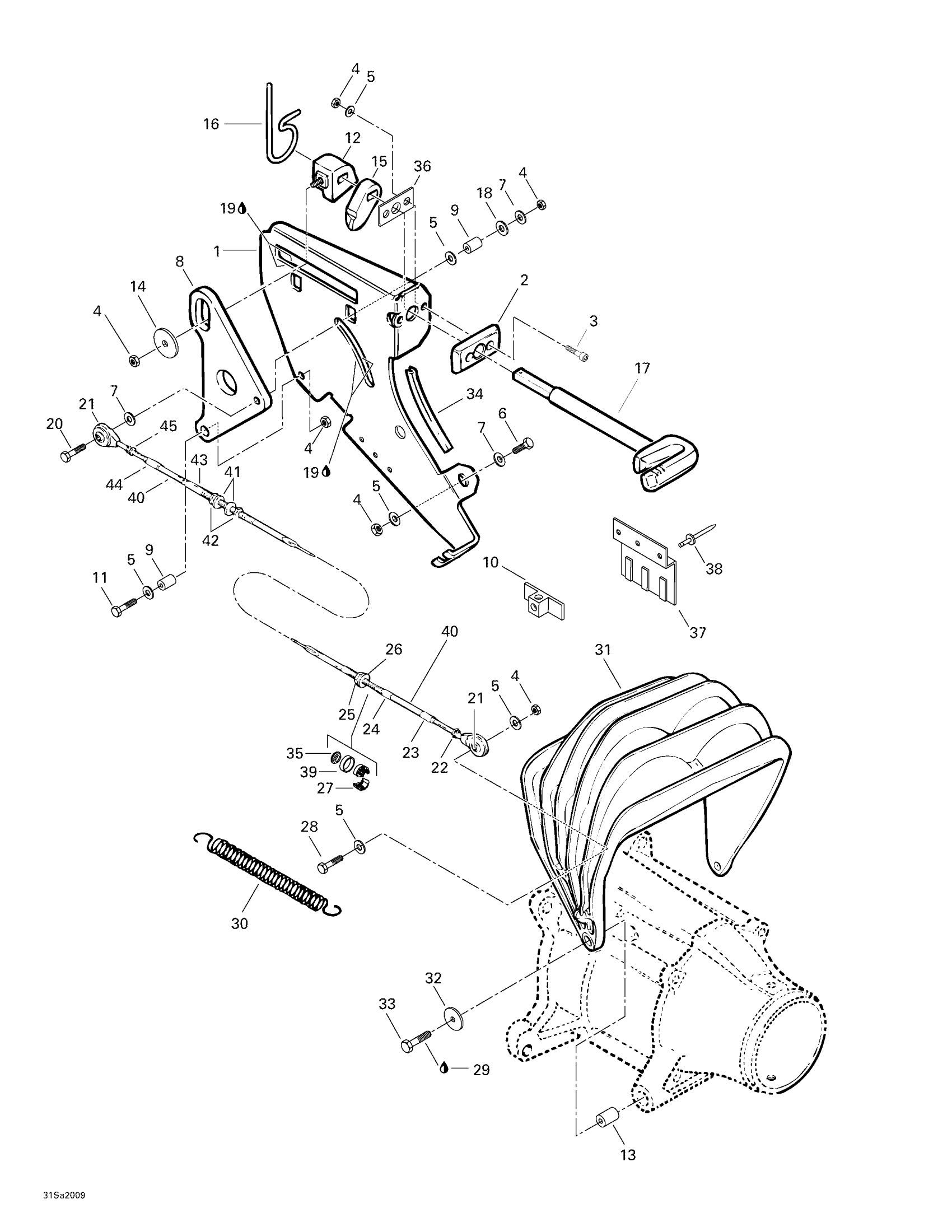

Sea-doo GTS, 5639, 2000 05- Reverse Diagram

#

Description
Price

1

Reverse Support Plate

271000572

Unavailable

2

Guide Plate

271000057

Unavailable

3

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Stainless Flat Washer M6

234061600

$0.33

6

Hex. Forming Screw M6 X 20

207162060

$1.29

7

Flat Washer M6, Stainless

234062600

$0.77

8

TRIANGULAR LEVER - Call your local BRP dealership

271000119

Unavailable

9

Bushing

271000059

Unavailable

10

Tie-rap Mount

293750010

Unavailable

11

Hex. Screw M6 X 25

207162560

$1.47

12

Sliding Block

271000269

Unavailable

13

Bushing

271000152

Unavailable

14

Washer

271000061

Unavailable

15

Catch

271000268

Unavailable

16

Spring

271000270

Unavailable

17

Reverse Handle

271000288

Unavailable

18

Flat Washer 10 mm

217001000

Unavailable

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Hex. Screw M6 X 40

207064060

$1.69

21

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

22

Hex. Nut

212100005

$1.35

23

Small Boot

277000038

Unavailable

24

LARGE BOOT - Call your local BRP dealership

277000039

Unavailable

25

Hex. Jam Nut 1/2-20

211100011

Unavailable

26

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

27

Half-Ring

277000168

Unavailable

28

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

Spring

271000083

Unavailable

31

Reverse Gate (Black)

271000149

Unavailable

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

Hex. Screw M8 X 35

207083560

$1.47

34

Was 271000110 Protection Trim

219704353

$15.99

35

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

36

Gasket

293250051

Unavailable

37

Housing Index

278000318

Unavailable

38

Pop RIvet 1/8 X ,375

293150285

$0.33

39

Retaining Ring

211100010

Unavailable

40

STEERING/REVERSE CABLE - Call your local BRP dealership | Includes 40 - 45.

277000249

Unavailable

41

Flat Washer

213200017

Unavailable

42

Hex. Jam Nut

212100006

Unavailable

43

Large Boot

277000277

Unavailable

44

SMALL BOOT - Call your local BRP dealership

277000278

Unavailable

45

Hex. Nut

212100005

$1.35
