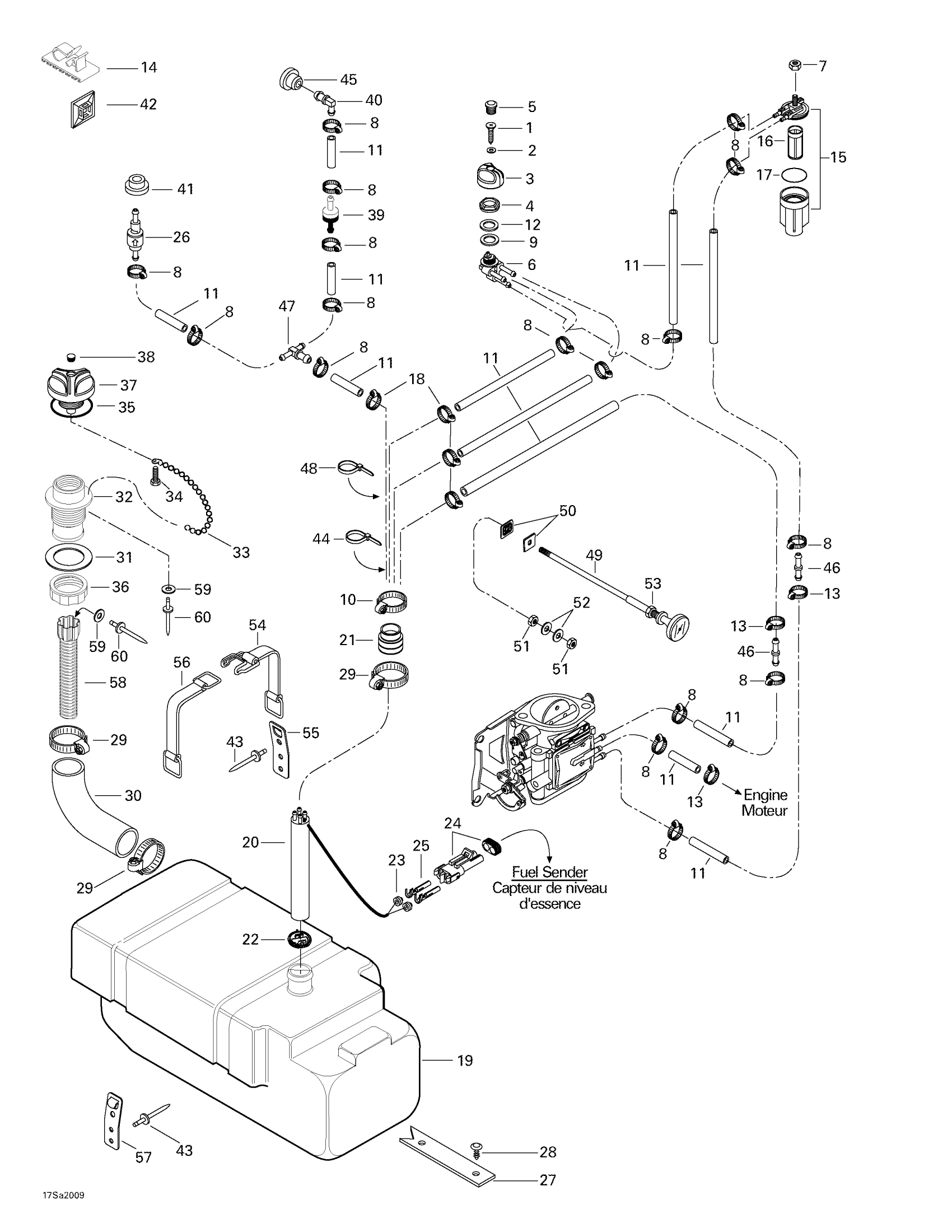

Sea-doo GTS, 5639, 2000 02- Fuel System Diagram
#
1
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
2
Flat Washer 4 mm
234040600
$0.55
3
FUEL VALVE KNOB - Call your local BRP dealership
275500299
Unavailable
4
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
5
Black, Cap
275500241
$3.49
6
Fuel Valve
275500098
$43.99
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
Oetiker Clamp
293650042
$3.09
9
GASKET - Call your local BRP dealership
293250004
Unavailable
10
Tridon Clamp
293650035
$7.29
11
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
12
Gasket
293250005
Unavailable
13
Tridon Gear Clamp
293650170
$1.99
14
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
15
Fuel Filter Ass'y | Includes 15 - 17.
275500088
$42.49
16
FUEL FILTER - Call your local BRP dealership
275500089
Unavailable
17
O-Ring
275500090
$8.79
18
Tridon Gear Clamp
293650170
$1.99
19
FUEL TANK - Call your local BRP dealership
275500183
Unavailable
20
BAFFLE PICK UP - Call your local BRP dealership | Includes 20 - 22.
275500473
Unavailable
21
Tube Adapter
275500111
Unavailable
22
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
23
Wire Seal
278000218
$4.39
24
Male Connector, 2 Circuits
278000220
$15.49
25
Female Terminal
278000223
$3.19
26
CHECK VALVE - Call your local BRP dealership
275500479
Unavailable
27
Pad Rubber
293830033
Unavailable
28
Black, Dart
293730006
$0.99
29
Tridon Clamp
293650023
$13.49
30
Filler Neck Hose
275500211
Unavailable
31
Gasket
293250029
$14.82
32
Filler Neck
275500247
Unavailable
33
Oil Cap Chain
275500015
Unavailable
34
Screw K40 X 10
241140060
$1.48
35
GASKET - Call your local BRP dealership This part replaces 293250075.
293250211
Unavailable
36
Filler Neck Nut, Fuel
211100012
$14.22
37
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
38
Black, Snap Cap
293000034
$9.39
39
Check Valve
275500398
$10.99
40
Male Connector
414580700
$4.12
41
Grommet
293720029
$1.59
42
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
43
Avdel Rivet 3/16"
293150037
$0.56
44
Tie Wrap 368 mm
293750008
$1.04
45
Grommet
709200285
$9.69
46
Straight Fitting
293710039
$7.59
47
T-Fitting | Europe
293710024
$14.75
48
Tie-Rap 180 mm
414115200
$0.11
49
Choke Cable | Includes 49 - 53.
270000324
Unavailable
50
Choke Plate
291000457
Unavailable
51
Hex. Nut M6
232160600
$1.15
52
Stainless Flat Washer M6
234061600
$0.33
53
NUT-HEXAGONAL HI-LEX - Call your local BRP dealership
211100030
Unavailable
54
Strap | Includes 69 - 70.
293850025
Unavailable
55
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
56
Fuel Tank Strap | Includes 48 - 49.
293850026
Unavailable
57
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
58
Filler neck (Inner)
275500316
Unavailable
59
Flat Washer M3, Stainless
234032600
$0.55
60
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
