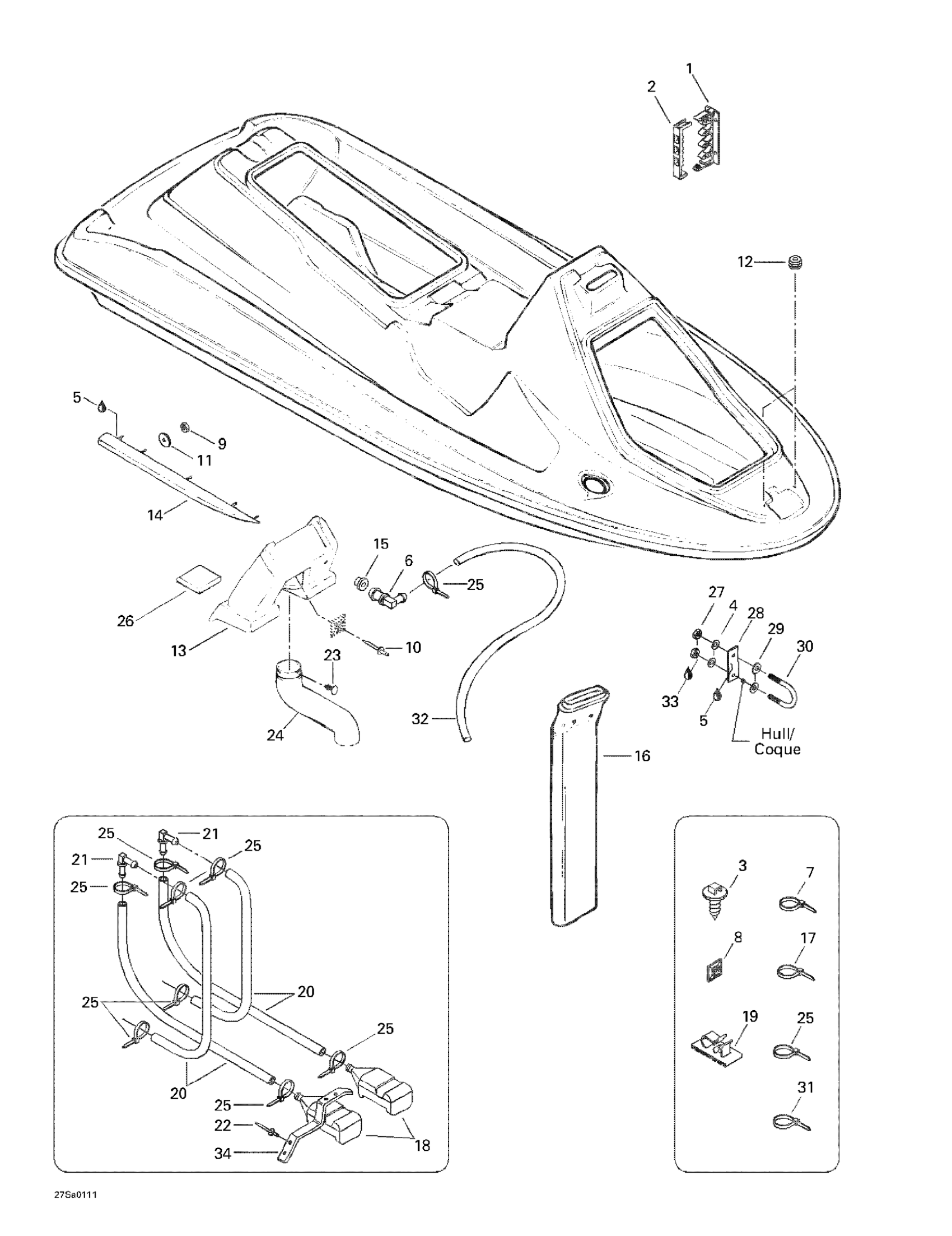

Sea-doo GTS, 5551, 2001 Body, Front View Diagram

#

Description
Price

1

Tie Mount

293750013

Unavailable

2

Tie Mount Top

293750012

Unavailable

3

Mount Dart

293730040

$1.04

4

Lock Washer 8 mm, Stainless

234181601

$0.55

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

ELBOW FITTING 90 DEG - Call your local BRP dealership

293710023

Unavailable

7

Tie Wrap 142 mm

293750002

$1.25

8

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership

293150034

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

Grommet

293720035

Unavailable

13

Vent Baffle

291000234

Unavailable

14

RH Sponson

292000535

Unavailable

LH Sponson

292000536

Unavailable

15

Grommet

709200285

$9.69

16

Vent Hose

291000332

Unavailable

17

Tie Wrap 368 mm

293750008

$1.04

18

Bailer Screen

292000688

Unavailable

19

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Avdel Rivet 3/16"

293150037

$0.56

23

Black, Dart

293730006

$0.99

24

Rear Vent Hose

291000726

Unavailable

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Floater

291000185

Unavailable

27

Hex. Nut M8

232081600

$1.47

28

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

29

Flat Washer M8.5 x 18

293050001

$3.07

30

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

31

Tie-Rap 180 mm

414115200

$0.11

32

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

33

Loctite 271, 10 ml

293800005

$26.99

34

Spring Clip

292000392

Unavailable
