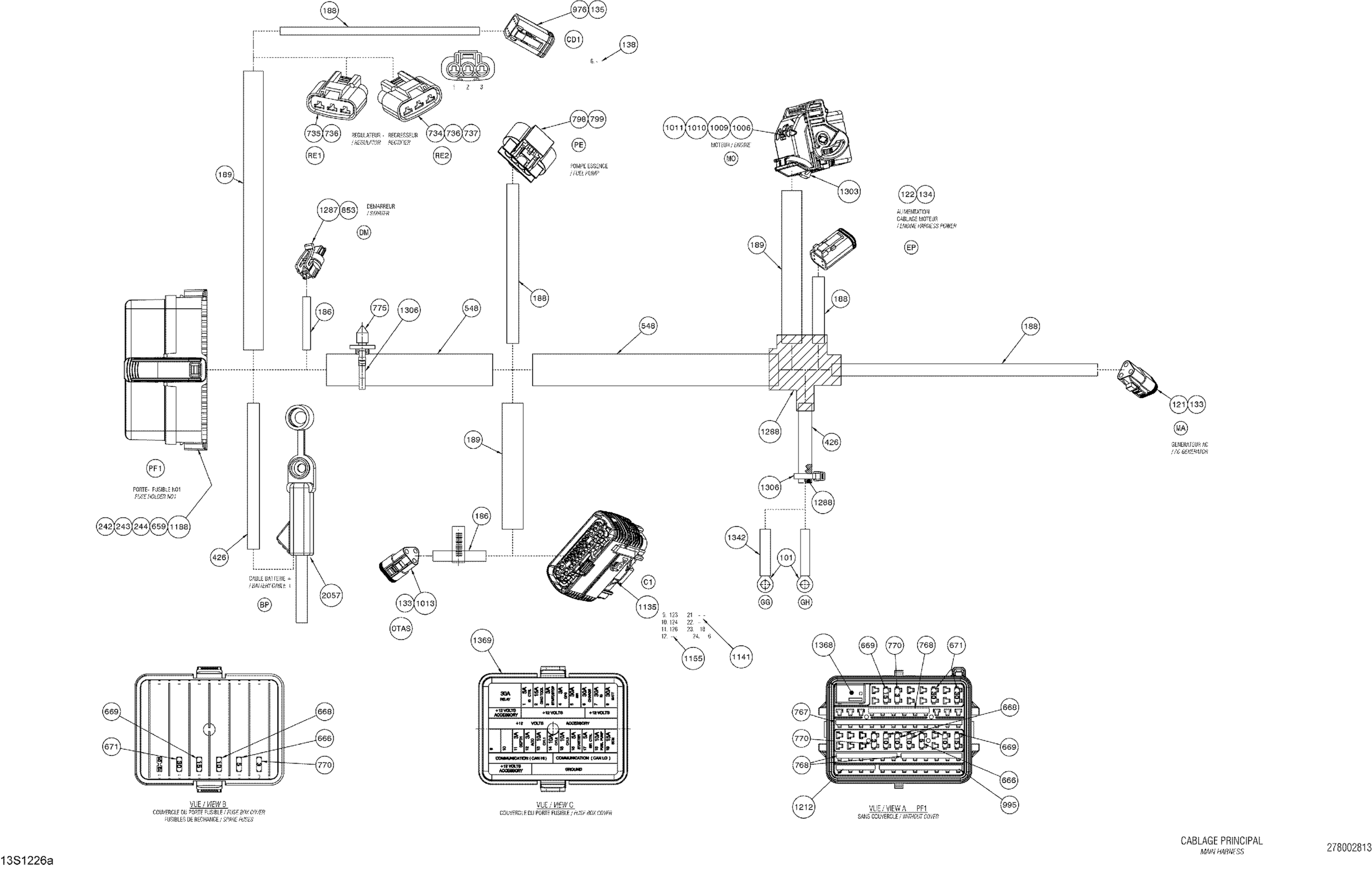

Sea-doo GTS 130 & Rental 99, 2012 Electrical Harness Main Diagram

#

Description
Price

1

Wiring Harness | Includes 101 To 2057

278002942

$909.32

101

Open Barrel Terminal

278001392

$4.00

112

Female Terminal

278000632

$1.69

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

122

Male Connector, 4 Circuits | CE

278000739

$14.92

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.82

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$2.55

242

Wire Seal

278000218

$3.48

243

Wire Seal

710000048

$5.10

244

Wire Seal

278000216

$2.55

659

Wire Seal

278001065

$5.85

666

Little Fuse, 5 Amperes

710000742

$7.24

668

Little Fuse, 10 Amperes

710000744

$7.24

669

Little Fuse, 15 Ampere

710000745

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

690

Female Terminal

710000890

$3.73

732

Female Terminal

710000877

$6.32

734

Female Housing, 3 Circuits

710000879

$21.42

735

Housing, 3 Circuits

710000880

$17.52

736

Seal

710000881

$14.27

737

Cap

710000882

$9.19

751

Female Terminal

710000918

$5.10

757

Female Terminal

278001665

$3.73

767

Bus Bar

278002165

$7.24

768

Bus Bar

278002165

$7.24

770

Little Fuse, 3 AMP

710001008

$2.98

775

Mount Dart

293730040

$0.86

798

Male Housing, 4 Circuits

278002185

$5.86

799

Wire Seal

278002186

$4.51

800

Female Terminal

278002187

$5.04

853

Wire Seal

710001163

$5.10

854

Female Terminal

710001164

$5.92

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

995

Bus Bar

278002165

$7.24

1006

Female Terminal Housing, 48 Circuits

710001588

$39.62

1007

Female Terminal

710001589

$1.79

1008

Female Terminal

710001590

$1.69

1009

Cover, 48 positions

710001591

$10.05

1010

Plug

710001592

$2.06

1011

Plug

710001593

$2.06

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

1032

Female Terminal

710001727

$2.55

1135

HOUSING - Call your local BRP dealership

278002451

Unavailable

1139

Female Terminal

278002455

$2.98

1141

Seal Plug

278002457

$9.54

1155

Fuse Base Ass'y This part replaces 278002878.

278002946

$27.27

1188

Fuse Base Ass'y This part replaces 278002878.

278002946

$27.27

1204

Female Terminal

278002578

$0.86

1212

Bus Bar

278002165

$7.24

1230

Female Terminal | Not Shown

278002642

$2.98

1342

Shrink Tubing, 6 mm

515177246

$0.99

1368

Relay 30 Amp

278003828

$9.78

1369

Fuse Cover This part replaces 278002529.

278002823

$12.06

2057

Battery Cable

278002815

$36.37
