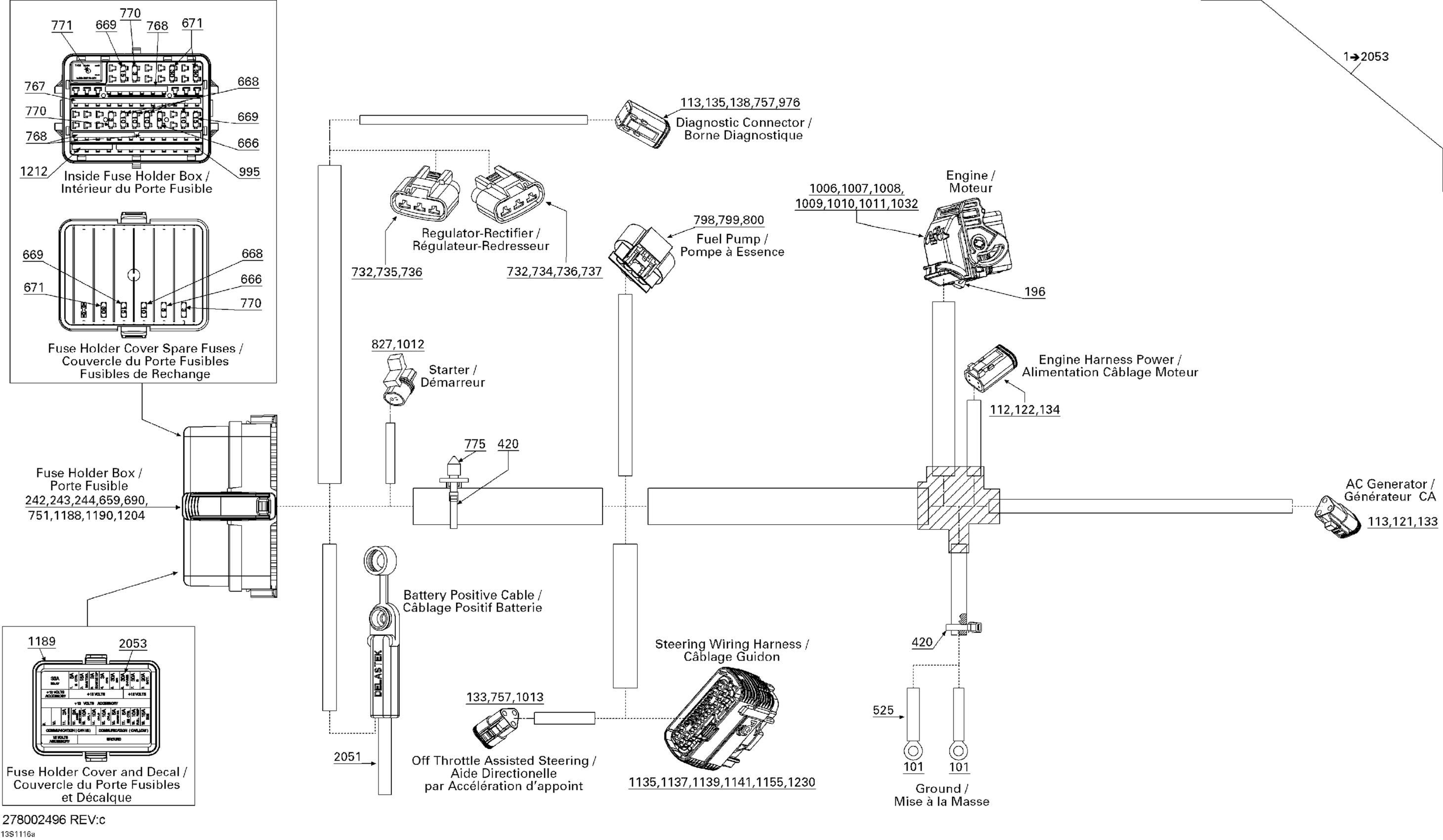

Sea-doo GTS 130 & Rental 99, 2012 Electrical Harness , Main Diagram

#

Description
Price

1

Wiring Harness | Includes 101 To 2057

278002942

$1.00

101

Open Barrel Terminal

278001392

$4.79

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

244

Wire Seal

278000216

$3.19

420

Tie-Rap 180 mm

414115200

$0.11

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

659

Wire Seal

278001065

$7.69

666

Little Fuse, 5 Amperes

710000742

$8.79

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

690

Female Terminal

710000890

$4.55

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

735

Housing, 3 Circuits

710000880

$21.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

751

Female Terminal

710000918

$7.69

757

Female Terminal

278001665

$4.55

767

Bus Bar

278002165

$8.79

768

Bus Bar

278002165

$8.79

770

Little Fuse, 3 AMP

710001008

$3.79

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

775

Mount Dart

293730040

$1.04

798

Male Housing, 4 Circuits

278002185

$7.90

799

Wire Seal

278002186

$5.50

800

Female Terminal

278002187

$6.39

827

Female Terminal

710001119

$5.39

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

995

Bus Bar

278002165

$8.79

1006

Female Terminal Housing, 48 Circuits

710001588

$48.49

1007

Female Terminal

710001589

$2.21

1008

Female Terminal

710001590

$2.09

1009

Cover, 48 positions

710001591

$12.18

1010

Plug

710001592

$2.21

1011

Plug

710001593

$2.21

1012

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

278002374

Unavailable

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

1032

Female Terminal

710001727

$3.19

1135

HOUSING - Call your local BRP dealership

278002451

Unavailable

1137

Female Terminal | Not Shown

278002453

$5.79

1139

Female Terminal

278002455

$3.79

1141

Not Available As Spare Part - Friction Washer

Unavailable

1155

Seal Plug

278002477

$6.56

1188

Fuse Base Ass'y This part replaces 278002878.

278002946

$33.99

1189

Fuse Cover This part replaces 278002529.

278002823

$14.83

1190

SEAL - Call your local BRP dealership

278002530

Unavailable

1204

Female Terminal

278002578

$1.04

1212

Bus Bar

278002165

$8.79

1230

Female Terminal | Not Shown

278002642

$3.79

2051

Battery Cable

278002815

$45.49

2053

FUSE DECAL (ENGLISH) - Call your local BRP dealership

219903391

Unavailable
