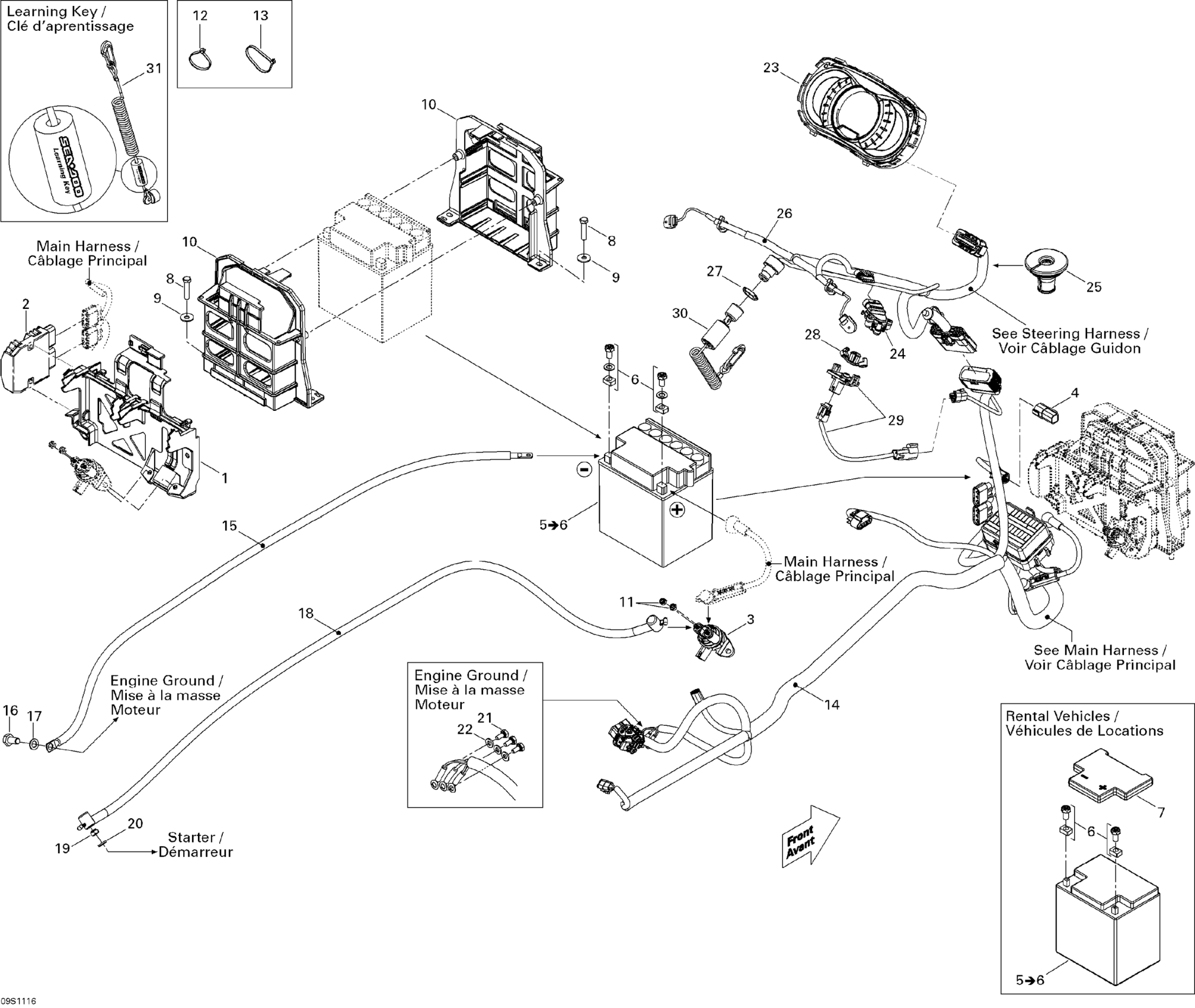

Sea-doo GTS 130 & Rental 99, 2011 Electrical System Diagram

#

Description
Price

1

Support

278003048

$21.99

2

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

3

Starter Relay

278003012

$42.49

4

Diagnostic Connector

278002704

$19.49

5

Battery, 30 Amperes

278001882

$184.01

5

Battery | Includes 900 to 900a

515176151

$219.99

6

Battery Bolt Kit

250000282

$7.29

6

Battery Bolt Kit

515176081

$6.99

7

Foam Pad

278002493

$10.49

8

Hex. Screw M8 X 40

207184060

$2.22

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Battery Support

278003306

$20.99

11

Elastic Stop Nut M6, Brass

232561200

$4.23

12

Tie-Rap 180 mm

414115200

$0.11

13

Tie Wrap 368 mm

293750008

$1.04

14

Wiring Harness | Includes 101 To 2057

278002942

$1.00

15

Battery Ground Cable

278003270

$41.49

16

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

17

Flat Washer 10 mm, Stainless

234000600

$1.46

18

Cable-Starter

278003398

$63.99

19

Elastic Stop Nut M6, Brass

232561200

$4.23

20

Stainless Flat Washer M6

234061600

$0.33

21

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

22

Stainless Flat Washer M6

234061600

$0.33

23

Cadran Info *Lcd Gauge This part replaces 278002506.

278002804

$659.99

24

Throttle Position Sensor

278002283

$119.99

25

Cable Grommet

293720092

$13.49

26

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 1 to 2045

278002503

Unavailable

27

Safety Nut (DESS Switch)

278002963

$3.28

28

O.T.A.S Actuator

278003537

$42.99

29

O.T.A.S. Sensor Ass'y

278003009

$109.99

30

Safety Lanyard, Antitheft

278002483

$58.49

31

Safety Lanyard, Learning Key

278002484

$56.99
