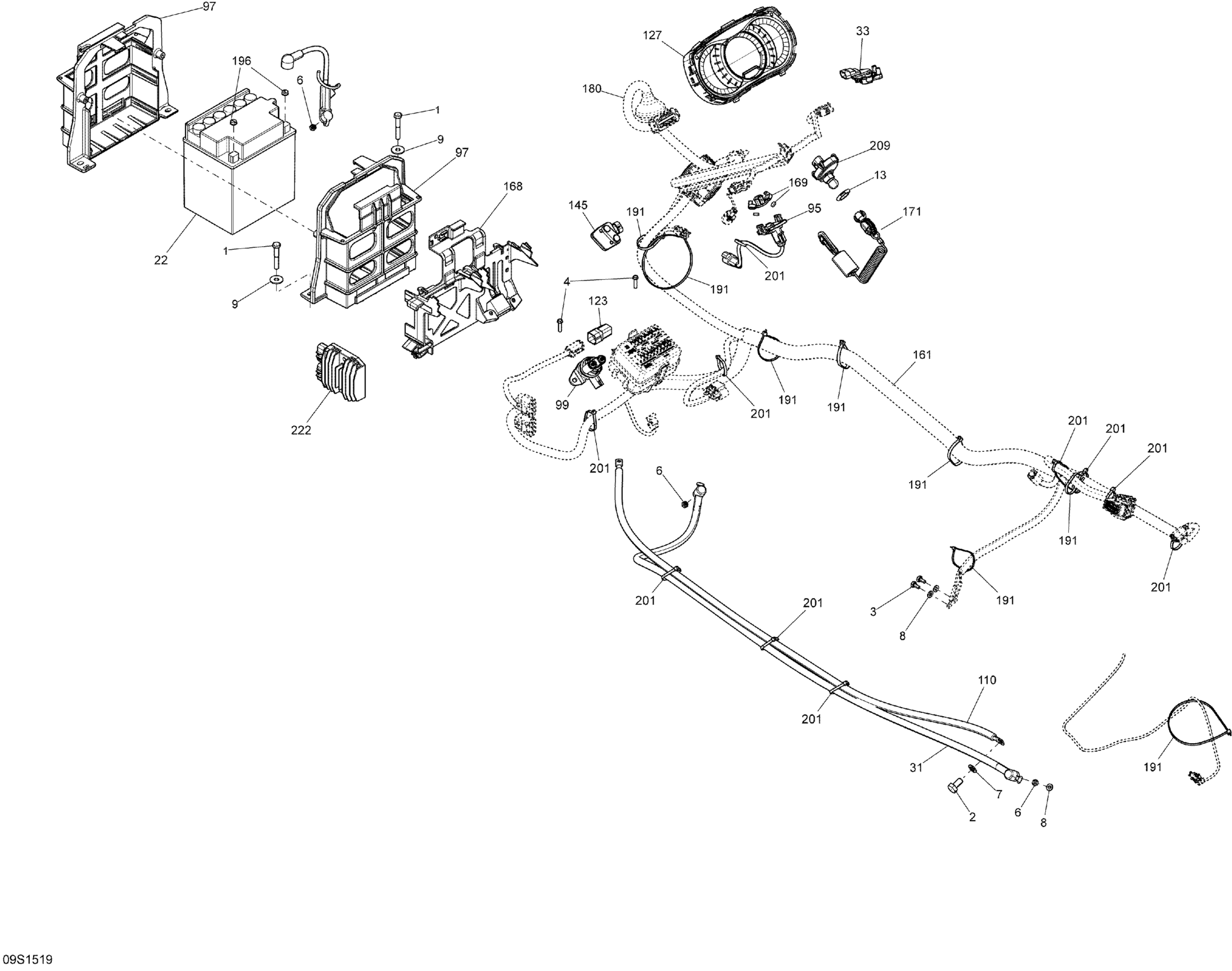

Sea-doo GTS 130 & Rental, 2015 Electrical System _09S1519 Diagram

HEX SCREW M8 X 50 - Call your local BRP dealership

207185060

$1.79

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.09

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

Hex. Screw 10-14 X 7/8”

211000023

$3.69

Elastic Stop Nut M6, Brass

232561200

$4.19

Flat Washer 10 mm, Stainless

234000600

$1.49

Stainless Flat Washer M6

234061600

$1.49

Flat Washer 8 mm, Stainless

234082600

$2.49

Safety Nut (DESS Switch)

278002963

$3.39

Battery, 30 Amperes

278001882

$171.95

Cable-Starter

278003398

$63.99

Throttle Position Sensor

278002283

$124.99

O.T.A.S. Sensor Ass'y

278003009

$109.99

Battery Support

278003306

$20.99

Starter Relay

278003012

$43.99

Battery Ground Cable

278003270

$41.49

Diagnostic Connector

278002704

$19.49

Central Information Cluster

278003101

$659.99

Switch LH Sport/Eco

278002768

$83.49

WIRING HARNESS MAIN - Call your local BRP dealership

278003255

Unavailable

Support

278003048

$21.99

O.T.A.S Actuator

278003537

$42.99

Anti-Theft Tether Cord

278003403

$74.99

Safety Lanyard Ass'y, Learning / RFID

278003401

$74.99

Steering Harness Ass'y | GTS

278003264

$319.99

Tie Wrap 368 mm

293750008

$1.49

Battery Bolt Kit

250000282

$7.49

Tie-Rap 180 mm

414115200

$1.49

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$139.99
