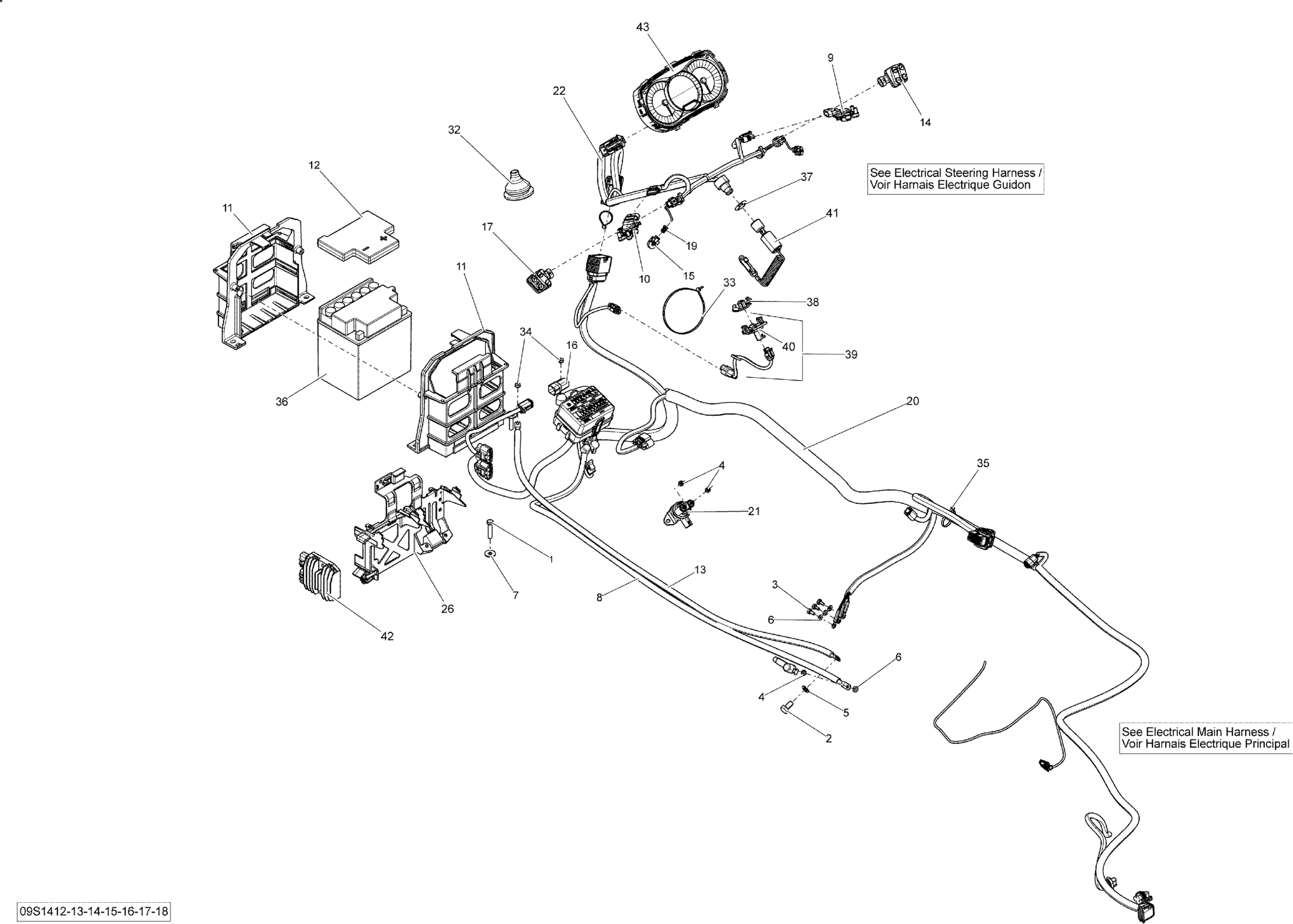

Sea-doo GTR 215, 2014 Electrical System _09S1417 Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$2.22

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Flat Washer 10 mm, Stainless

234000600

$1.46

6

Stainless Flat Washer M6

234061600

$0.33

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Cable-Starter

278003398

$63.99

9

Throttle Position Sensor

278002283

$119.99

10

LH Throttle Sensor

278002284

$119.99

11

Battery Support

278003306

$20.99

12

Not Available As Spare Parts

XXX

Unavailable

13

Battery Ground Cable

278003270

$41.49

14

Switch RH Mode/Set

278002602

$126.99

15

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

16

Diagnostic Connector

278002704

$19.49

17

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

19

Not Available As Spare Parts

XXX

Unavailable

20

Wiring Harness

278002943

$1.00

21

Starter Relay

278003012

$42.49

22

Wiring Harness Ass'y | Includes 15 and 32

278003081

$489.99

26

Support

278003048

$21.99

32

Cable Grommet

293720103

$13.49

33

Tie Wrap 368 mm

293750008

$1.04

34

Battery Bolt Kit

250000282

$7.29

35

Tie-Rap 180 mm

414115200

$0.11

36

Battery, 30 Amperes

278001882

$184.01

37

Safety Nut (DESS Switch)

278002963

$3.28

38

O.T.A.S Actuator

278003537

$42.99

39

O.T.A.S. Sensor Ass'y

278003009

$109.99

40

O.T.A.S. Sensor

278003008

$109.99

41

Safety Lanyard, Antitheft

278002483

$58.49

41

Safety Lanyard, Learning Key

278002484

$56.99

42

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

43

LCD Gauge | Model GTI LTD 155

278003378

$1.00
