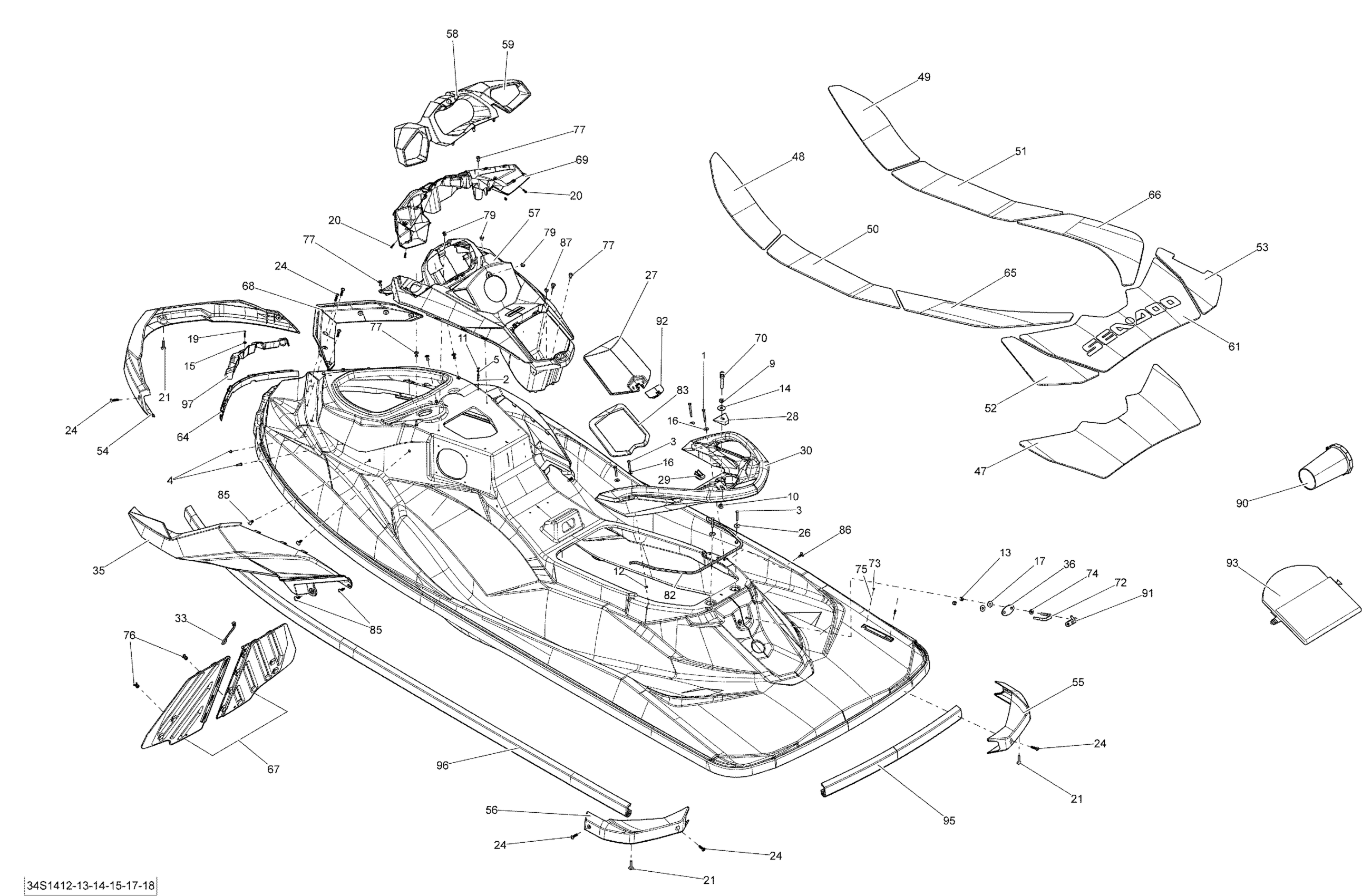

Sea-doo GTR 215, 2014 Body _34S1417 Diagram

#

Description
Price

1

Hex. Screw M6 x 55

207065560

$1.01

2

Hex. Flange Screw M5 X 30

207153060

$1.99

3

Hex. Screw M6 X 40

207164060

$3.38

4

Hex. Screw 10-14 X 7/8”

211000023

$3.59

5

Flat Washer | XT

211200035

$0.55

9

Hex. Jam Nut M10

232100600

$2.22

10

Elastic Stop Nut M10, Brass

232501200

$2.64

11

Elastic Stop Nut 5 mm

232551200

$1.47

12

Elastic Stop Nut M6, Brass

232561200

$4.23

13

Hex. Elastic Nut M8 Brass

232581200

$2.22

14

Flat Washer 10 mm, Stainless

234002600

$2.22

15

Flat Washer 4 mm, Stainless

234042600

$1.15

16

Flat Washer M6, Stainless

234062600

$0.77

17

Flat Washer 8 mm, Stainless

234082600

$2.43

19

Hex. Flange Screw K40 X 25

241142560

$2.64

20

Flange Torx Screw K40 X 16

250000287

$2.11

21

Hexagonal Cap Screw M6 X35

250000399

$4.44

24

Screw Torx M6.81 X 30

250000626

$3.91

26

Flat Washer M6.6 X 22

250200022

$2.72

27

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$65.99

28

Seat Stud Spacer

269002125

$8.19

29

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

30

Black, Rear Handle Ass'y

291004625

$142.99

33

Holding Strap

269502111

$18.49

34

RH Lateral Panel

269501911

Unavailable

35

LH Lateral Panel

269501912

Unavailable

36

Black, Finition Plate

291001386

$10.99

47

Not Available As Spare Parts

XXX

Unavailable

48

Front Carpet LH

291003573

$25.99

49

Front Carpet RH

291003574

$25.99

50

Front Center Carpet LH

291003575

$39.99

51

Front Center Carpet RH

291003576

$39.99

52

Rear Carpet LH

291003062

$20.49

53

Rear Carpet RH

291003063

$20.49

54

Front Bumper This part replaces 291005401.

291004277

$76.49

55

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

56

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

57

Console

291004276

$134.99

58

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$149.99

59

Mirror RH, With Double-Face Tape

291003090

$48.49

60

Mirror LH, With Double-Face Tape

291003091

$48.49

61

Swim Platform Carpet

291003096

$88.99

64

Deck Nose

291003897

$18.99

65

Rear Center Carpet LH

291003577

$46.49

66

Rear Center Carpet RH

291003578

$46.49

67

Divider Ass'y

291004572

$104.99

68

Deep Black, Body Deflector

291004273

$26.99

69

Deep Black, Mirror Support

291004271

$48.99

70

Stud Seat

291003877

$48.99

72

U-Clamp

292000933

$59.49

73

Black, Snap Cap

293000014

$1.09

74

Flat Washer M8.5 x 18

293050001

$3.07

75

Rivet 1/8"

293150016

$0.40

76

Tuflok Plastic Rivet

293150230

$1.47

77

Pop Rivet 3/16"

293150123

$4.29

79

Pop Rivet 3/16

293150186

$2.09

82

Gasket 3000Mm Long

219704378

$26.49

83

Gasket

293250236

$41.49

85

Black, Dart

293730006

$0.99

86

Black, Dart

293730011

$0.99

87

Rubber Bumper

293830005

$8.09

90

Not Available As Spare Parts

XXX

Unavailable

91

Not Available As Spare Parts

XXX

Unavailable

92

Black, Latch

264000164

$15.99

93

Not Available As Spare Parts

XXX

Unavailable

95

Lateral Bumper

291003872

$148.49

96

Lateral Bumper

291003872

$148.49

97

Bumper Support | Package SE Manta Green

291003704

$21.99
