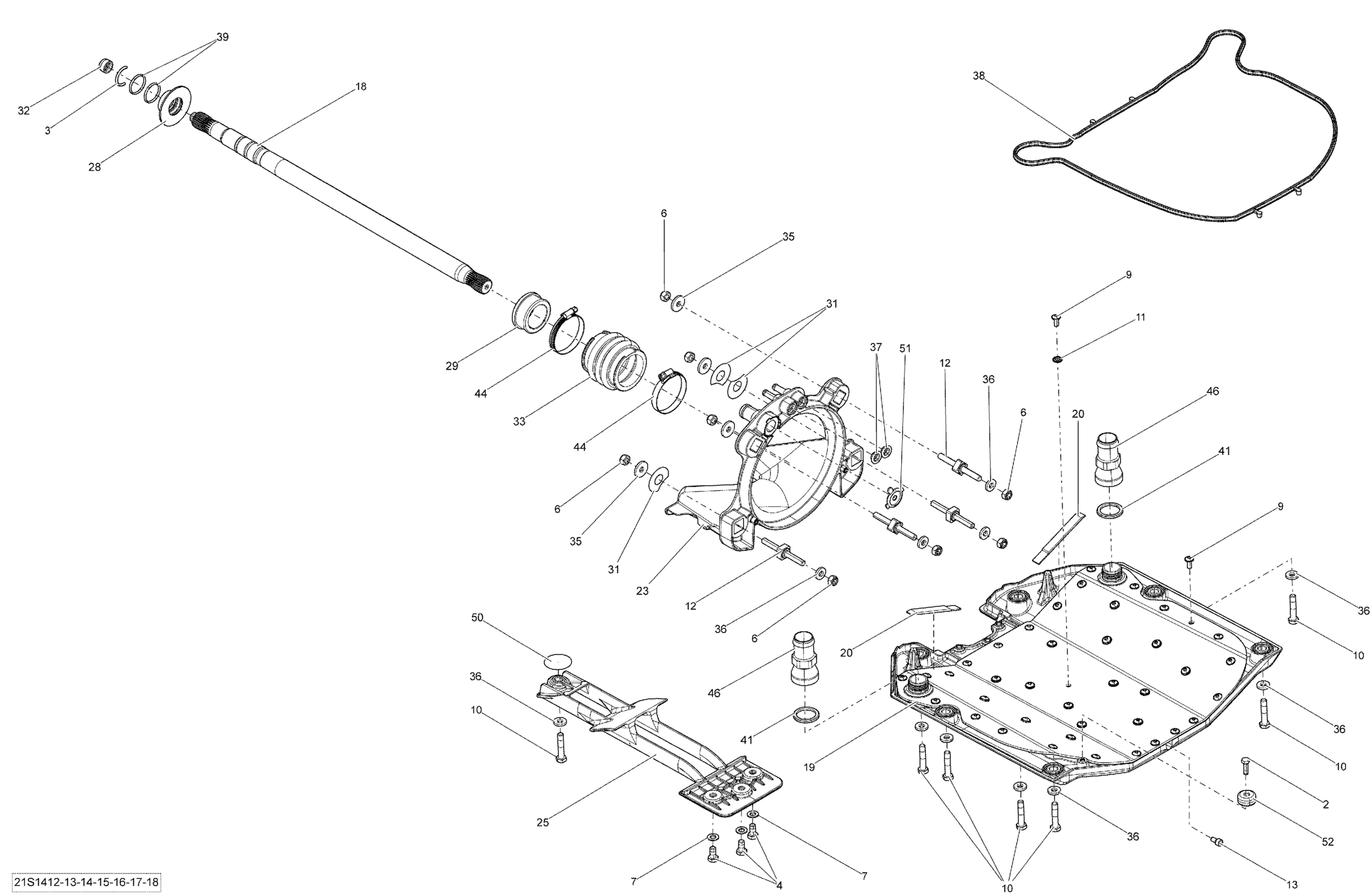

Sea-doo GTR 215, 2014 Propulsion _21S1417 Diagram

#

Description
Price

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

C-Clip

271001577

$3.27

4

Hex. Screw M8 X 16, Scotch Grip

207381660

$1.01

6

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Stainless, Flat Washer 8 mm

234081600

$0.55

9

Torx Screw M6 X 14

250000384

$7.51

10

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

250000530

Unavailable

11

Sealing Washer

250200114

$4.44

12

Square Stud

250300046

$14.82

13

Socket Drain Plug M6 X 12

250500005

$16.49

18

Drive Shaft

271001719

$328.49

19

Riding Plate Ass'y | Includes 120 TO 120f

271001860

$227.49

20

Gasket, Neoprene 2000Mm Long

219704476

$15.36

23

PUMP SUPPORT - Call your local BRP dealership | Hull LFI This part replaces 271001841.

271001682

Unavailable

23

Pump Support

271001943

$41.49

25

Pump Grate

271001969

$54.99

28

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

29

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

31

Shim 0.3 mm

272000053

$11.49

32

Drive Shaft Plug

272000173

$8.68

33

Bellow This part replaces 271001422.

271001933

$23.49

35

Flat Washer

279000336

$11.57

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Watertight Seal

293250084

$7.49

38

Seal

293250235

$10.07

39

O-Ring

293300107

$1.01

41

O-Ring

293300121

$8.32

44

Norma Clamp

293650079

$11.60

46

Straight Plastic Fitting

293710111

$8.47

50

PROTECTOR DISK - Call your local BRP dealership

293830047

$1.99

51

Reducer, Green This part replaces 271001586.

271002029

$16.49

52

Anode Zinc

271001813

$18.99
