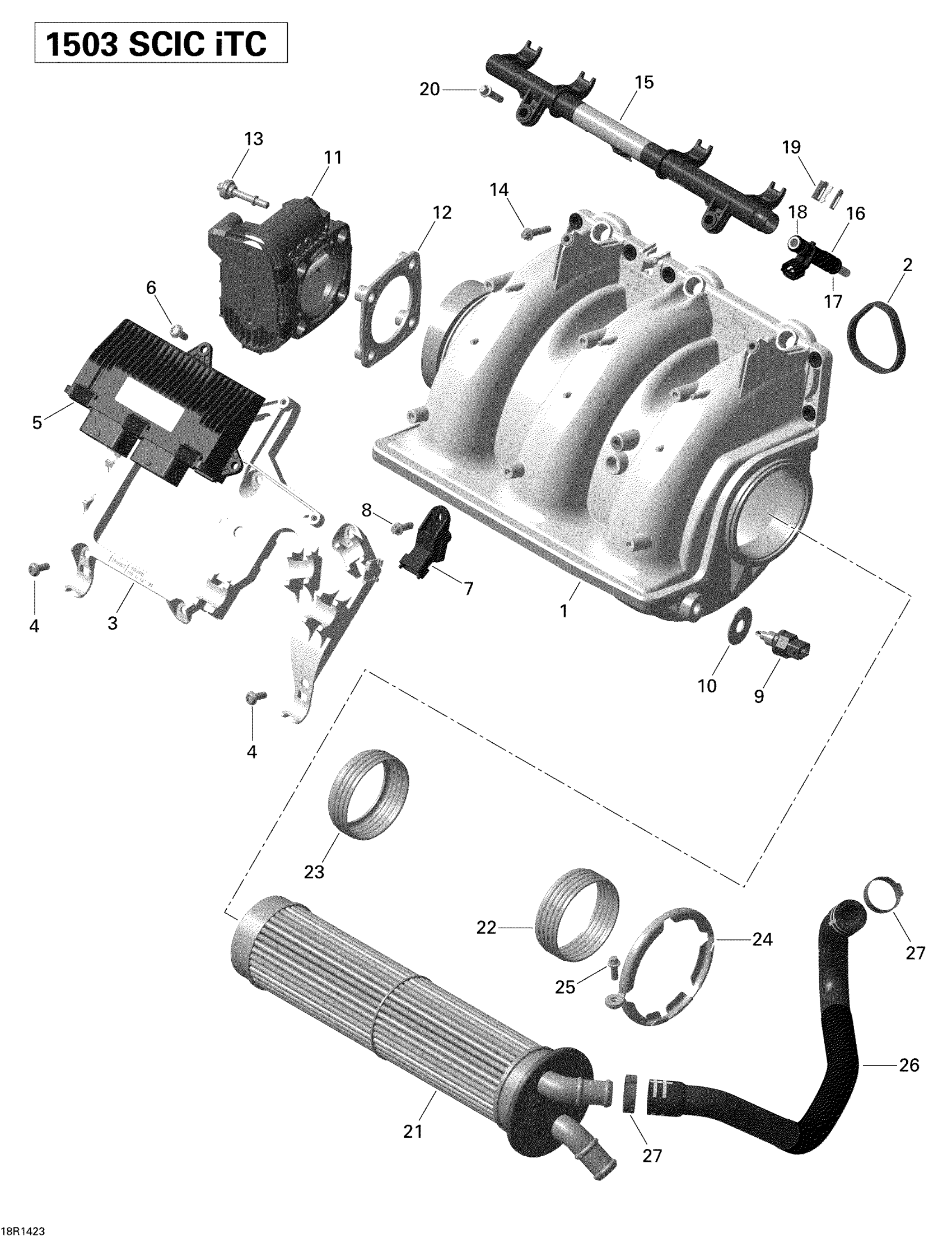

Sea-doo GTR 215, 2014 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867955

$469.99

2

Gasket | Included in gasket kit

420950740

$4.44

3

Base Plate

420460842

$19.49

4

Torx Flange Screw M6 X 16

420641588

$2.11

5

Electronic Box | Model-North America

420666530

$1.00

5

ELECTRONIC BOX - Call your local BRP dealership | Model-International

420666531

$1.00

6

Torx Flange Screw M6 X 16

420641588

$2.11

7

Pressure Sensor

420274058

$124.99

8

Torx Flange Screw M6 X 16

420641048

$2.96

9

Temperature Sensor This part replaces 420222423.

420222421

$39.99

10

Thrust Washer

420227987

$16.37

11

Throttle Body Socket Ass’y

420892592

$519.99

12

Rubber Gasket

420950792

$11.60

13

Allen Screw M6 x 30,5

420440561

$4.44

14

Torx Flange Screw M6 X 25

420641238

$3.27

15

Fuel Rail

420874414

$154.99

16

Fuel Injector | Includes 16 to 18 This part replaces 420874834.

420874846

$144.99

17

O-Ring

420431890

$7.49

18

O-Ring

420631220

$14.28

19

Injector Clip

420853030

$3.09

20

Torx Flange Screw M6 X 25

420641238

$3.27

21

Intercooler This part replaces 420889653.

420889654

$459.99

22

PROFILE RING - Call your local BRP dealership

420631990

Unavailable

23

Profile Ring

420631995

$20.99

24

Gear Clamp

420853253

$35.99

25

Torx Flange Screw M6 X 16

420641048

$2.96

26

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

27

Gear Clamp

420851673

$5.71
