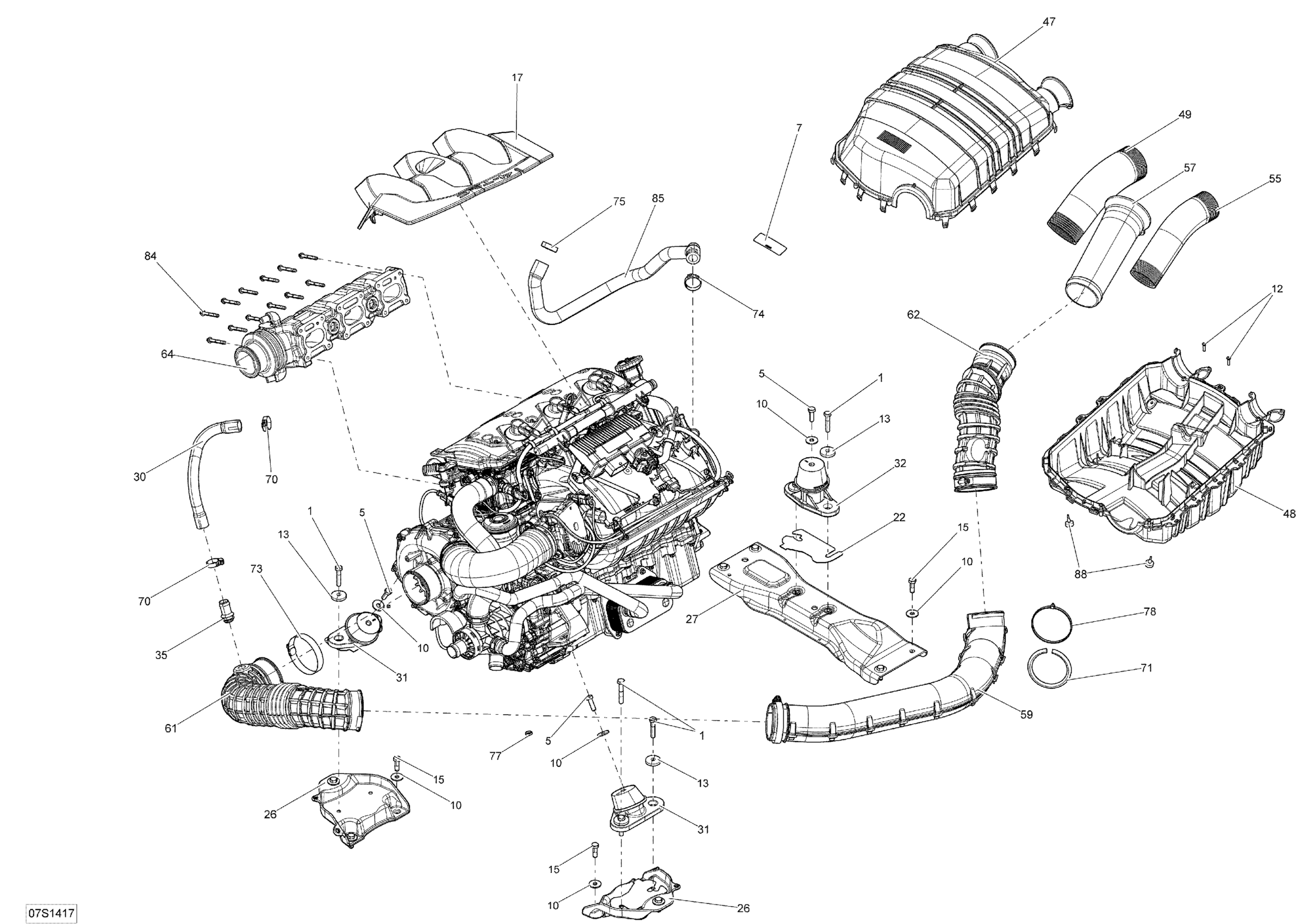

Sea-doo GTR 215, 2014 Engine _07S1417 Diagram

#

Description
Price

1

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

1

HEX. SCREW M8 X 50, SCOTCH GRIP - Call your local BRP dealership | Hull ACMP

207385060

Unavailable

5

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

7

Air Silencer Notice Decal

219903177

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.27

13

Cone Washer

250200018

$5.33

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.73

17

COVER - Call your local BRP dealership

270000999

Unavailable

22

Shim 1.3 mm

270000762

$10.37

26

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

27

Front Spacer | Hull LFI

270000818

$117.88

30

Formed Hose

270000864

$9.81

31

Engine Support Ass'y

270001081

$96.99

32

Engine Support Ass'y

270001096

$88.78

35

Breather Valve

273000234

$12.21

47

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

48

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

49

Air Silencer Hose

273000290

$20.12

55

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

57

Intake Hose

273000359

$44.00

59

INTAKE HOSE, CENTER - Call your local BRP dealership | Model GTR

273000311

Unavailable

61

Hose Intake, Rear | Model GTR

273000328

$52.96

62

HOSE CONNECTOR - Call your local BRP dealership

273000320

Unavailable

64

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$748.48

70

Tridon Gear Clamp

293650051

$4.15

71

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

73

Tridon Clamp

293650179

$10.12

74

Crimp Clamp

293650217

$7.90

75

Tridon Gear Clamp

293650051

$4.15

77

Tie Wrap 142 mm

293750002

$1.01

78

Tie Wrap 368 mm

293750008

$0.97

84

Torx Flange Screw M6 X 45

420641198

$3.88

85

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

88

Rubber Stopper

708000759

$4.15
