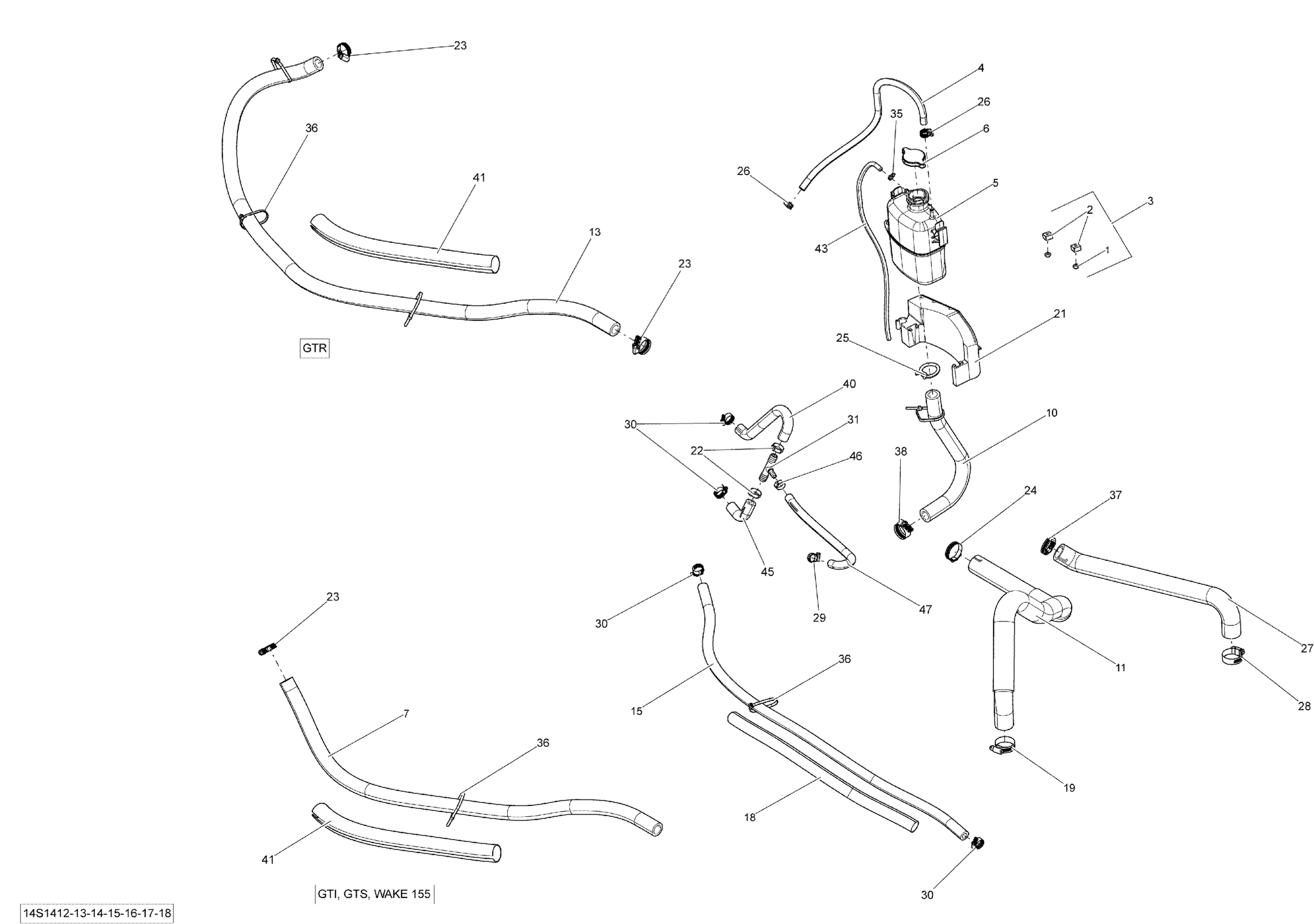

Sea-doo GTR 215, 2014 Cooling System _14S1417 Diagram

#

Description
Price

1

Elastic Stop Nut M6, Brass

232561200

$4.23

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

3

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

4

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

5

Coolant Tank

276000086

$109.99

6

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Not Available As Spare Parts

XXX

Unavailable

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Radiator Hose This part replaces 276000249.

276000492

$56.99

13

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

15

Was 276000001 Hose 12.5 mm

219704394

$51.99

18

Tubing 25 MM 1000MM Long

219704402

$15.99

19

Tridon Gear Clamp

293650185

$13.99

21

SUPPORT ASS'Y - Call your local BRP dealership

291003082

Unavailable

22

Oetiker Clamp

293650012

$7.49

23

Tridon Gear Clamp

293650051

$4.19

24

Tridon Gear Clamp

293650185

$13.99

25

Spring Clamp

293650115

$3.09

26

Tridon Gear Clamp

293650170

$1.99

27

RH Radiator Hose

276000248

$58.99

28

Tridon Gear Clamp

293650185

$13.99

29

Tridon Gear Clamp

293650171

$3.09

30

Tridon Gear Clamp

293650172

$3.09

31

T-Fitting

293710116

$17.62

35

Tie Wrap 94 mm | 4X4

293750001

$1.03

36

Tie Wrap 368 mm

293750008

$1.04

37

Tridon Gear Clamp

293650185

$13.99

38

Tridon Gear Clamp

293650019

$5.82

41

Tubing 25 MM 1000MM Long

219704402

$15.99

43

Polyurethane Hose 10000Mm Long

219704410

$56.99

44

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

45

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

46

Oetiker Clamp | Europe

293650030

$5.19

47

Formed Hose | Without Catalyst

276000246

$19.49
