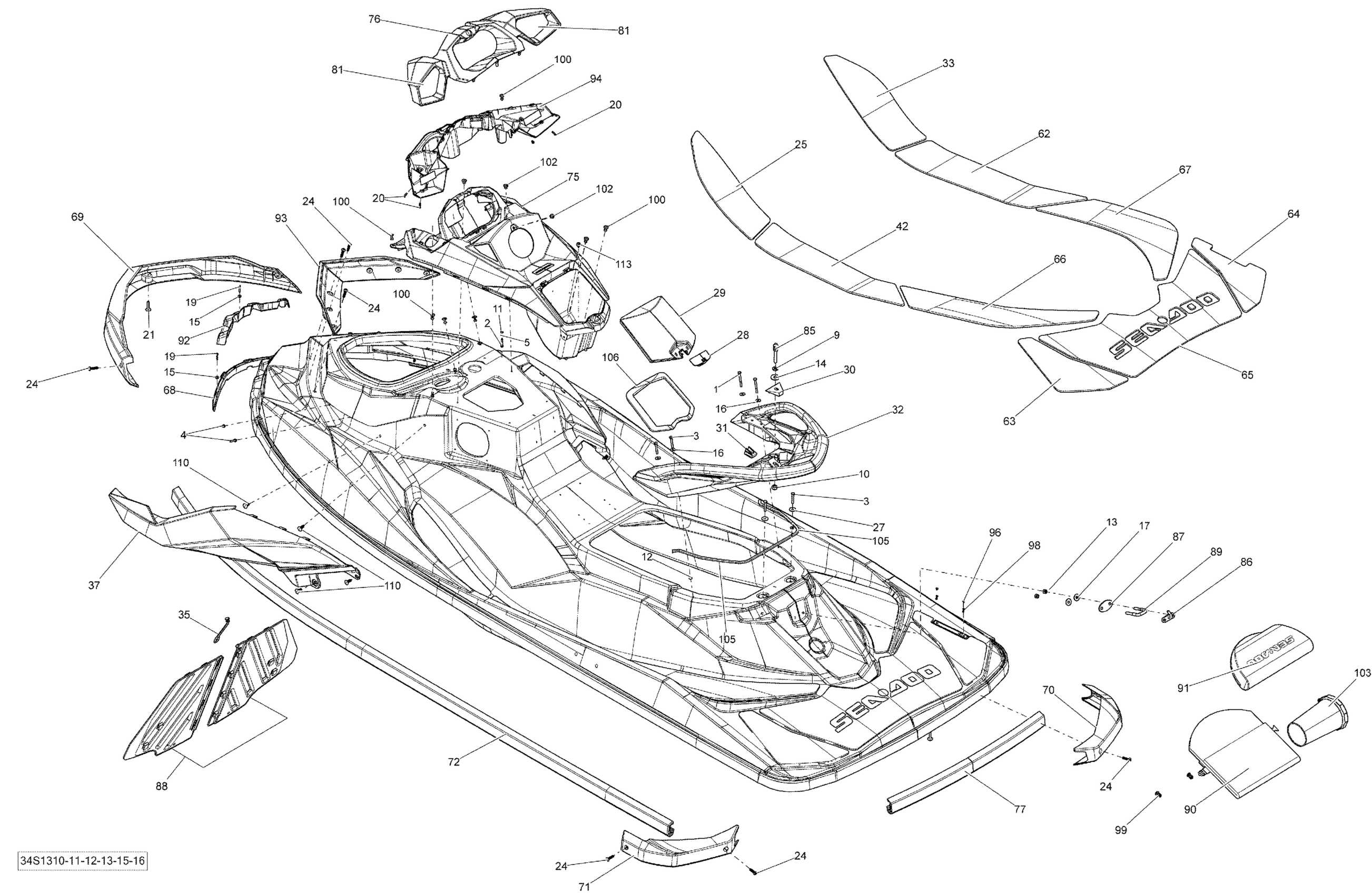

Sea-doo GTR 215, 2013 Body Diagram

#

Description
Price

1

Hex. Screw M6 x 55

207065560

$1.01

2

Hex. Flange Screw M5 X 30

207153060

$1.99

3

Hex. Screw M6 X 40

207164060

$3.38

4

Hex. Screw 10-14 X 7/8”

211000023

$3.59

5

Flat Washer | XT

211200035

$0.55

9

Hex. Jam Nut M10

232100600

$2.22

10

Elastic Stop Nut M10, Brass

232501200

$2.64

11

Elastic Stop Nut 5 mm

232551200

$1.47

12

Elastic Stop Nut M6, Brass

232561200

$4.23

13

Hex. Elastic Nut M8 Brass

232581200

$2.22

14

Flat Washer 10 mm, Stainless

234002600

$2.22

15

Flat Washer 4 mm, Stainless

234042600

$1.15

16

Flat Washer M6, Stainless

234062600

$0.77

17

Flat Washer 8 mm, Stainless

234082600

$2.43

19

Hex. Flange Screw K40 X 25

241142560

$2.64

20

Flange Torx Screw K40 X 16

250000287

$2.11

21

Hexagonal Cap Screw M6 X35

250000399

$4.44

24

Screw Torx M6.81 X 30

250000626

$3.91

25

Front Carpet LH

291003573

$25.99

27

Flat Washer M6.6 X 22

250200022

$2.72

28

Black, Latch

264000164

$15.99

29

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$65.99

30

Seat Stud Spacer

269002125

$8.19

31

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

32

Black, Rear Handle Ass'y

291004625

$142.99

33

Front Carpet RH

291003574

$25.99

33

Not Available As Spare Parts

XXX

Unavailable

35

Holding Strap

269502111

$18.49

37

RH Lateral Panel

269501911

Unavailable

37

LH Lateral Panel

269501912

Unavailable

42

Front Center Carpet LH

291003060

$28.49

55

Not Available As Spare Parts

XXX

Unavailable

62

Front Center Carpet RH

291003061

$28.49

63

Rear Carpet LH

291003062

$20.49

64

Rear Carpet RH

291003063

$20.49

65

Swim Platform Carpet

291003096

$88.99

66

Rear Center Carpet LH

291003329

$34.99

67

Rear Center Carpet RH

291003330

$34.99

68

Deck Nose

291003897

$18.99

69

Front Bumper This part replaces 291005401.

291004277

$76.49

70

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

71

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

72

Lateral Bumper

291003872

$148.49

75

Console

291004276

$134.99

76

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$149.99

77

Lateral Bumper

291003872

$148.49

81

Mirror RH, With Double-Face Tape

291003090

$48.49

81

Mirror LH, With Double-Face Tape

291003091

$48.49

85

Stud Seat

291003877

$48.99

86

Not Available As Spare Parts

XXX

Unavailable

87

Black, Finition Plate

291001386

$10.99

88

Divider Ass'y

291004572

$104.99

89

U-Clamp

292000933

$59.49

90

Dry Bag 10 | Not shown

269502121

$40.49

91

ANCHOR SANDBAG - Call your local BRP dealership

269501318

Unavailable

92

Bumper Support | Package SE Manta Green

291003704

$21.99

93

Deep Black, Body Deflector

291004273

$26.99

94

Deep Black, Mirror Support

291004271

$48.99

96

Black, Snap Cap

293000014

$1.09

98

Rivet 1/8"

293150016

$0.40

99

Tuflok Plastic Rivet

293150230

$1.47

100

Pop Rivet 3/16"

293150123

$4.29

102

Pop Rivet 3/16

293150186

$2.09

103

Safety Kit | Package LTD

295100330

$22.49

105

Gasket 3000Mm Long

219704378

$26.49

106

Gasket

293250236

$41.49

110

Black, Dart

293730006

$0.99

113

Rubber Bumper

293830005

$8.09
