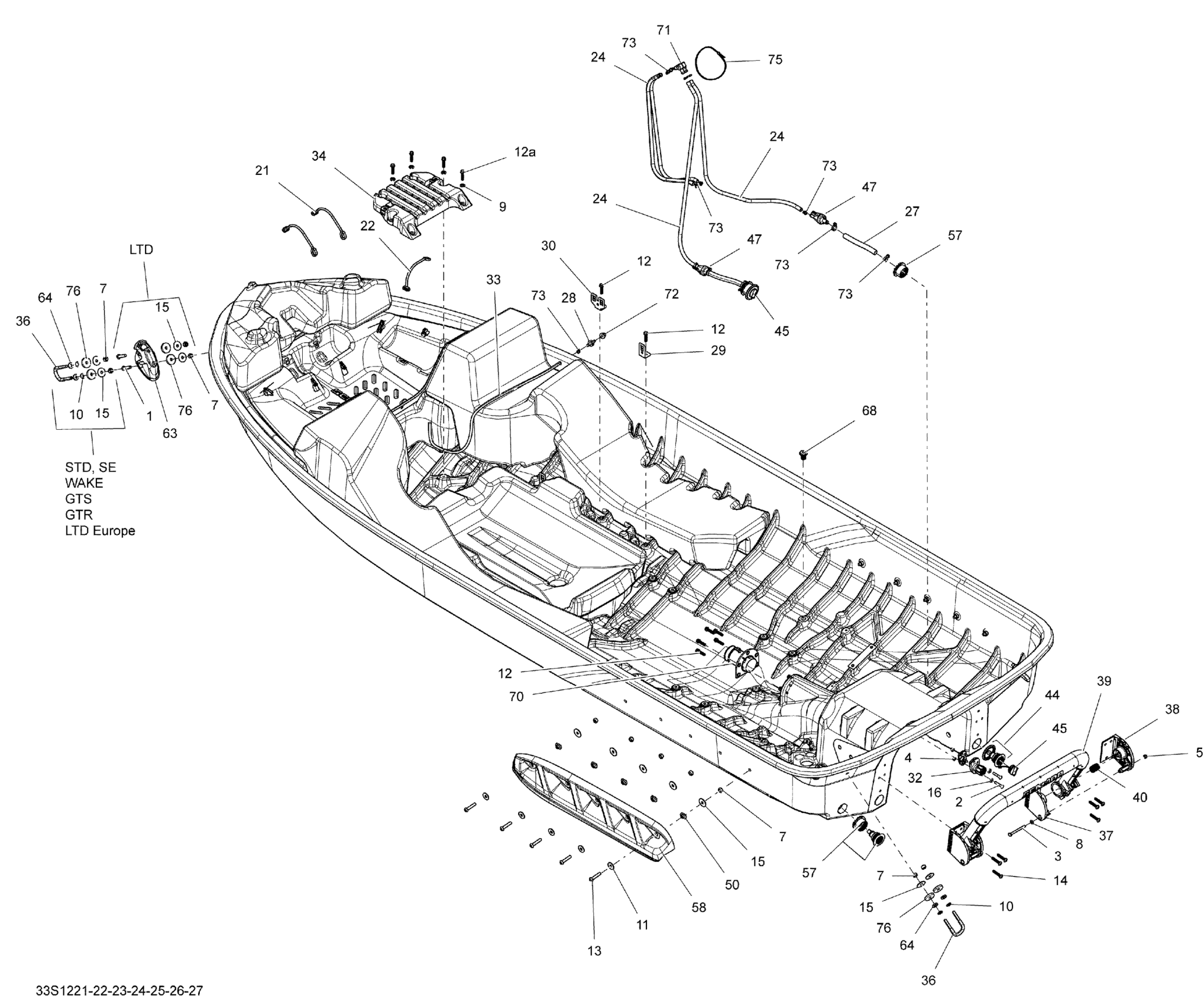

Sea-doo GTR 215, 2012 Hull Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Hex. Screw M6 X 30

207063060

$1.89

3

Not Available As Spare Parts

XXX

Unavailable

4

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Not Available As Spare Parts

XXX

Unavailable

7

Hex. Elastic Nut M8 Brass

232581200

$2.22

8

Not Available As Spare Parts

XXX

Unavailable

9

Flat Washer M8, Stainless

234080600

$1.48

10

Flat Washer 8 mm, Nylon

234081100

$1.39

11

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

13

Torx Screw M8 X 40, Stainless

250000452

$3.91

14

Torx Screw

250000468

$4.61

15

Flat Washer 8 mm, Stainless

250200175

$3.06

16

Sealing Washer

250200114

$4.44

21

Strap

269502417

$17.69

22

Not Available As Spare Parts

XXX

Unavailable

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

27

Was 275500008 Hose 12 mm

219704356

$20.49

28

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

29

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

30

Double Strap Clip 90°

275500798

$8.94

32

Cable Adaptor Ass'y

277001881

$19.99

33

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

34

Battery Base Ass'y

278002866

$38.99

36

U-Clamp

292000933

$59.49

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

44

Drain Neck Ass'y

292001315

$27.99

45

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

47

Bailer Ass'y

292001310

$23.99

50

Spacer Sponson

292001349

$10.99

57

Bushing

292001371

$17.49

58

LH Sponson

292001877

$93.99

58

RH Sponson

292001878

$93.99

63

Not Available As Spare Parts

XXX

Unavailable

64

Flat Washer M8.5 x 18

293050001

$3.07

68

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

70

HULL INSERT - Call your local BRP dealership

293450316

Unavailable

71

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

72

Grommet

293720029

$1.59

73

Tie Wrap 94 mm | 4X4

293750001

$1.03

75

Tie Wrap 368 mm

293750008

$1.04

76

Rubber Washer

293830037

$2.68

12a

Hex. Flange Screw M6.81 X 30

243163060

$2.32
