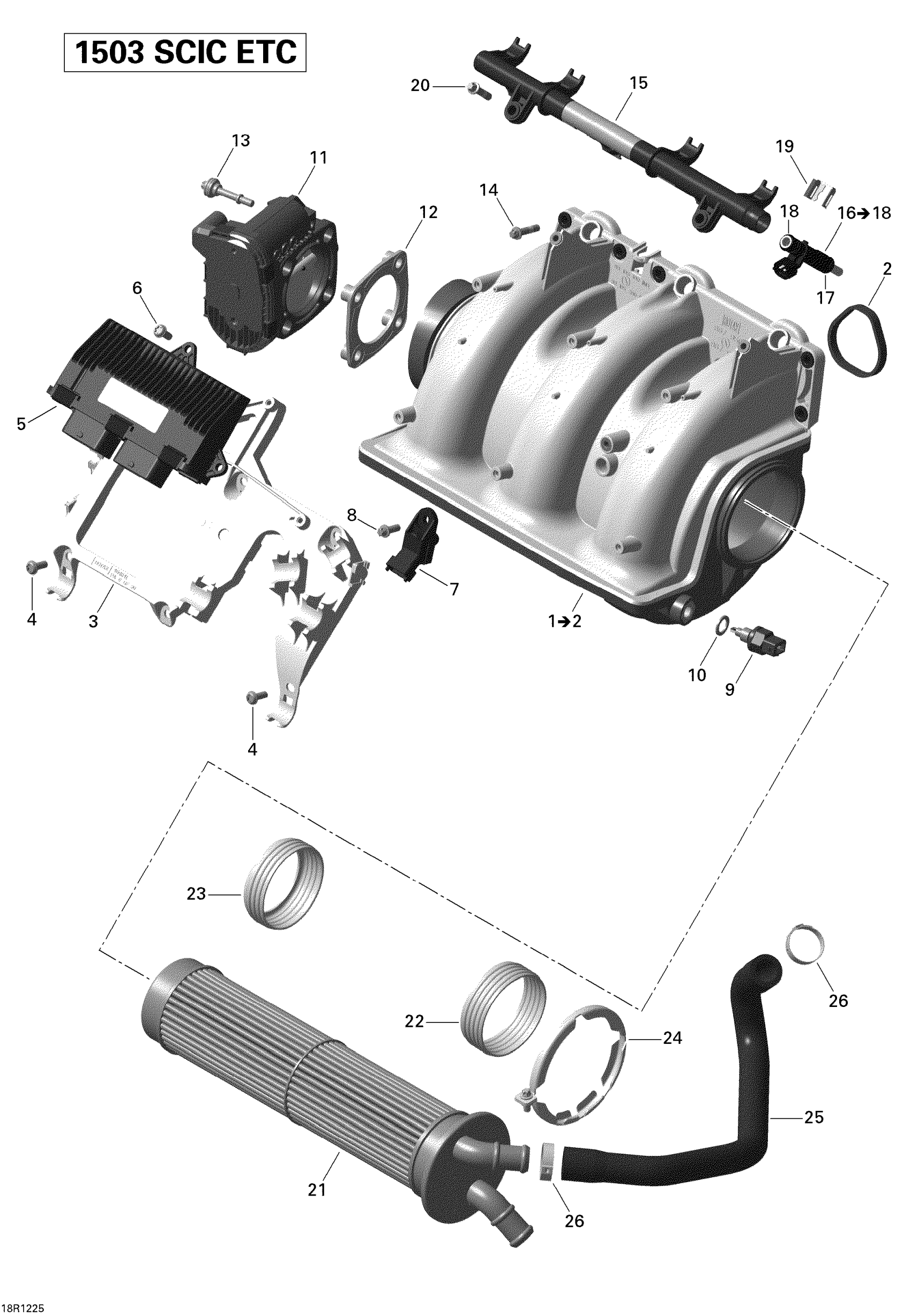

Sea-doo GTR 215, 2012 Air Intake Manifold And Throttle Body 1_Sea-Doo Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867955

$418.63

2

Gasket | Included in gasket kit

420950740

$3.61

3

Base Plate

420460842

$19.47

4

Torx Flange Screw M6 X 16

420641588

$1.74

5

Electronic Box | Model-North America

420666530

$1,046.47

5

ELECTRONIC BOX - Call your local BRP dealership | Model-International

420666531

$1,155.19

6

Torx Flange Screw M6 X 16

420641588

$1.74

7

Pressure Sensor

420274058

$125.34

8

Torx Flange Screw M6 X 16

420641048

$2.46

9

Temperature Sensor This part replaces 420222423.

420222421

$31.82

10

Thrust Washer

420227987

$12.97

11

Throttle Body Socket Ass’y

420892592

$401.67

12

Rubber Gasket

420950792

$8.89

13

Allen Screw M6 x 30,5

420440561

$3.67

14

Torx Flange Screw M6 X 25

420641238

$2.68

15

Fuel Rail

420874414

$120.22

16

Fuel Injector | Includes 16 to 18 This part replaces 420874834.

420874846

$111.77

17

O-Ring

420431890

$4.95

18

O-Ring

420631220

$11.48

19

Injector Clip

420853030

$2.46

20

Torx Flange Screw M6 X 25

420641238

$2.68

21

Intercooler This part replaces 420889653.

420889654

$428.97

22

PROFILE RING - Call your local BRP dealership

420631990

Unavailable

23

Profile Ring

420631995

$15.57

24

Gear Clamp

420853253

$29.22

25

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

26

Gear Clamp

420851673

$4.71
