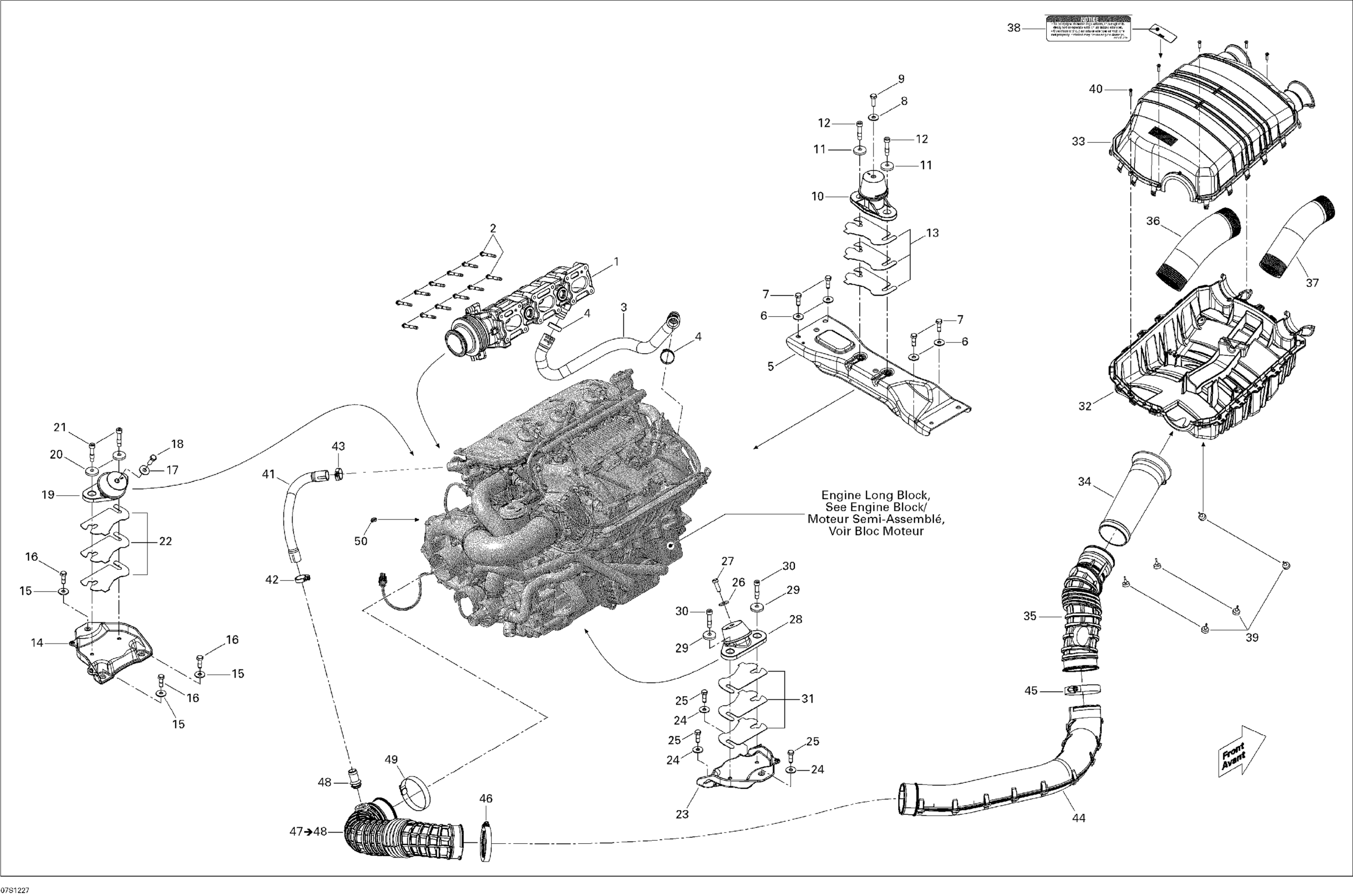

Sea-doo GTR 215, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

2

Torx Flange Screw M6 X 45

420641198

$3.38

3

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

4

Crimp Clamp

293650217

$7.90

5

Front Spacer | Hull LFI

270000818

$117.88

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

8

Flat Washer 8 mm, Stainless

234082600

$1.98

9

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

10

Engine Support Ass'y

270001096

$77.32

11

Cone Washer

250200018

$4.64

12

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

13

Shim 1.3 mm

270000762

$9.04

14

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

15

Flat Washer 8 mm, Stainless

234082600

$1.98

16

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

17

Flat Washer 8 mm, Stainless

234082600

$1.98

18

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

19

Engine Support Ass'y

270001081

$84.47

20

Cone Washer

250200018

$4.64

21

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

22

Shim 1.3 mm

270000762

$9.04

23

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$1.98

25

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

26

Flat Washer 8 mm, Stainless

234082600

$1.98

27

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

28

Engine Support Ass'y

270001081

$84.47

29

Cone Washer

250200018

$4.64

30

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

31

Shim 1.3 mm

270000762

$9.04

32

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

33

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

34

Intake Hose

273000359

$44.00

35

HOSE CONNECTOR - Call your local BRP dealership

273000320

Unavailable

36

Air Silencer Hose

273000290

$20.12

37

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

38

Air Silencer Notice Decal

219903177

Unavailable

39

Rubber Stopper

708000759

$3.61

40

Flange Torx Screw K40 X 16

250000287

$1.74

41

Formed Hose

270000864

$9.81

42

Tridon Gear Clamp

293650051

$3.61

43

Tridon Gear Clamp

293650051

$3.61

44

INTAKE HOSE, CENTER - Call your local BRP dealership | Model GTR

273000311

Unavailable

45

Tridon Clamp

293650179

$8.81

46

Tridon Clamp

293650179

$8.81

47

Hose Intake, Rear | Model GTR

273000328

$46.12

48

Breather Valve

273000234

$10.63

49

Tridon Clamp

293650179

$8.81

50

Tie Wrap 142 mm

293750002

$0.88
