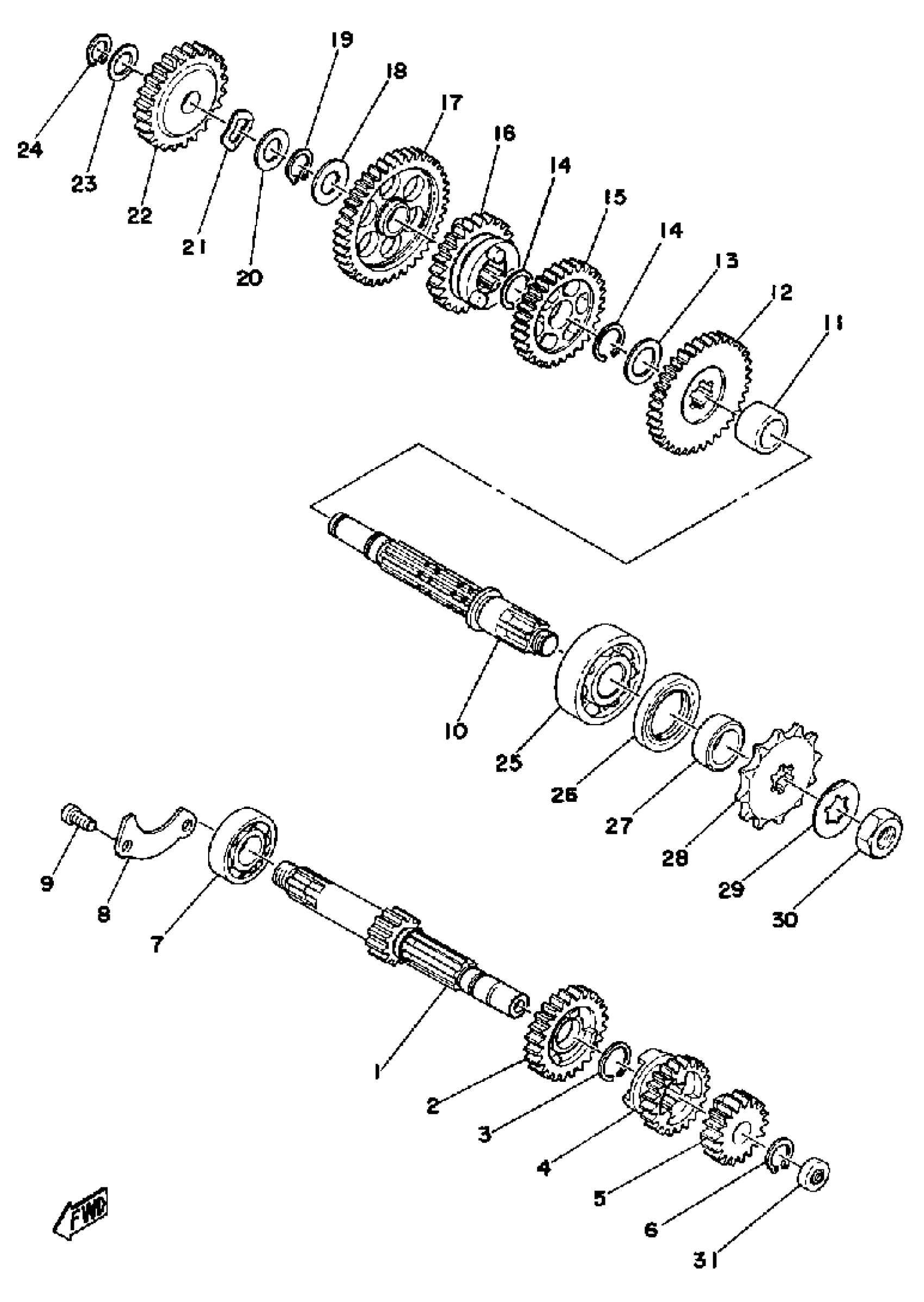

Yamaha GTMXF (GTMX) 1979 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

353-17411-10-00

Unavailable

2

GEAR, 4TH PINION

(353-17141-11-00)

Unavailable

2

. GEAR, 4TH PINION

353-17141-12-00

Unavailable

3

CIRCLIP (4V0)

93440-16089-00

$7.49

4

. GEAR, 3RD PINION

353-17131-10-00

Unavailable

4

. GEAR, 3RD PINION

353-17131-10-00

Unavailable

5

. GEAR, 2ND PINION

353-17121-11-00

Unavailable

6

CIRCLIP(13M)

99009-13400-00

$9.49

7

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

8

PLATE, COVER

353-17471-00-00

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

AXLE, DRIVE

598-17421-00-00

Unavailable

11

COLLAR

90387-16126-00

Unavailable

12

GEAR, 2ND WHEEL

353-17221-00-00

Unavailable

13

SHIM, (1.0T)

52G-17968-00-10

Unavailable

14

CIRCLIP (4V0)

93440-16089-00

$7.49

15

GEAR, 3RD WHEEL

353-17231-00-00

Unavailable

16

GEAR, 4TH WHEEL

353-17241-00-00

Unavailable

17

GEAR, 1ST WHEEL

353-17211-01-00

Unavailable

18

SHIM

257-17219-00-00

Unavailable

19

CIRCLIP(10Y)

99009-12400-00

Unavailable

20

WASHER, PLATE

90201-13013-00

Unavailable

21

WASHER WAVE 137156430000

90206-15021-00

Unavailable

22

GEAR, KICK IDLE

353-15651-00-00

Unavailable

23

WASHER (692)

90201-12M34-00

Unavailable

24

CIRCLIP(13M)

99009-13400-00

$9.49

25

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

26

OIL SEAL (25X40X5-101)

93102-25017-00

Unavailable

27

COLLAR

90387-17137-00

Unavailable

28

SPROCKET,DRIVE 12T(2571746121)

93811-12009-00

Unavailable

28

SPROCKET, DRIVE

93811-13019-00

Unavailable

28

SPROCKET,DRIVE 14T(2571746141)

93811-14033-00

Unavailable

28

SPROCKET, DRIVE

93811-15061-00

Unavailable

29

WASHER LOCK 283174640000

90215-13026-00

Unavailable

30

NUT LOCK (RD50)

90179-12181-00

Unavailable

31

OIL SEAL(1JY)

93102-04382-00

Unavailable
