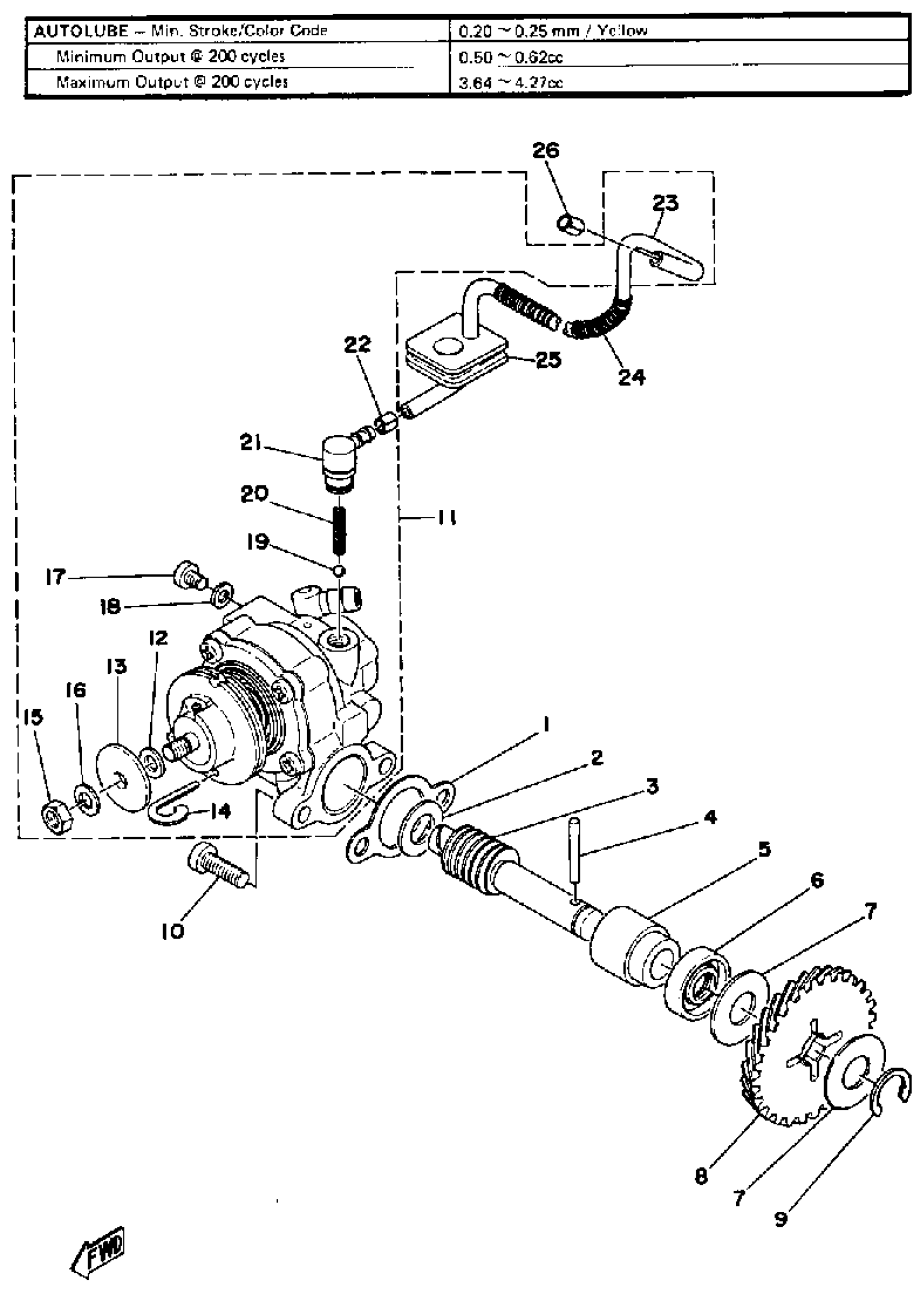

Yamaha GTMXF (GTMX) 1979 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

3

SHAFT, WORM

257-13175-00-00

Unavailable

4

PIN,DOWEL (137)

93603-22028-00

$3.76

5

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

6

OIL SEAL (J10)

93101-10090-00

$8.49

7

WASHER, PLATE(52H)

90201-105J4-00

$9.49

8

GEAR, PUMP DRIVE

353-13178-00-00

Unavailable

9

CIRCLIP(2R6)

99001-08600-00

$8.49

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

OIL PUMP ASSEMBLY

(1K8-13101-01-00)

Unavailable

12

SHIM,PLUNGER

137-13137-00-10

$7.99

13

PLATE, ADJUSTING

137-13138-01-00

Unavailable

14

COVER, ADJUST PULLEY

367-13146-01-00

$6.99

15

NUT, HEXAGON (663)

95380-05600-00

$8.49

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

SCREW, BIND

98980-04008-00

Unavailable

18

GASKET 137131870000

90430-04004-00

Unavailable

19

BALL

93505-32002-00

Unavailable

20

SPRING, CHECK BALL (451)

90501-02217-00

Unavailable

21

NOZZLE

353-13552-01-00

Unavailable

22

CLIP (214-13164-00)

90468-02033-00

Unavailable

23

HOSE (L700)

90445-05M07-00

Unavailable

24

SPRING, COMPRESSION

90501-06025-00

Unavailable

25

HOLDER, OIL PIPE

248-13174-00-00

Unavailable

26

CLIP (214-13164-00)

90468-02033-00

Unavailable
