Description

Price

1

FUEL TANK

(367-24110-Y0-X9)

Unavailable

2

EMBLEM 1

(367-24161-01-00)

Unavailable

3

EMBLEM 2

(367-24162-01-00)

Unavailable

4

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

5

DAMPER, LOCATING

353-24182-00-00

$27.99

6

CAP ASSY

122-24610-01-00

$22.99

7

PACKING, CAP

122-24612-01-00

$8.99

8

HOSE (L420)

90445-092K1-00

$12.49

9

CLIP 101235600

90467-08003-00

$10.49

10

FUEL COCK ASSY

367-24500-04-00

Unavailable

11

. NET, FILTER 2

355-24515-00-00

Unavailable

12

GASKET

102-24522-02-00

$5.49

13

. CUP, FILTER

122-24521-00-00

Unavailable

14

GASKET, NUT

122-24532-00-00

$8.99

15

. NUT

603-24531-01-00

Unavailable

16

SCREW, PAN HEAD

98517-05030-00

Unavailable

17

LEVER, COCK

(355-24524-01-00)

Unavailable

18

VALVE

355-24523-00-00

Unavailable

19

WASHER, WAVE

(355-24518-00-00)

Unavailable

20

NUT, HEXAGON (663)

95380-05600-00

Unavailable

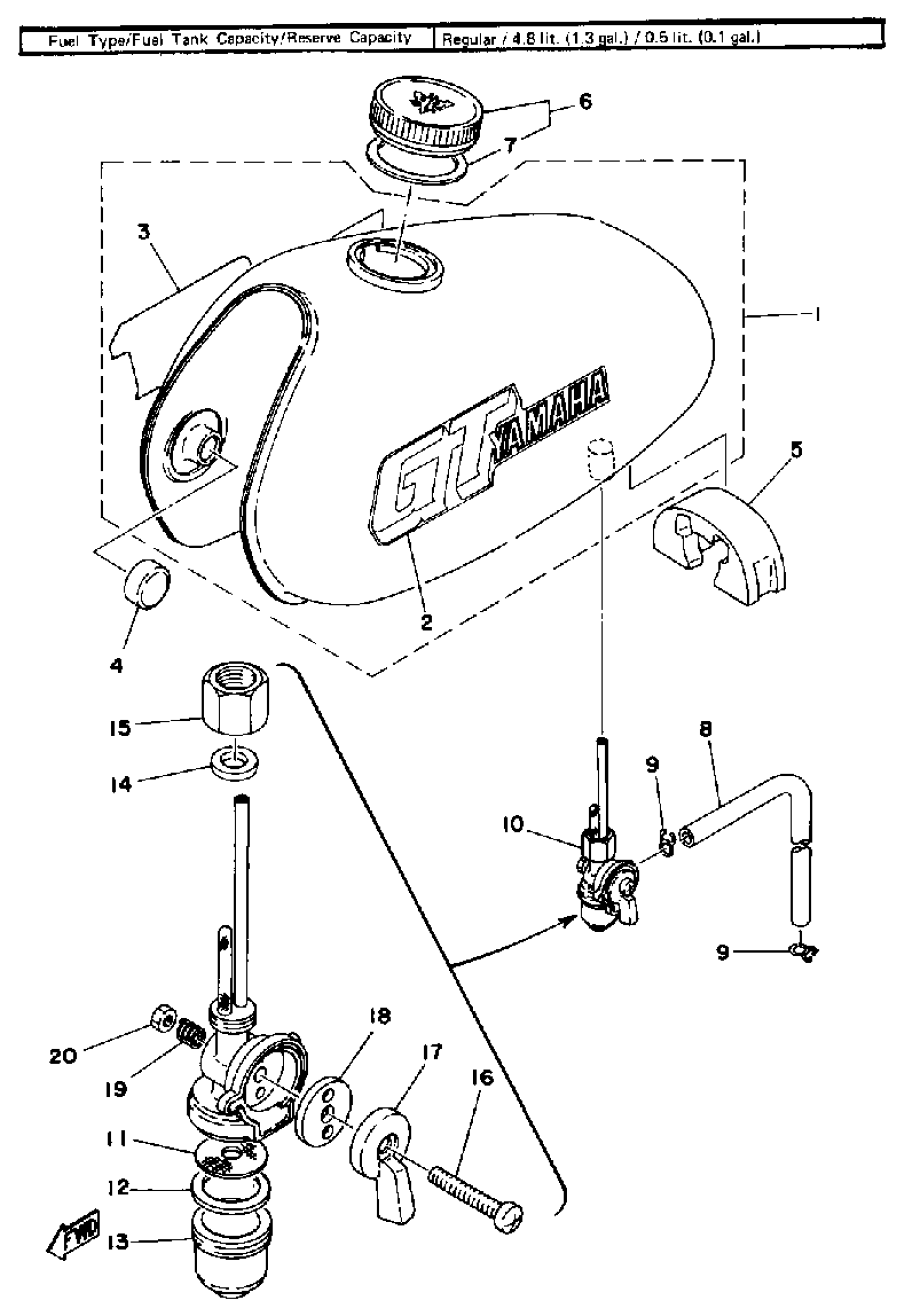

Yamaha GTMXF (GTMX) 1979 FUEL TANK Diagram

FUEL TANK

EMBLEM 1

EMBLEM 2

DAMPER, LOCATING(1)

DAMPER, LOCATING

CAP ASSY

PACKING, CAP

HOSE (L420)

CLIP 101235600

FUEL COCK ASSY

. NET, FILTER 2

GASKET

. CUP, FILTER

GASKET, NUT

. NUT

SCREW, PAN HEAD

LEVER, COCK

VALVE

WASHER, WAVE

NUT, HEXAGON (663)
