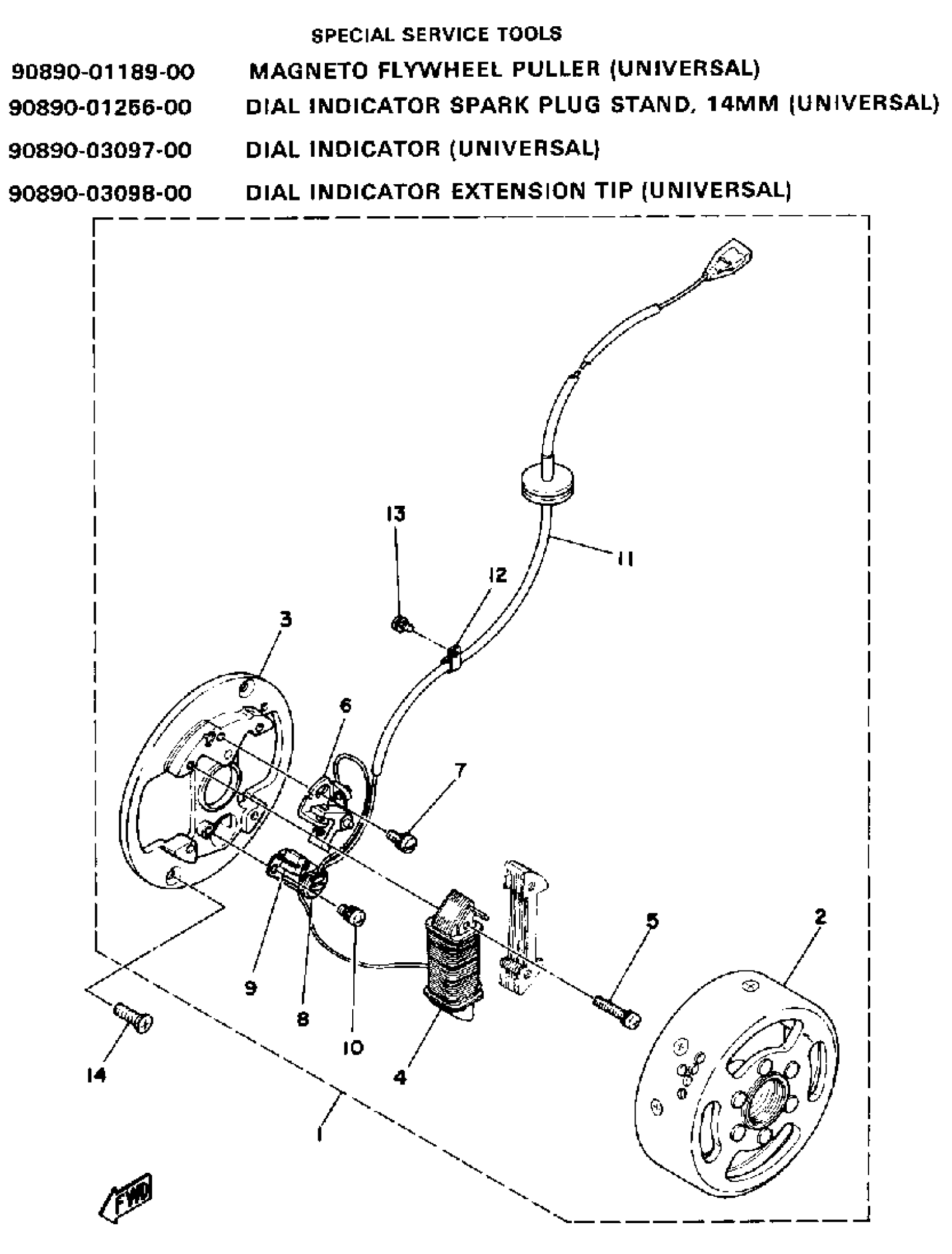

Yamaha GTMXF (GTMX) 1979 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY (367-81300-21-00)

1T0-81300-20-00

Unavailable

2

ROTOR ASSEMBLY

(1T0-81350-20-00)

Unavailable

3

BASE, MAGNETO

520-81309-20-00

Unavailable

4

. COIL, SOURCE

511-81312-20-00

Unavailable

5

SCREW, PAN HEAD

98517-04025-00

$2.75

6

CONTACT BREAKER ASSY

2A6-81321-20-00

$42.31

7

SCREW, PAN HEAD

110-81346-21-00

$4.01

8

CONDENSER

1K8-81325-20-00

$57.42

9

. LUBRICATOR

116-81331-20-00

Unavailable

10

SCREW, PAN HEAD

110-81346-21-00

$4.01

11

LEAD WIRE ASSEMBLY

(367-81315-20-00)

Unavailable

12

CLAMP

(367-81328-20-00)

Unavailable

13

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

14

SCREW, FLAT

98707-05016-00

$5.23
