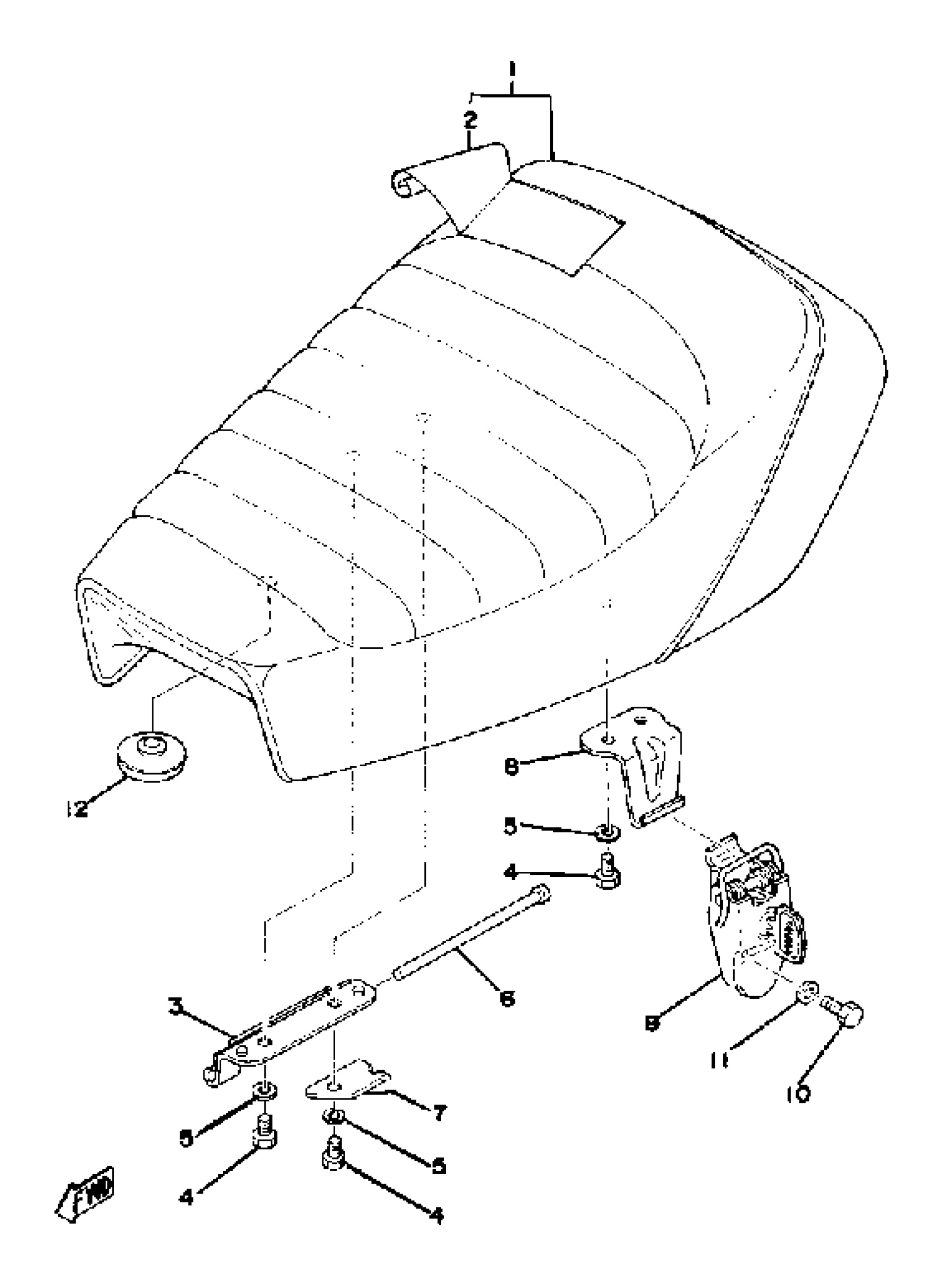

Yamaha GTMXE (GTMX) 1978 SEAT Diagram

#

Description

Price

1

SEMI-DBL-SEAT ASSEMBLY

2A3-W2473-00-00

Unavailable

2

. COVER, SM-DBL SEAT

2A3-24771-00-00

Unavailable

3

HINGE, SEAT

353-24726-00-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

PIN, CLEVIS (3M7)

91701-05105-00

Unavailable

7

STOPPER

374-24768-00-00

Unavailable

8

BRACKET, SEAT

278-24728-00-00

Unavailable

9

SEAT LEVER ASSEMBLY

367-24760-00-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

PAD, SEAT

1L9-24741-00-00

$9.99
