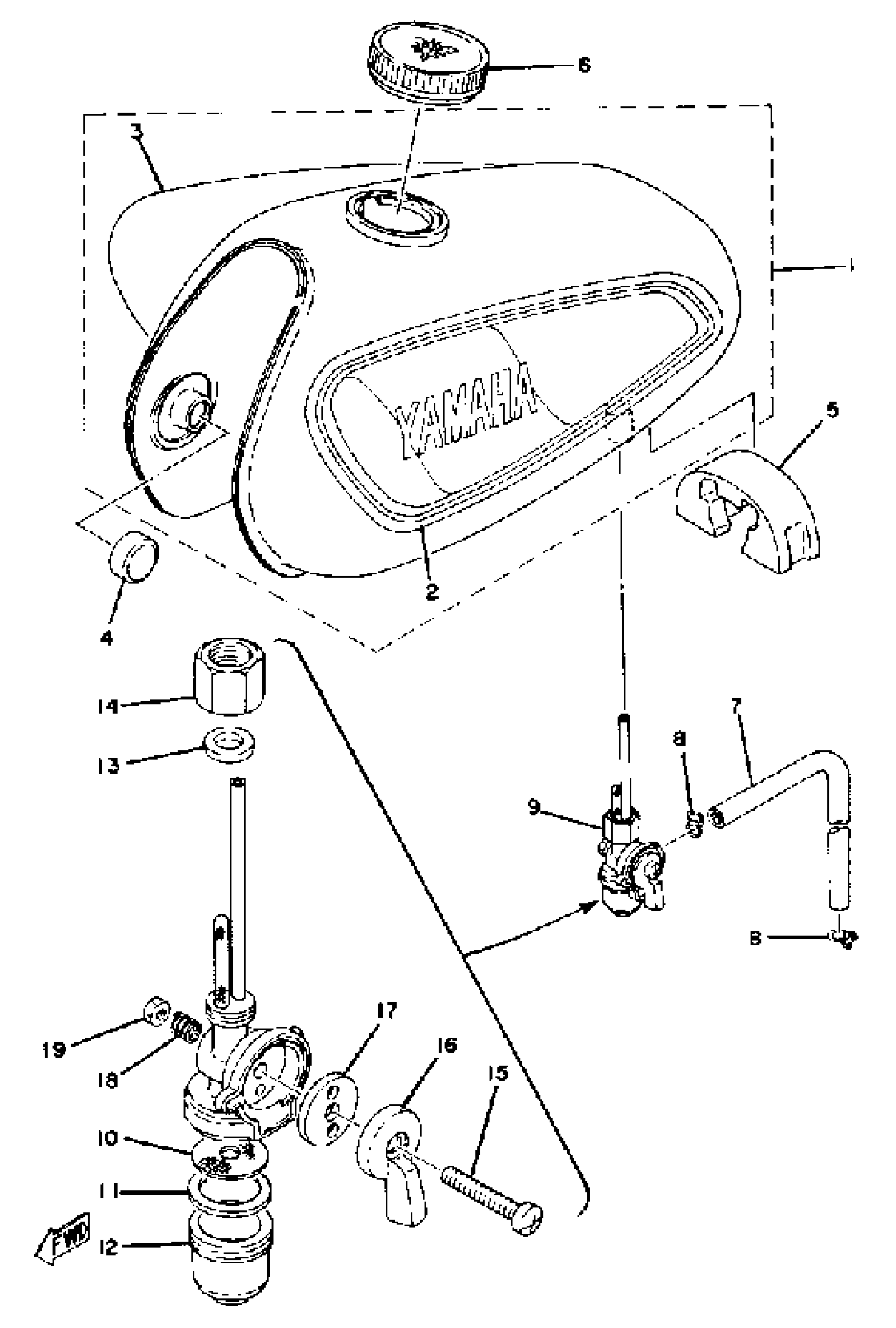

Yamaha GTMXE (GTMX) 1978 FUEL TANK Diagram

FUEL TANK

(367-24110-Y0-X4)

Unavailable

GRAPHIC, FUEL TNK 1

(367-24244-40-00)

Unavailable

GRAPHIC, FUEL TNK 2

(367-24245-40-00)

Unavailable

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

DAMPER, LOCATING

353-24182-00-00

$27.99

CAP ASSY

122-24610-01-00

$22.99

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

$10.49

FUEL COCK ASSY

367-24500-04-00

Unavailable

. NET, FILTER 2

355-24515-00-00

Unavailable

GASKET

102-24522-02-00

$5.49

. CUP, FILTER

122-24521-00-00

Unavailable

GASKET, NUT

122-24532-00-00

$8.99

. NUT

603-24531-01-00

Unavailable

SCREW, PAN HEAD

98517-05030-00

$10.49

LEVER, COCK

(355-24524-01-00)

Unavailable

VALVE

355-24523-00-00

Unavailable

WASHER, WAVE

(355-24518-00-00)

Unavailable

NUT, HEXAGON (663)

95380-05600-00

Unavailable
