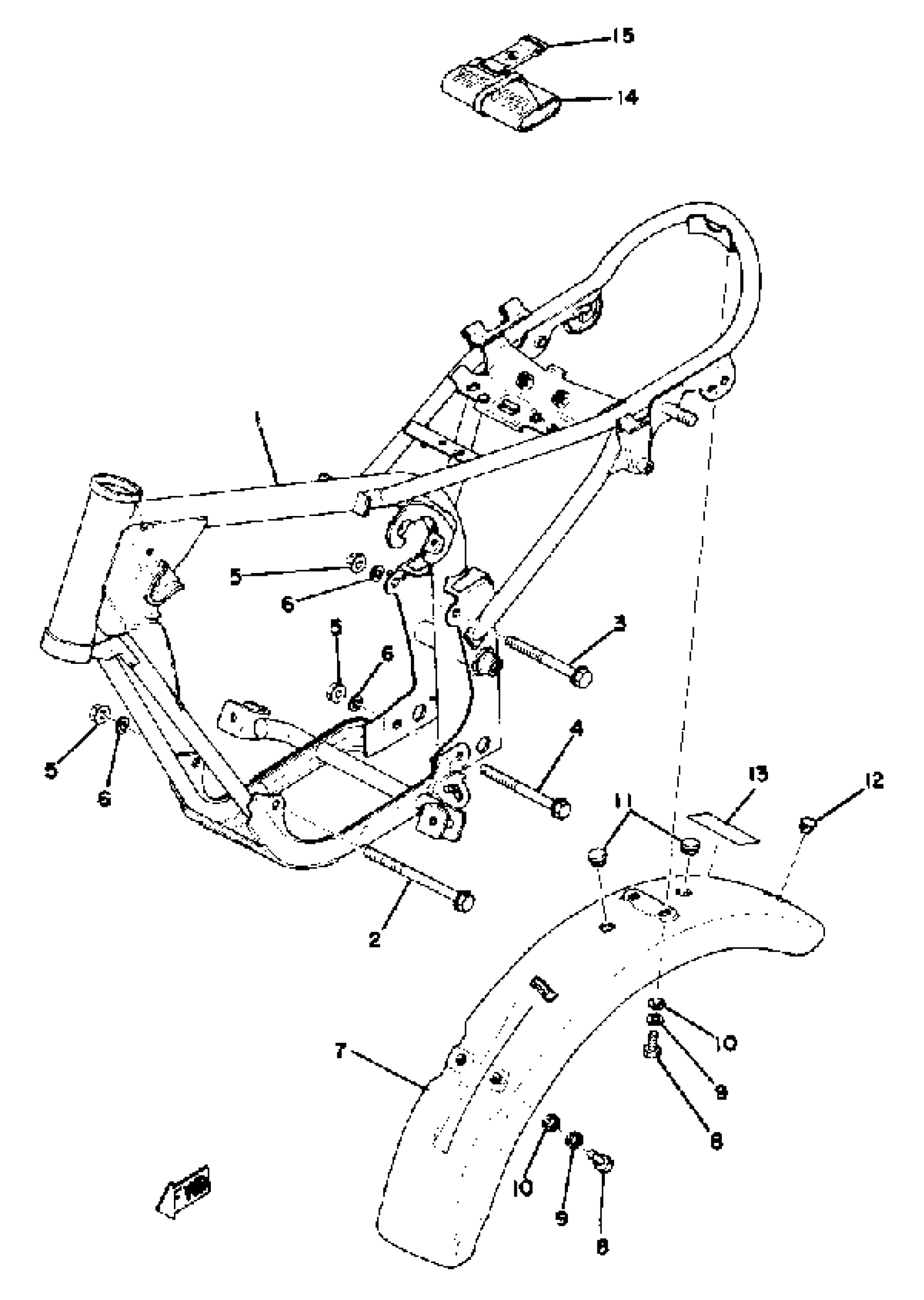

Yamaha GTMXE (GTMX) 1978 FRAME - REAR FENDER Diagram

#

Description
Price

1

FRAME

(2A3-21110-00-33)

Unavailable

2

BOLT, FLANGE(4EM)

95817-08120-00

$4.99

3

BOLT, FLANGE

95817-08090-00

$4.77

4

BOLT, FLANGE(8BT)

95817-08095-00

$4.24

5

NUT, FLANGE

95704-08500-00

$8.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

FENDER, REAR

(367-21610-01-20)

Unavailable

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

GROMMET

214-84154-60-00

Unavailable

12

PLUG 288833190000

90338-07043-00

$8.49

13

LABEL, SAFETY

288-21659-00-00

Unavailable

14

TOOL KIT

2U2-W2810-00-00

Unavailable

15

BAND, TOOL

21V-21376-00-00

$6.99
