Description

Price

1

PEDAL, BRAKE

2F4-27211-00-R4

Unavailable

2

SHAFT, BRAKE PEDAL

2A3-27212-00-00

Unavailable

3

CIRCLIP (122)

93430-12008-00

$8.49

4

SPRING 1832721600

90508-32056-00

$7.49

5

ROD, BRAKE

288-27231-00-00

Unavailable

6

SPRING, (180-27236-00)

90501-10245-00

$8.49

7

PIN 1562723700

90249-12008-00

$8.49

8

NUT (25K)

90179-06411-00

$8.49

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

PIN, COTTER

91490-20025-00

$1.99

11

STAND, SIDE

367-27311-02-R4

Unavailable

12

BOLT 137273170000

90109-08031-00

$8.49

13

SPRING TENSION 146273160000

90506-29052-00

$11.49

14

NUT

90185-08055-00

$9.49

15

FOOT REST

214-27421-00-00

$37.99

16

COVER, FOOT REST

214-27413-00-00

Unavailable

17

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

18

PIN, COTTER

91490-20025-00

$1.99

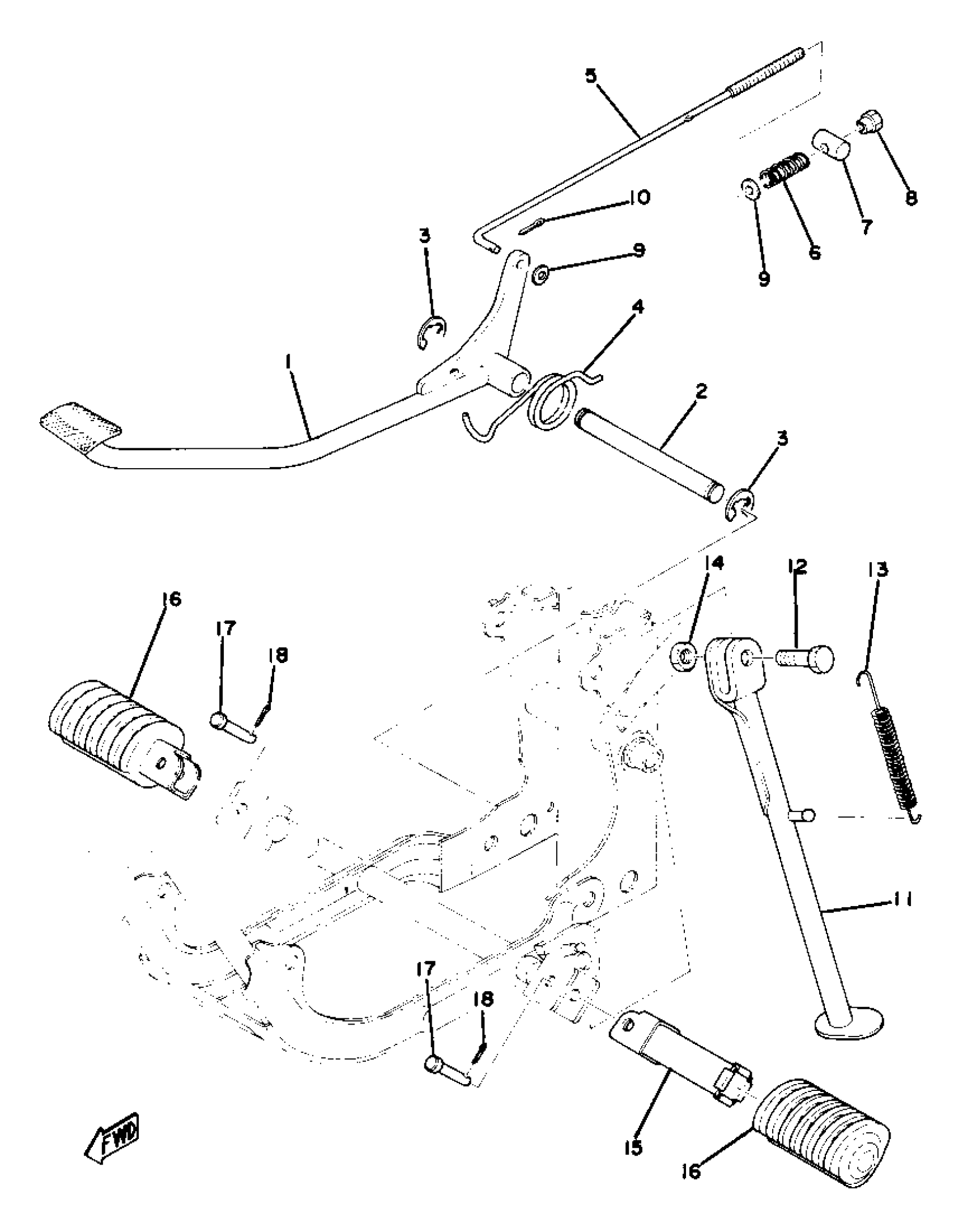

Yamaha GTMXD (GTMX) 1977 STAND - FOOTREST - BRAKE PEDAL Diagram

PEDAL, BRAKE

SHAFT, BRAKE PEDAL

CIRCLIP (122)

SPRING 1832721600

ROD, BRAKE

SPRING, (180-27236-00)

PIN 1562723700

NUT (25K)

WASHER, PLAIN (646)

PIN, COTTER

STAND, SIDE

BOLT 137273170000

SPRING TENSION 146273160000

NUT

FOOT REST

COVER, FOOT REST

PIN, CLEVIS (2A6)

PIN, COTTER
