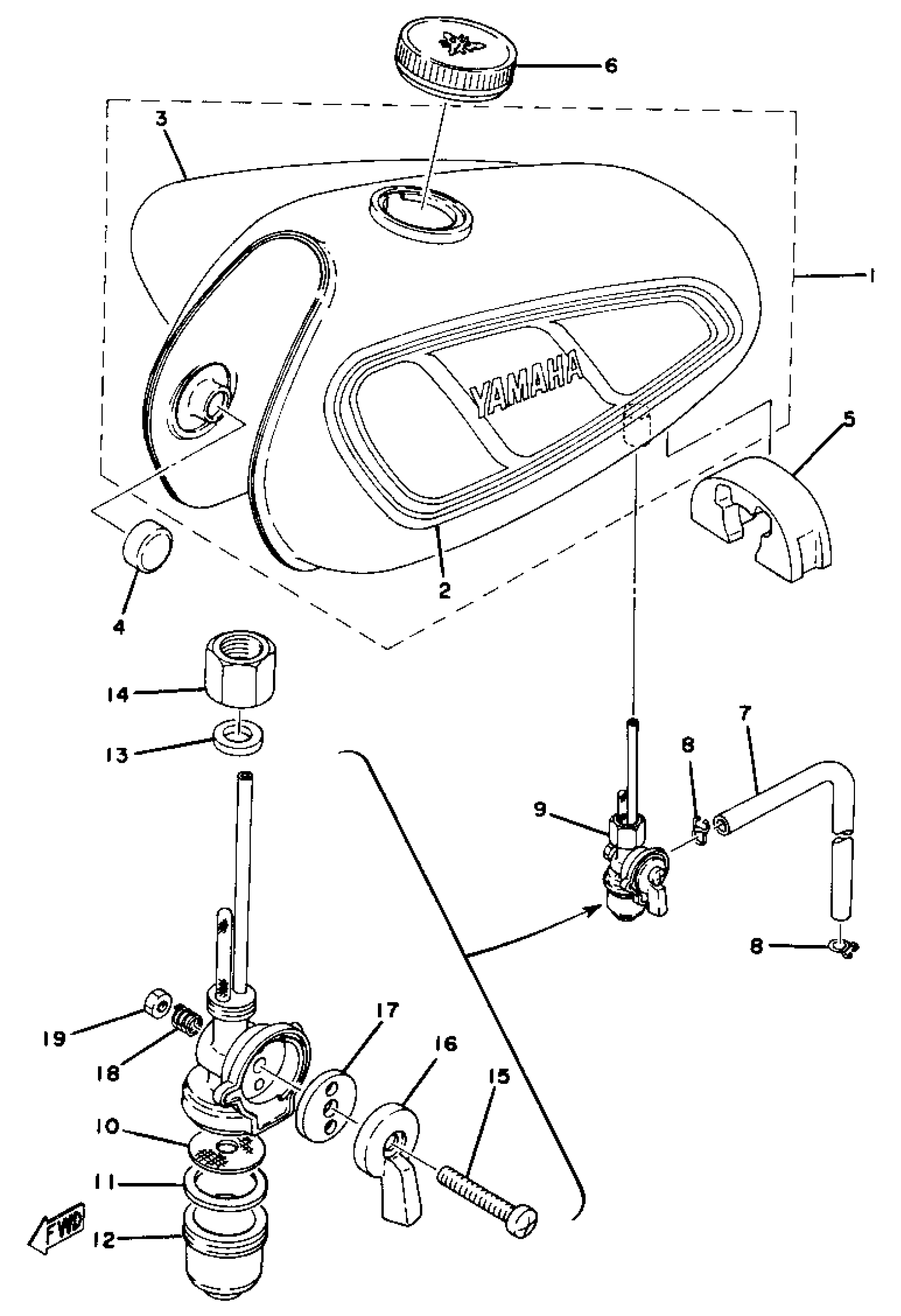

Yamaha GTMXD (GTMX) 1977 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(367-24110-Y0-06)

Unavailable

2

GRAPHIC, FUEL TNK 1

(374-24244-20-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(374-24245-20-00)

Unavailable

4

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

5

DAMPER, LOCATING

353-24182-00-00

$27.99

6

CAP ASSY

122-24610-01-00

$22.99

7

HOSE (L420)

90445-092K1-00

$12.49

8

CLIP 101235600

90467-08003-00

$10.49

9

FUEL COCK ASSY

367-24500-04-00

Unavailable

10

. NET, FILTER 2

355-24515-00-00

Unavailable

11

GASKET

102-24522-02-00

$5.49

12

. CUP, FILTER

122-24521-00-00

Unavailable

13

GASKET, NUT

122-24532-00-00

$8.99

14

. NUT

603-24531-01-00

Unavailable

15

SCREW, PAN HEAD

98517-05030-00

$10.49

16

LEVER, COCK

(355-24524-01-00)

Unavailable

17

VALVE

355-24523-00-00

Unavailable

18

WASHER, WAVE

(355-24518-00-00)

Unavailable

19

NUT(6L2)

95333-08600-00

Unavailable
