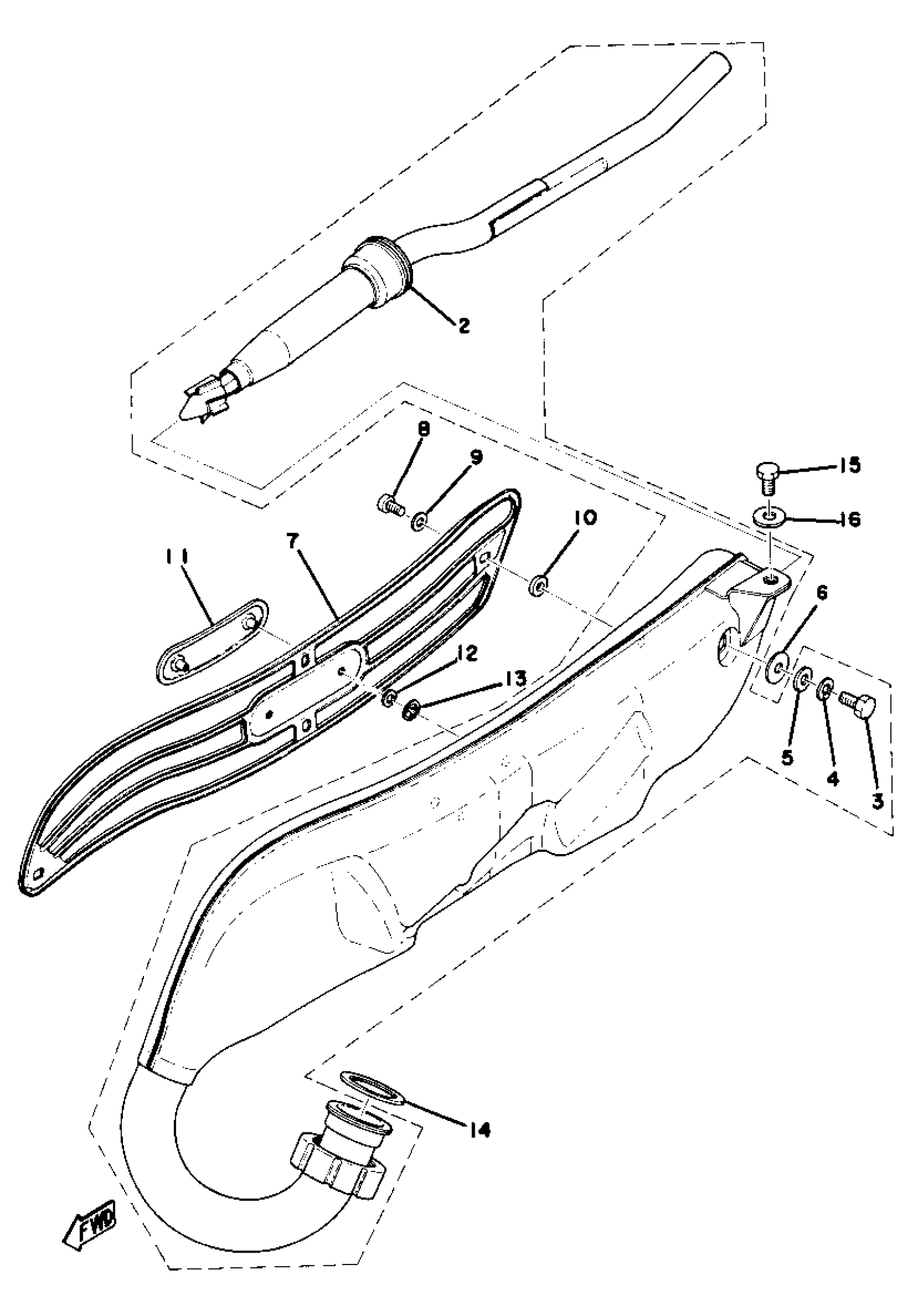

Yamaha GTMXD (GTMX) 1977 EXHAUST Diagram

NO LONGER AVAILABLE

367-14610-31-00

Unavailable

. PIPE, OUTLET

367-14752-30-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLATE

90201-06M08-00

Unavailable

GASKET(1MH)

90430-05223-00

Unavailable

PROTECTOR, MUFF 1

367-14718-30-00

Unavailable

SCREW, BIND(1JK)

98980-06010-00

$9.49

WASHER, PLATE(3MB)

90202-05187-00

$1.38

WASHER, PLATE(3MT)

90202-05188-00

$8.49

EMBLEM, PROTECTOR

367-14729-31-00

Unavailable

WASHER PLATE 174283160000

90202-04003-00

$8.49

NUT SPRING 116283170100

90183-04005-00

$10.49

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99

BOLT(JA9)

90101-08691-00

$4.29

WASHER, PLAIN

92990-08200-00

Unavailable
