Description

Price

1

CRANKCASE 1

(367-15111-01-98)

Unavailable

2

CRANKCASE 2

367-15121-07-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW PAN HEAD

98580-06550-00

$8.49

5

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

6

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

7

BOLT STUD 1091136100

90116-06026-00

$4.29

8

GASKET, CYLINDER

367-11351-01-00

$6.99

9

CYLINDER 1

367-11311-00-00

Unavailable

10

GASKET, CYLINDER HEAD

2F4-11181-00-00

$50.99

11

HEAD, CYLINDER 1

367-11111-01-R4

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

PLUG(12Y)

90338-16029-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

18

BOLT(3JP)

97017-06010-00

Unavailable

19

STOPPER

492-15387-00-00

Unavailable

20

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

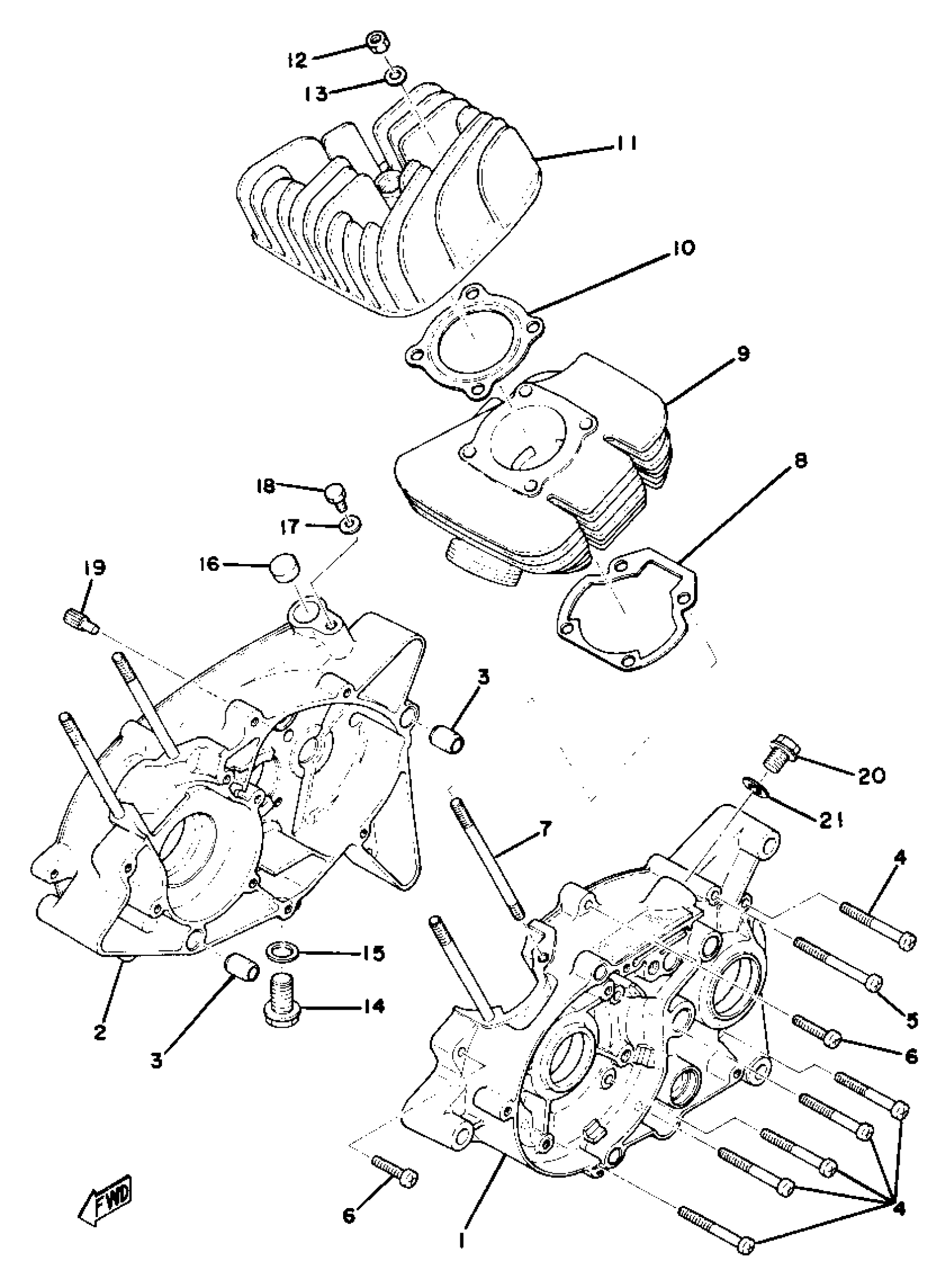

Yamaha GTMXD (GTMX) 1977 CRANKCASE - CYLINDER Diagram

CRANKCASE 1

CRANKCASE 2

PIN, DOWEL

SCREW PAN HEAD

SCREW, PANHED (GC2)

SCREW, PAN HEAD (76T)

BOLT STUD 1091136100

GASKET, CYLINDER

CYLINDER 1

GASKET, CYLINDER HEAD

HEAD, CYLINDER 1

NUT, HEXAGON

YBS66-6 WASHER, PLAIN

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

PLUG(12Y)

YBS66-6 WASHER, PLAIN

BOLT(3JP)

STOPPER

PLUG STRAIGTSCREW 367185880000
