CARBURETOR

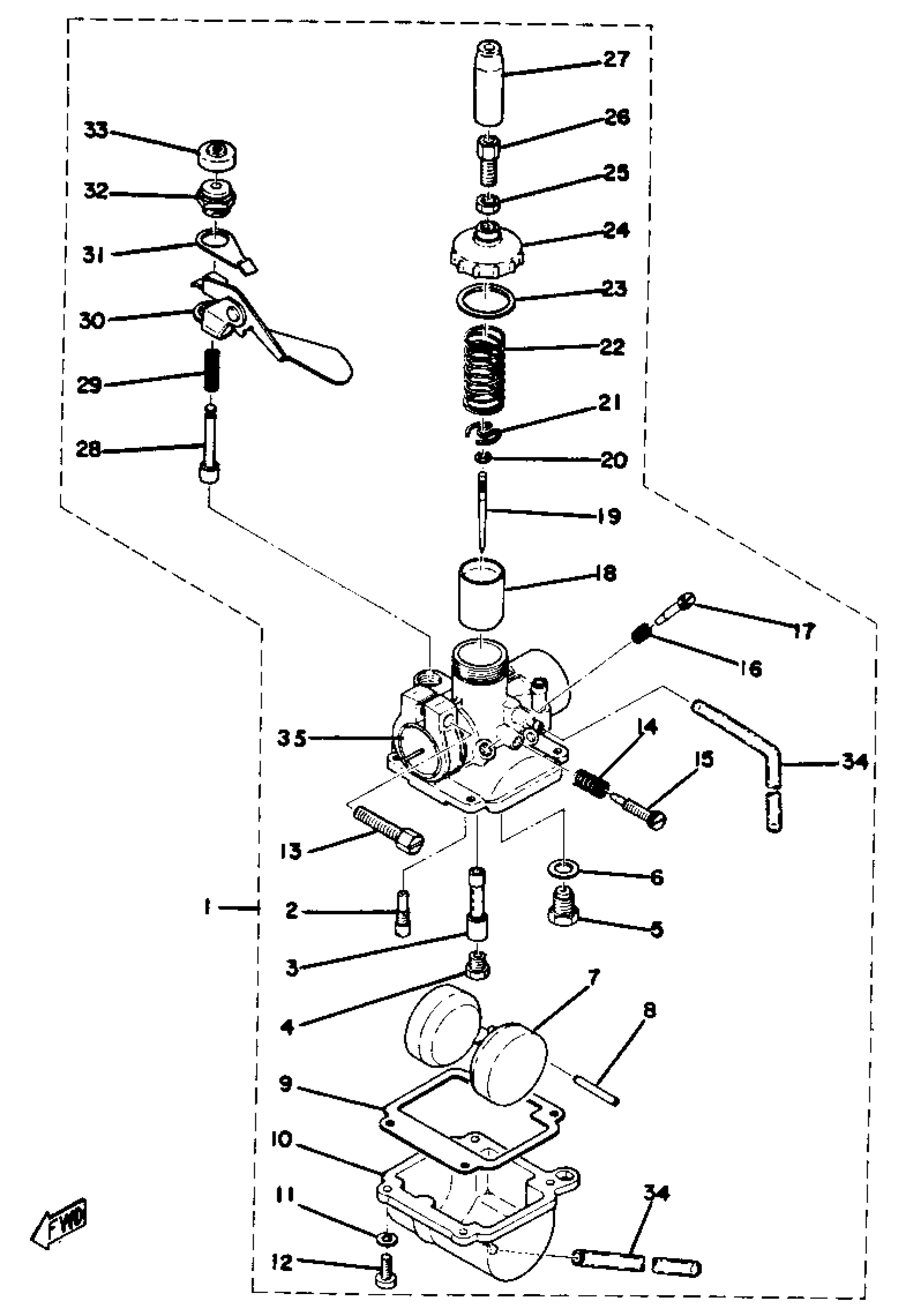

Yamaha GTMXD (GTMX) 1977 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
367-14301-61-00
Unavailable
2
. JET, PILOT #34
367-14342-17-00
Unavailable
3
. NOZZLE, MAIN
288-14341-03-00
Unavailable
4
. JET, MAIN #92
288-14343-46-00
Unavailable
4
. JET, MAIN #94
288-14343-47-00
Unavailable
4
. JET, MAIN #96
288-14343-48-00
Unavailable
7
FLOAT
367-14385-00-00
Unavailable
10
BODY, FLOAT CHAMBER
(367-14381-00-33)
Unavailable
14
. SPRING, PILOT ADJUSTING
646-14212-01-00
Unavailable
15
SCREW, PILOT ADJUSTING
646-14211-02-00
Unavailable
16
. SPRING, AIR ADJUST
367-14337-00-00
Unavailable
17
. SCREW, AIR ADJUSTING
396-14323-00-00
Unavailable
18
. VALVE, THROTTLE 1
367-14312-10-00
Unavailable
19
NEEDLE
29J-1490J-00-00
Unavailable
20
. CLIP
288-14137-00-00
Unavailable
21
. SEAT, SPRING (367-14136-00)
367-14136-02-00
Unavailable
22
. SPRING, THRTL VALVE
367-14331-00-00
Unavailable
23
. GASKET
367-14126-00-00
Unavailable
24
CAP, MIXING CHAMBER
(367-14168-00-33)
Unavailable
25
NUT, CABLE ADJUSTING
85L-14161-00-00
Unavailable
26
. SCREW, CABLE ADJUSTING
288-14124-00-00
Unavailable
27
. CAP
367-14169-00-00
Unavailable
28
PLUNGER,STARTER
29J-1410A-00-00
Unavailable
29
. SPRING, PLUNGER
367-14335-00-00
Unavailable
30
. LEVER, STARTER
367-14375-01-00
Unavailable
31
. STOPPER
367-14377-00-00
Unavailable
32
PLUNGER,STARTER
29J-1410A-00-00
Unavailable
33
COVER, PLUNGER CAP
(367-14373-00-00)
Unavailable
34
PIPE, OVER FLOW
367-14396-00-00
Unavailable
35
GASKET, INSULATING
367-14156-00-00
Unavailable
