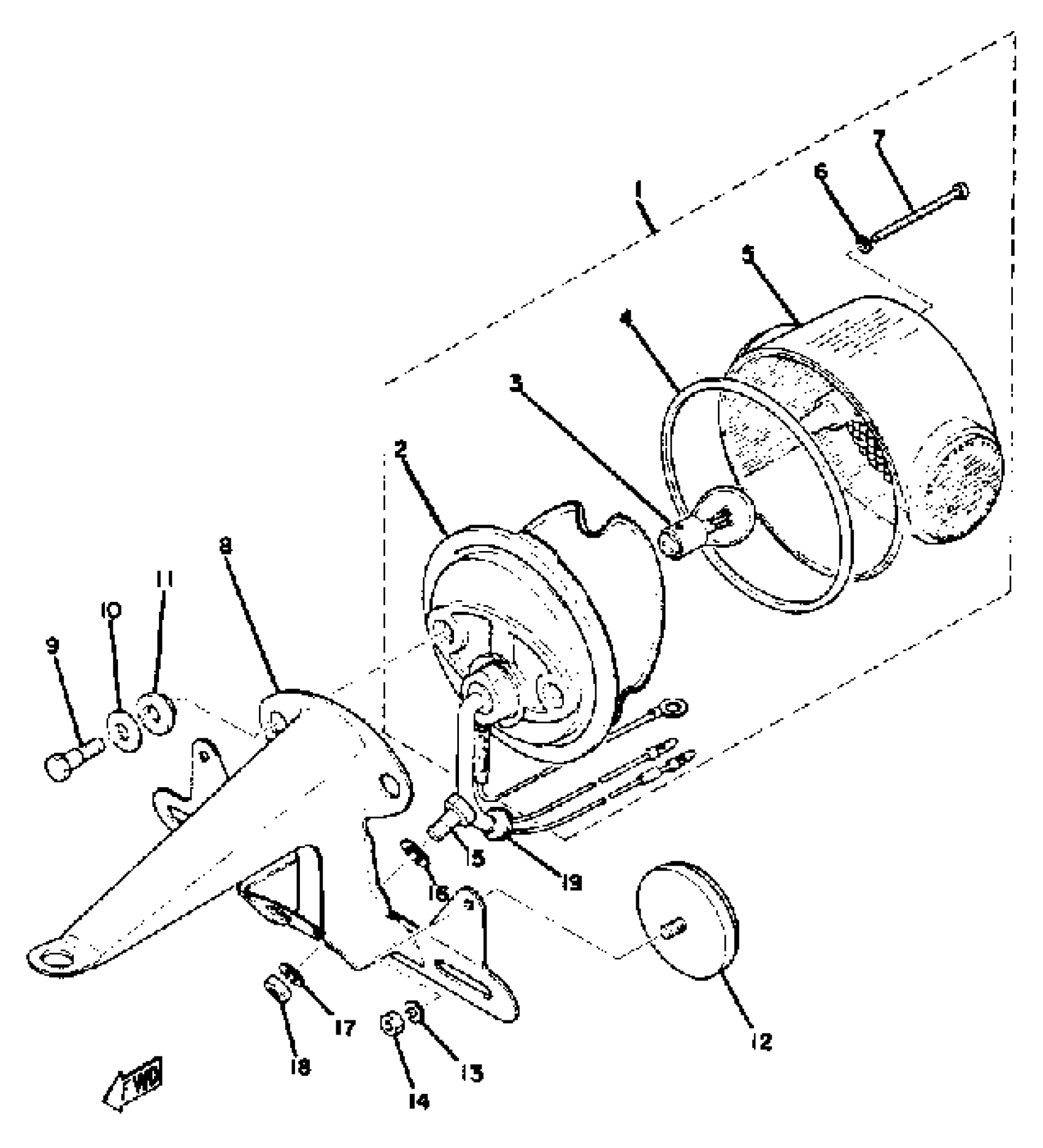

Yamaha GTMXC (GTMX) 1976 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(368-84510-61-00)

Unavailable

2

BASE, TAILLIGHT

(368-84511-60-00)

Unavailable

3

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

4

. GASKET, LENS

275-84523-60-00

Unavailable

5

. LENS, TAIL LIGHT

341-84721-60-00

Unavailable

6

. WASHER

341-84722-60-00

Unavailable

7

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

8

BRACKET, LICENCE

(338-84551-60-35)

Unavailable

9

SCREW

(479-84526-00-00)

Unavailable

10

WASHER, SPECIAL

2H7-84754-00-00

$10.99

11

WASHER, SPECIAL

2H7-84754-00-00

$10.99

12

. DAMPER

275-84527-60-00

Unavailable

12

REFLECTOR, REAR 1

449-85131-02-00

$30.99

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

NUT, HEXAGON (663)

95380-05600-00

$8.49

15

BOLT (661)

97013-06012-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

GROMMET 152845180000

90480-12013-00

Unavailable
